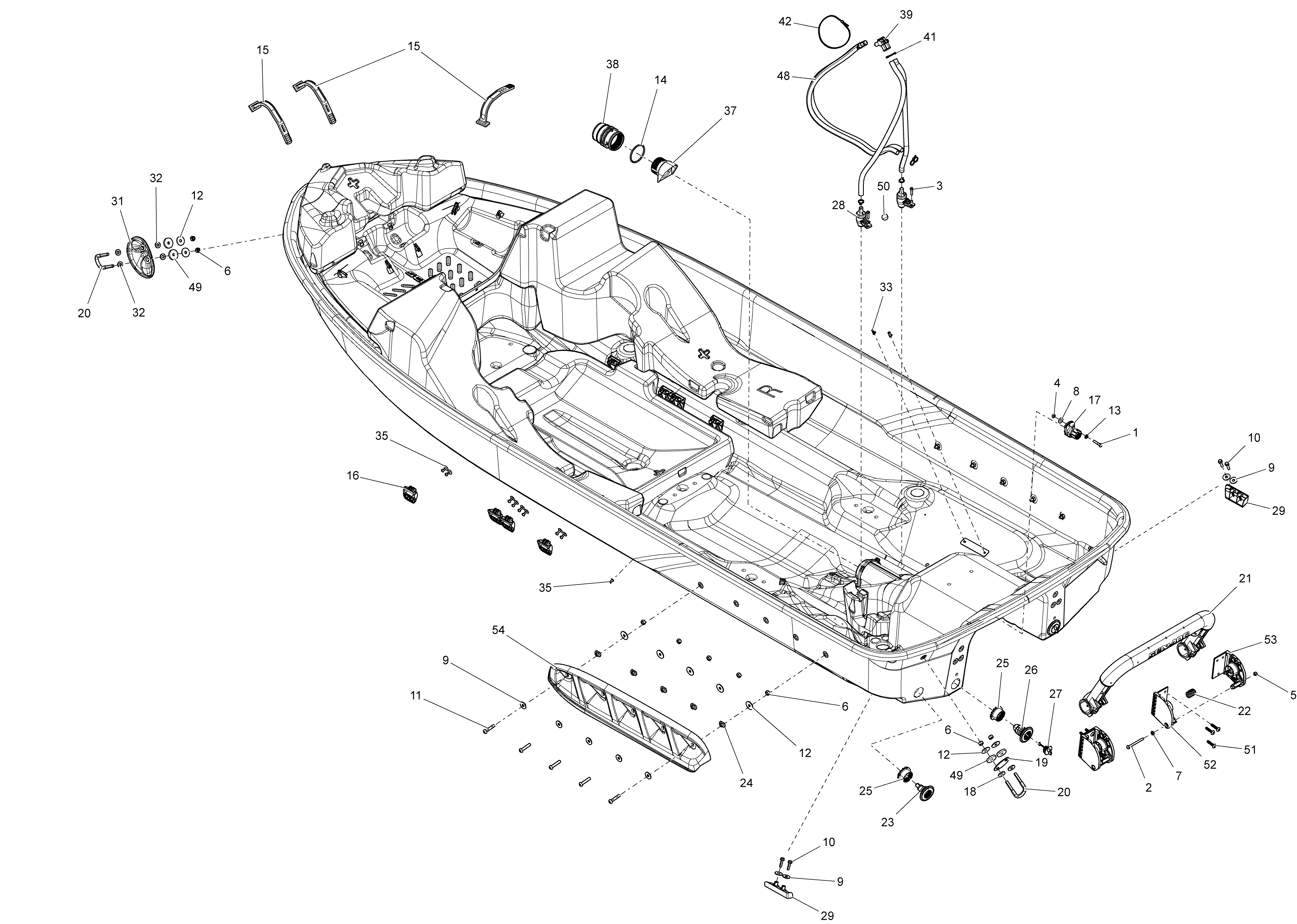

09- Hull для BRP Wake - 2016
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
12250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13250200114 Sealing WasherSealing Washer
-
14267000477 O-RingO-Ring
-
15269500408 StrapStrap
-
16270000933 Strap RetainingStrap Retaining
-
17277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
18279000164 Flat WasherFlat Washer
-
19291001386 Finition Plate, BlackFinition Plate, Black
-
20292000933 U-ClampU-Clamp
-
21292001204 Overmolded BarOvermolded Bar
-
22292001259 SpringSpring
-
23292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
24292001349 Spacer SponsonSpacer Sponson
-
25292001371 BushingBushing
-
26292001580 Drain Ass'yDrain Ass'y
-
27292001583 Plug Ass'yPlug Ass'y
-
28292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
29292001812 RH Trim TabRH Trim Tab
-
29292001811 LH Trim TabLH Trim Tab
-
31292001837 Black ShellBlack Shell
-
32293050001 Flat WasherFlat Washer
-
33293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
35293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293450335 Hull InsertHull Insert
-
38293450339 Hull InsertHull Insert
-
39293710152 Fitting Elbow 90°Fitting Elbow 90°
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
48275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
49293830037 Rubber WasherRubber Washer
-
50293830080 Floating BallFloating Ball
-
51250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
52292001509 A Section SupportA Section Support
-
53292001510 B Section SupportB Section Support
-
54292001878 RH SponsonRH Sponson
-
54292001877 LH SponsonLH Sponson
