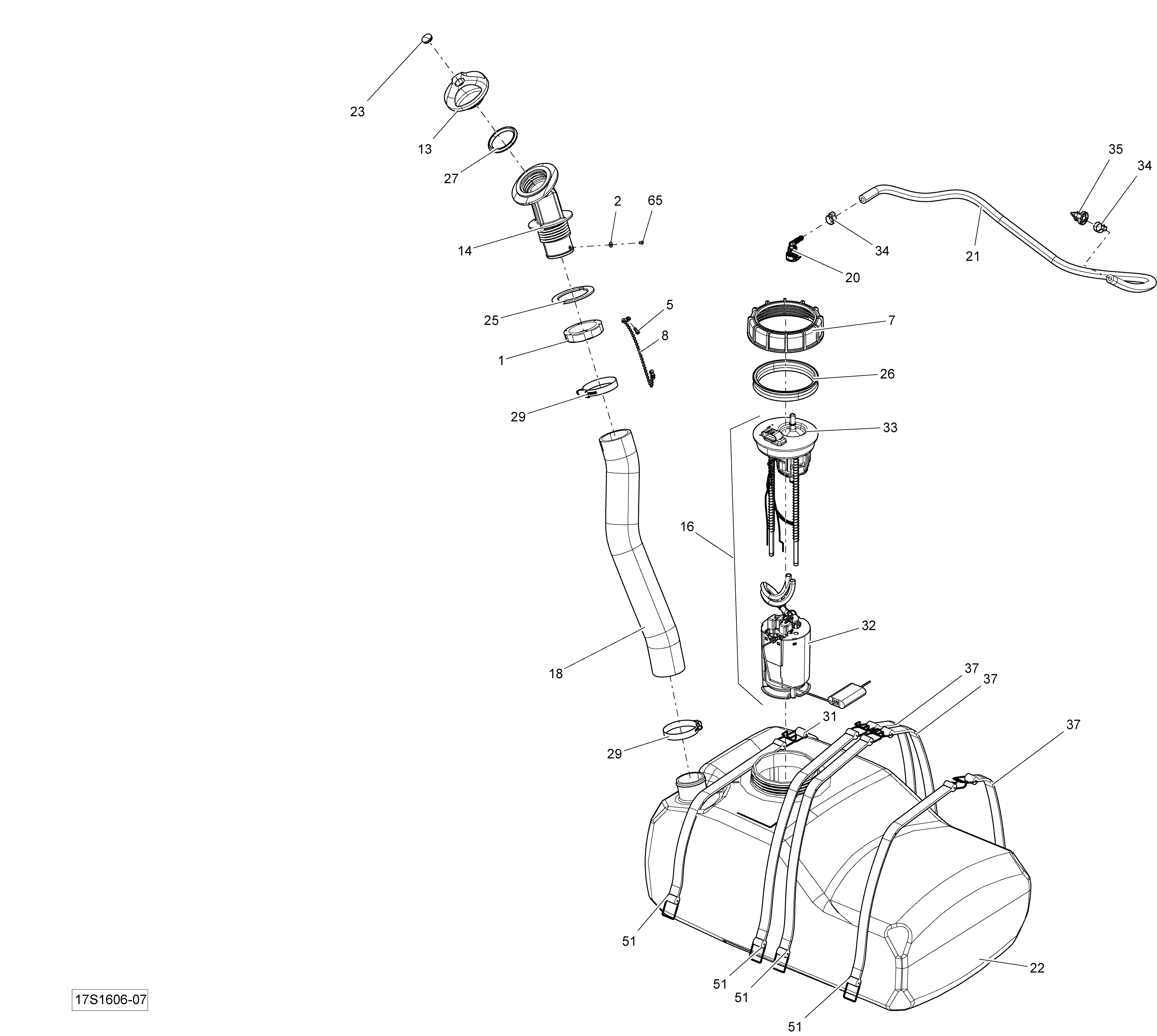

02- Fuel System для BRP Wake - 2016
-
№АртикулНазвание
-
1211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
2234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5241140060 Screw K40 X 10Screw K40 X 10
-
6250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
7250100062 Special Nut M130Special Nut M130
-
8275500507 Fuel Cap ChainFuel Cap Chain
-
9275500783 Fuel Tank Ass'yFuel Tank Ass'y
-
10275500757 Filler Neck, InteriorFiller Neck, Interior
-
12275500832 Fuel Cap Ass'yFuel Cap Ass'y
-
13275500833 Fuel Cap Ass'yFuel Cap Ass'y
-
14275500845 Filler NeckFiller Neck
-
15275500848 Fuel Filler NeckFuel Filler Neck
-
16275500850 Fuel Pump Ass'yFuel Pump Ass'y
-
17275500917 HoseHose
-
18275500918 HoseHose
-
19275500919 HoseHose
-
20275500921 Quick DisconnectQuick Disconnect
-
21296000331 BoyauBoyau
-
22275500944 Tank-FuelTank-Fuel
-
23293000034 Snap Cap, BlackSnap Cap, Black
-
24293150032 Pop Rivet 1/8''Pop Rivet 1/8''
-
25293250029 GasketGasket
-
26293250173 GasketGasket
-
27293250285 GasketGasket
-
28293300139 X-RingX-Ring
-
29293650081 Norma ClampNorma Clamp
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31293850087 Fuel Tank StrapFuel Tank Strap
-
32275500780 Sensor LeverSensor Lever
-
33270600108 Fuel FilterFuel Filter
-
34293650053 Crimp ClampCrimp Clamp
-
35293710105 Elbow Fitting 90°Elbow Fitting 90°
-
37293850093 StrapStrap
-
46293850094 Fuel Tank StrapFuel Tank Strap
-
51293850101 Fuel Tank StrapFuel Tank Strap
-
63293850095 Fuel Tank StrapFuel Tank Strap
-
65390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
68415080000 Tubing 16 mmTubing 16 mm
