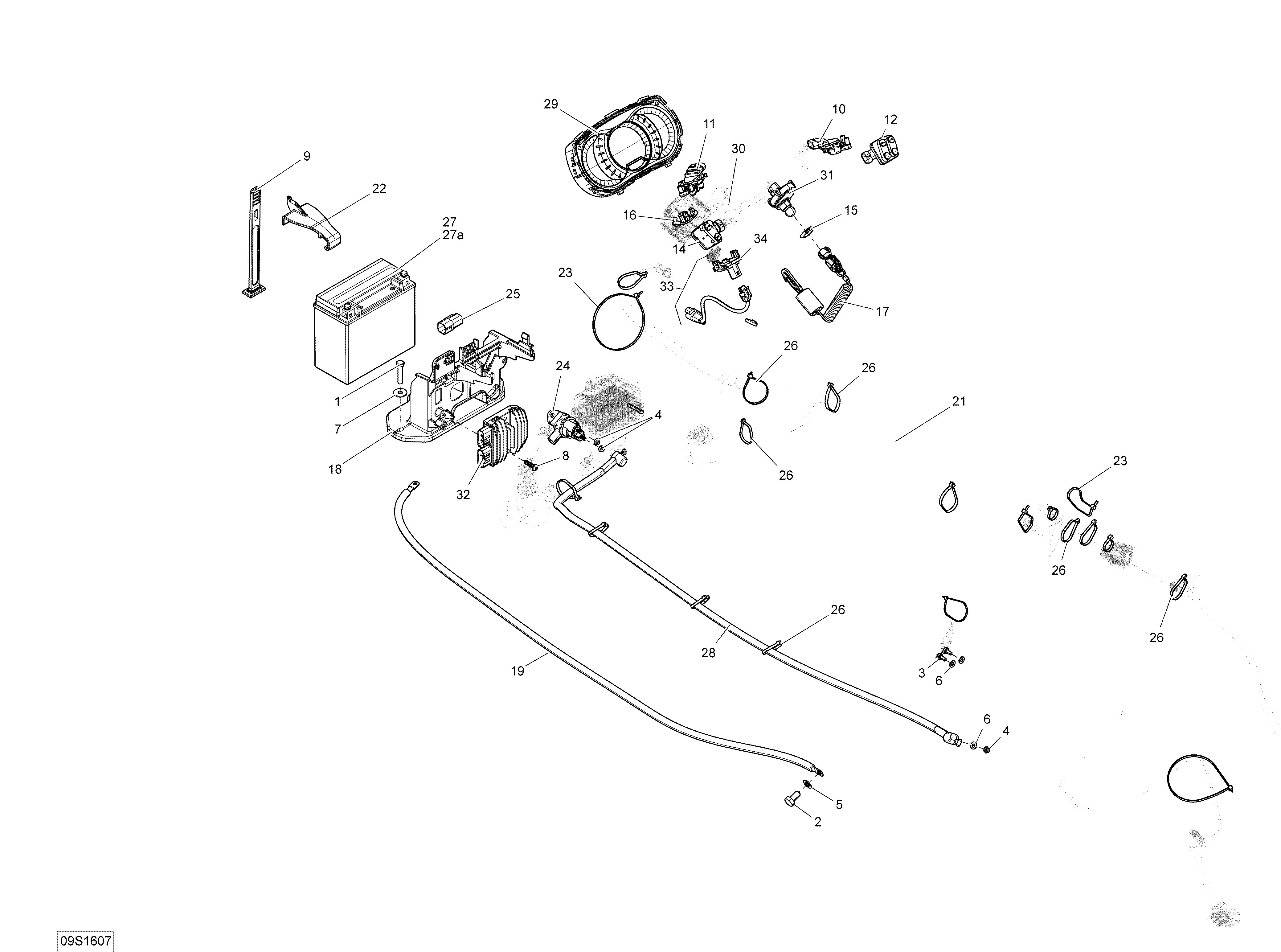

10- Electrical System - для BRP Wake - 2016
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
9269500408 StrapStrap
-
10278002283 RH Throttle SensorRH Throttle Sensor
-
11278002284 LH Throttle SensorLH Throttle Sensor
-
12278002602 SwitchSwitch
-
14278002768 SwitchSwitch
-
15278002963 Safety NutSafety Nut
-
16278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
17278003400 Anti-Theft Tether CordAnti-Theft Tether Cord
-
18278003136 Batt. SupportBatt. Support
-
19278003270 Battery Ground CableBattery Ground Cable
-
21278003336 Wiring HarnessWiring Harness
-
22278003359 ClipClip
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24278003012 Starter RelayStarter Relay
-
25278002704 Diagnostic ConnectorDiagnostic Connector
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
27a250000282 Battery Bolt KitBattery Bolt Kit
-
28278003370 Cable-StarterCable-Starter
-
29278003376 LCD GaugeLCD Gauge
-
30278003262 Steering Harness Ass'ySteering Harness Ass'y
-
31515178049 DESS SwitchDESS Switch
-
32710001103 Voltage RegulatorVoltage Regulator
-
33278003009 O.T.A.S. Sensor Ass'yO.T.A.S. Sensor Ass'y
-
34278003008 O.T.A.S. SensorO.T.A.S. Sensor
