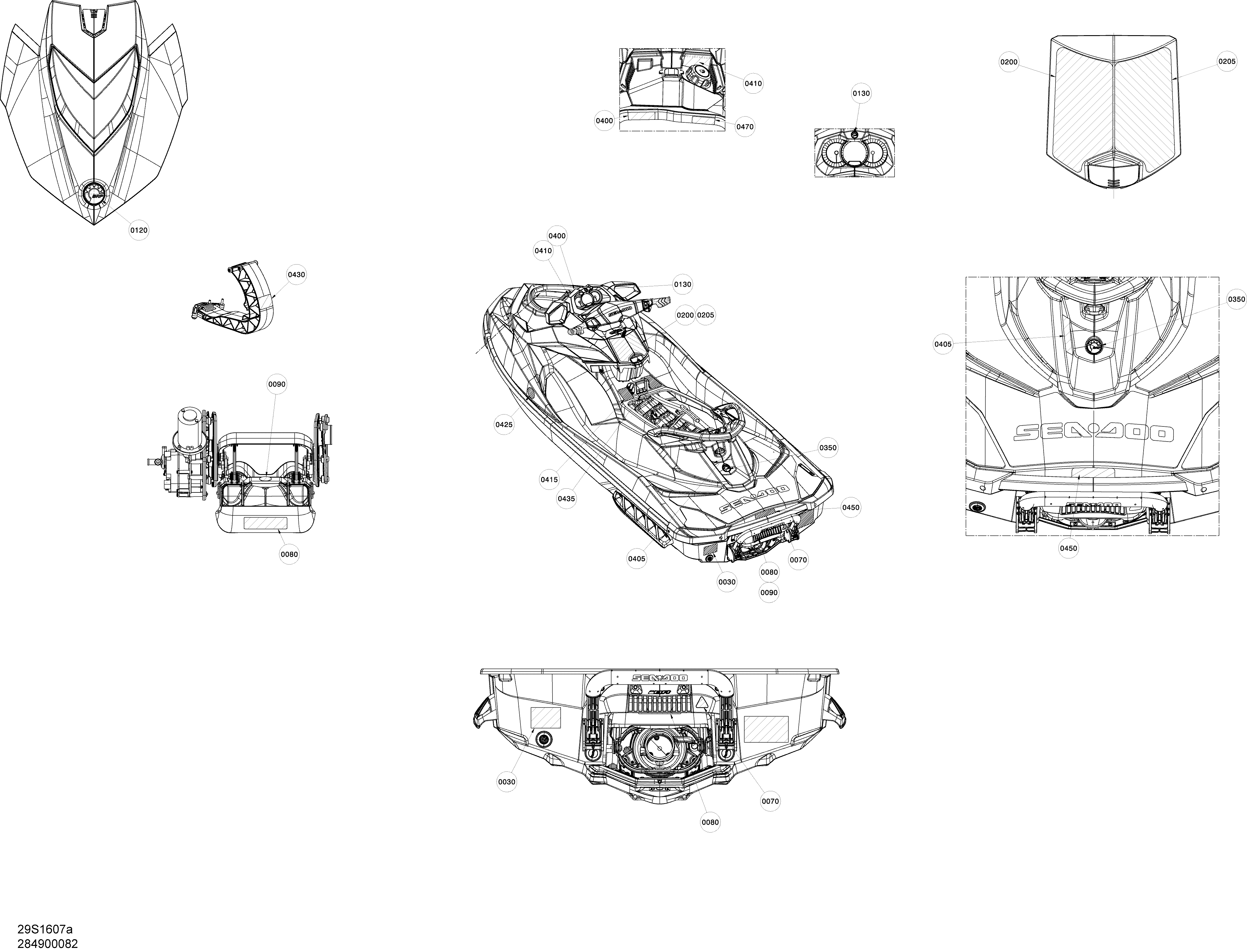

09- Decals - A для BRP Wake - 2016
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219904804 Pictogram Foot Gate LabelPictogram Foot Gate Label
-
0120516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
0130516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
0200219904484 Warning LabelWarning Label
-
0205219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
0350516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219904272 Decal, ExemptionDecal, Exemption
-
0410219903501 Warning Decal, FuelWarning Decal, Fuel
-
0415219904829 Engine Oil LabelEngine Oil Label
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0430219903502 Warning Decal, StorageWarning Decal, Storage
-
0435219903132 Caution Decal, SecurityCaution Decal, Security
-
0450219904576 Decal Warning, Re-BoardDecal Warning, Re-Board
-
0470219903127 Notice Decal, Gasoline-OctaneNotice Decal, Gasoline-Octane
