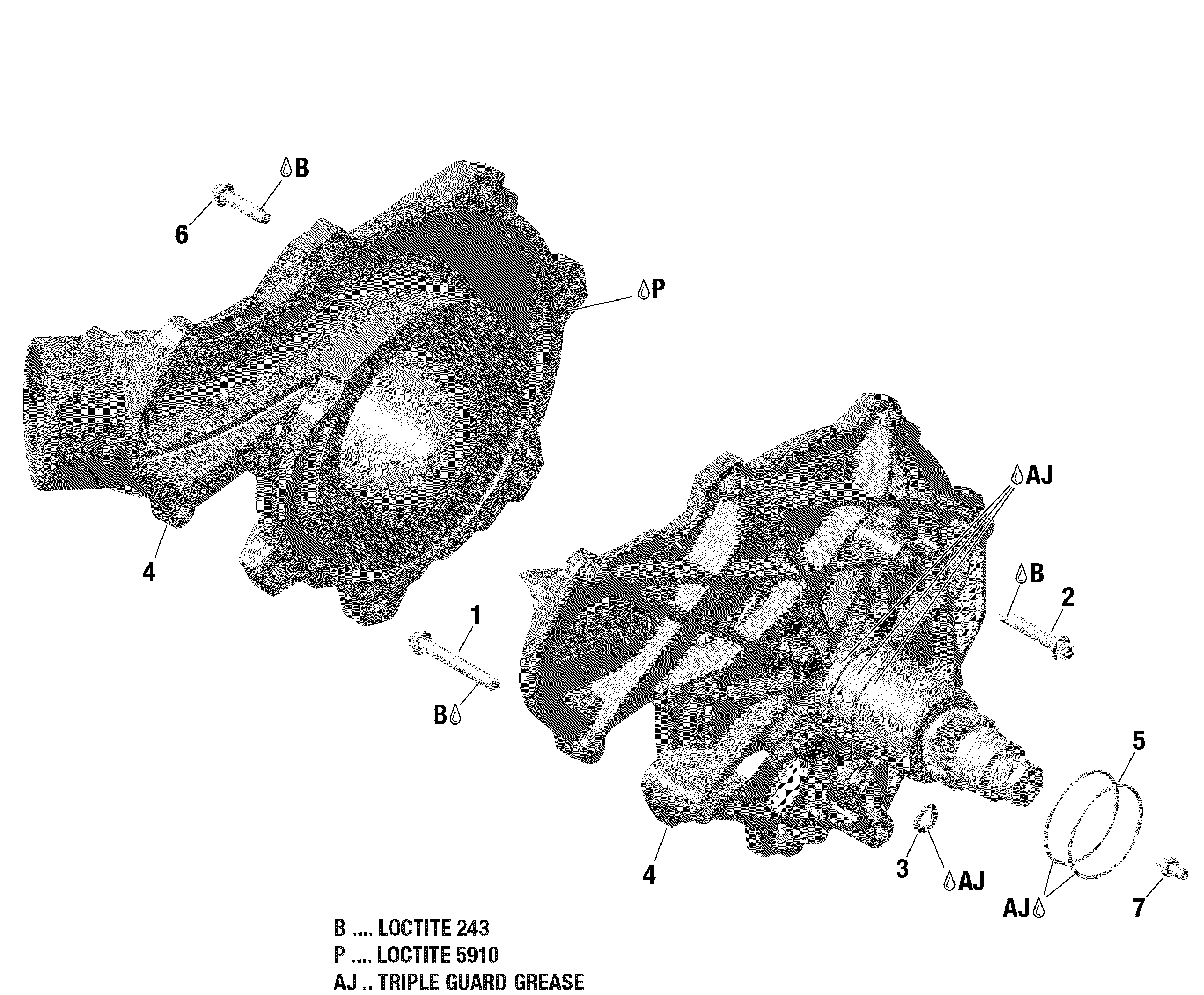

02- Supercharger - RXP для BRP 001 - RXP 300 - 2019
-
№АртикулНазвание
-
1420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
2420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
3420950860 O-RingO-Ring
-
4>6420893567 Supercharge Ass'ySupercharge Ass'y
-
5420650270 O-RingO-Ring
-
6420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
7420456431 Oil Spraying JetOil Spraying Jet
