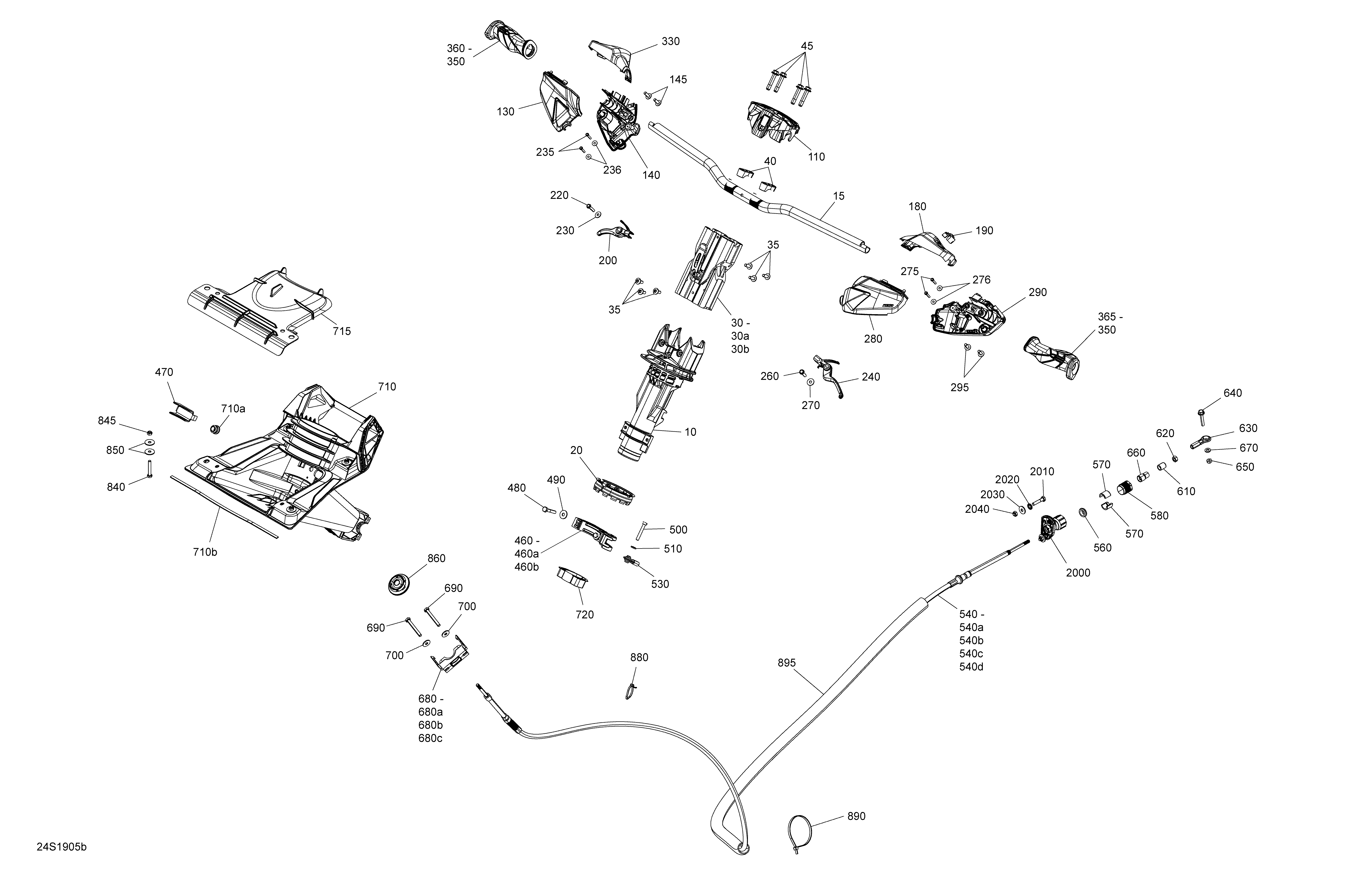

07- Steering для BRP 001 - RXP 300 - 2019
-
№АртикулНазвание
-
10277001998 Steering ColumnSteering Column
-
15277002068 Dragon Red, Handlebar. Model Dragon RedDragon Red, Handlebar. Model Dragon Red
-
15277002069 Neon Yellow, Handlebar. Model Neon YellowNeon Yellow, Handlebar. Model Neon Yellow
-
20277001874 Wear RingWear Ring
-
30277002093 Adjustable Riser BlockAdjustable Riser Block
-
30e506153045 Compression BlocCompression Bloc
-
30f506152820 SpringSpring
-
35250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
40506152751 Steering SupportSteering Support
-
45250000834 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
110277002005 Deep Black, Steering PadDeep Black, Steering Pad
-
130277002040 RH Upper HousingRH Upper Housing
-
140277002036 RH Lower HousingRH Lower Housing
-
145250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
180277002037 LH CoverLH Cover
-
190277002052 Stop/Start ButtonStop/Start Button
-
200277001944 Throttle HandleThrottle Handle
-
220211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
230234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
235241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
236234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse HandleReverse Handle
-
260211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
270234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
275241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
276234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
280277002041 LH Upper HousingLH Upper Housing
-
290277002035 LH Lower HousingLH Lower Housing
-
295250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
330277002038 RH CoverRH Cover
-
350277001863 Insert Grip HandleInsert Grip Handle
-
360277001946 Deep Black, Handle Grip RHDeep Black, Handle Grip RH
-
365277001958 Deep Black, Handle Grip LHDeep Black, Handle Grip LH
-
460<460b277001872 Steering Arm Support Ass'y. Includes 460 TO 460bSteering Arm Support Ass'y. Includes 460 TO 460b
-
460b269501166 Nut Housing Ass'yNut Housing Ass'y
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277000775 Ball JointBall Joint
-
540<540d277001578 Steering Cable Ass'y. Includes 540 TO 540dSteering Cable Ass'y. Includes 540 TO 540d
-
540a277000782 Ajustment KnobAjustment Knob
-
540b211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540c277001582 Wiper RodWiper Rod
-
540d277001583 End PieceEnd Piece
-
560293830063 Rubber WasherRubber Washer
-
570277001527 Half RingHalf Ring
-
580277001729 Steering Cable LockSteering Cable Lock
-
585293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
610277001582 Wiper RodWiper Rod
-
620211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
630277000775 Ball JointBall Joint
-
640207663560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
660277001583 End PieceEnd Piece
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680<680b277001655 Thrust Support Ass'y. Includes 680 TO 680bThrust Support Ass'y. Includes 680 TO 680b
-
680b269501166 Nut Housing Ass'yNut Housing Ass'y
-
690207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
700234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
710<710c277001913 Steering Support Ass'y. Includes 710 TO 710cSteering Support Ass'y. Includes 710 TO 710c
-
710b517302716 CapCap
-
710c296000392 SealSeal
-
715293000117 DeflectorDeflector
-
720277001741 Wear RingWear Ring
-
840207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
845232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
850250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
860293720090 Cable GrommetCable Grommet
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
890293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
895276000470 Shield Corrugated 22MM - 1100MMShield Corrugated 22MM - 1100MM
-
2000277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
2010207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2020250200114 Sealing WasherSealing Washer
-
2030234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2040232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
