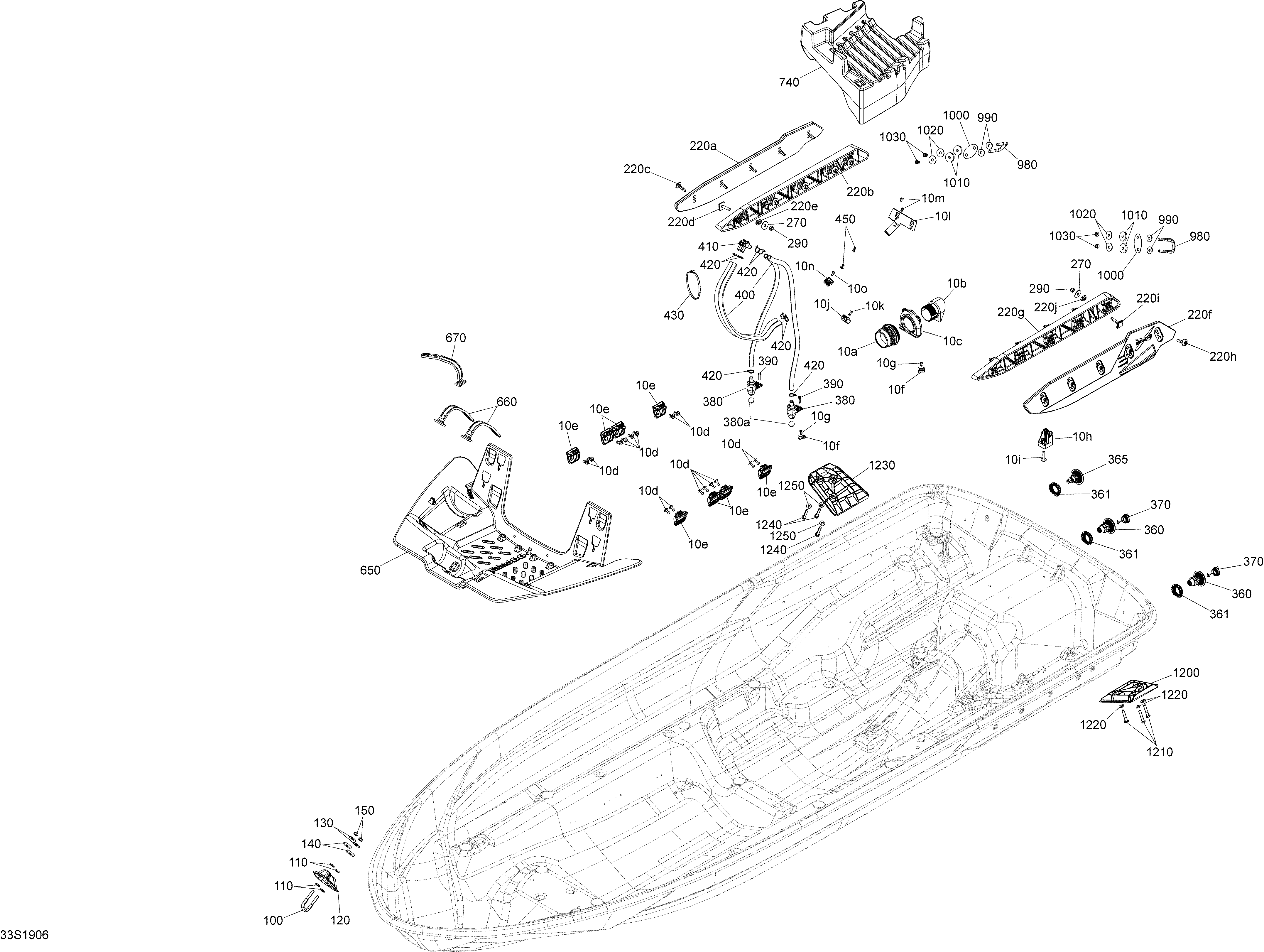

09- Hull для BRP 001 - RXP 300 - 2019
-
№АртикулНазвание
-
10a293450340 Hull InsertHull Insert
-
10b293450335 Hull InsertHull Insert
-
10c293450356 Hull InsertHull Insert
-
10d293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e270000933 Strap RetainingStrap Retaining
-
10f293750026 Tie Rap MountTie Rap Mount
-
10g293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
10h270000988 Strap AnchorStrap Anchor
-
10i250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
10j270000854 Strap AnchorStrap Anchor
-
10k293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
10l270000977 Strap AnchorStrap Anchor
-
10m293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
10n270000854 Strap AnchorStrap Anchor
-
10o293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
120292001837 Black ShellBlack Shell
-
130250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
140293830037 Rubber WasherRubber Washer
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220a292001871 RH SponsonRH Sponson
-
200b292001873 RH Spacer SponsonRH Spacer Sponson
-
220c250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
220d292001471 Square Head StudSquare Head Stud
-
220e292001503 Push NutPush Nut
-
220f292001872 Sponson LHSponson LH
-
220g292001874 Spacer Sponson LHSpacer Sponson LH
-
220h250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
220i292001471 Square Head StudSquare Head Stud
-
220j292001503 Push NutPush Nut
-
270250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
290232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360292001580 Drain Ass'yDrain Ass'y
-
361292001825 Plastic NutPlastic Nut
-
362293800040 Loctite 425Loctite 425
-
365292001317 Drain Neck Ass'yDrain Neck Ass'y
-
370292002022 Plug Ass'yPlug Ass'y
-
380>380a292001636 Bailer Pick-up Ass'y. Includes 380 To 380aBailer Pick-up Ass'y. Includes 380 To 380a
-
380a293830080 Floating BallFloating Ball
-
390211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
400293830198 HoseHose
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
450293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
650292001868 Trunk ShieldTrunk Shield
-
660269500408 StrapStrap
-
670269500408 StrapStrap
-
740292001840 Cooler FloatCooler Float
-
980292000933 U-ClampU-Clamp
-
990279000336 Flat WasherFlat Washer
-
1000291001386 Black Finition PlateBlack Finition Plate
-
1010293830037 Rubber WasherRubber Washer
-
1020250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1030232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1200292001430 Trim Tab LHTrim Tab LH
-
1210207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
1220293050001 Flat WasherFlat Washer
-
1230292001431 TrimTab RHTrimTab RH
-
1240207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
1250293050001 Flat WasherFlat Washer
