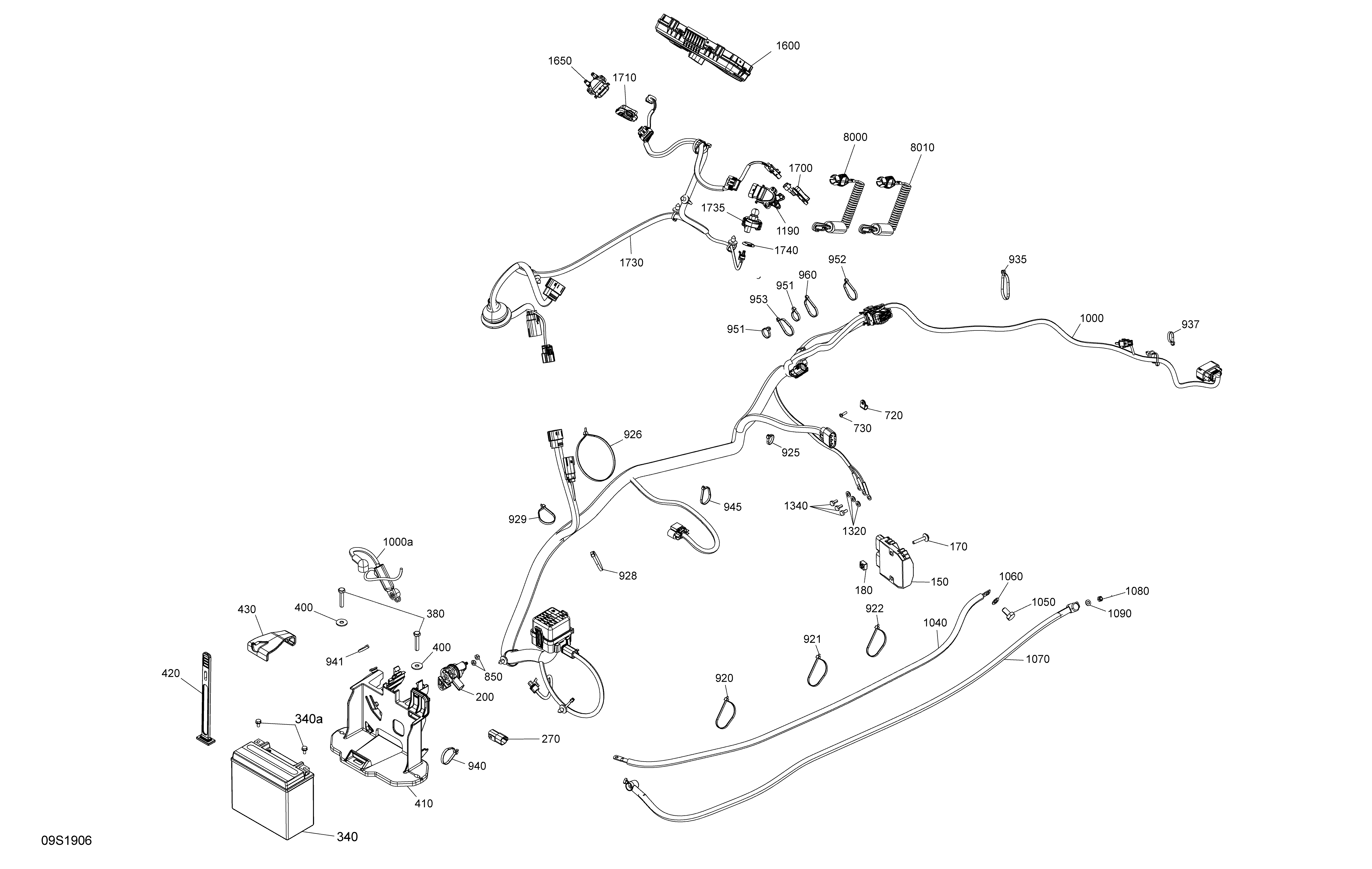

10- Electrical System для BRP 001 - RXP 300 - 2019
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
170250000969 Hex Screw SEMS M6X35, SSHex Screw SEMS M6X35, SS
-
180269501166 Nut Housing Ass'yNut Housing Ass'y
-
200278003012 Starter RelayStarter Relay
-
270710004904 Connector PlugConnector Plug
-
340>340a410301203 Battery Ass'y, 18 Amperes. Includes 340 TO 340aBattery Ass'y, 18 Amperes. Includes 340 TO 340a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
400234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
410278003671 Batterie SupportBatterie Support
-
420269500408 StrapStrap
-
430278003521 ClipClip
-
720293650257 ClampClamp
-
730250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
920414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
921414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
922414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
926293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
928293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
929293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
935293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
937414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
940414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
941414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
945414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
951414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
952414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
953414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
960414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000>1000a278003706 Wiring Harness Main. Includes 1000 TO 1000aWiring Harness Main. Includes 1000 TO 1000a
-
1000a278003716 Battery CableBattery Cable
-
1040278003270 Battery Ground CableBattery Ground Cable
-
1050207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
1060234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
1070278003370 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1600278003432 Info Gauge CenterInfo Gauge Center
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278003726 Switch Keypad LHSwitch Keypad LH
-
1710278003474 Switch Keypad RHSwitch Keypad RH
-
1730278003551 Steering Harness Ass'ySteering Harness Ass'y
-
1735515178225 DESS Switch, RFIDDESS Switch, RFID
-
1740278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
8000278003401 Safety Lanyard Ass'y, Learning / RFIDSafety Lanyard Ass'y, Learning / RFID
-
8010278003400 Safety Lanyard Ass'y, RFIDSafety Lanyard Ass'y, RFID
