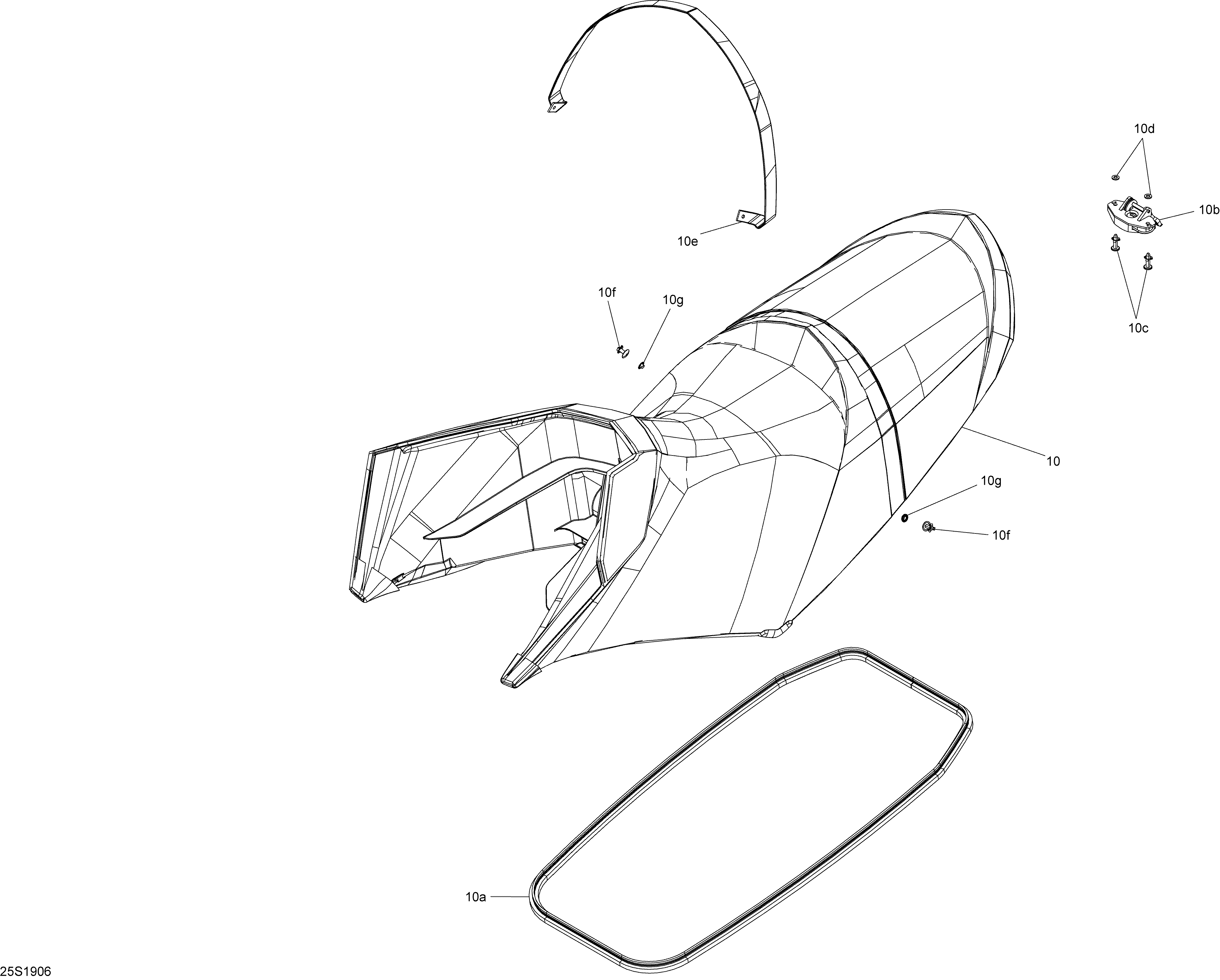

09- Seat для BRP 001 - RXP 300 - 2019
-
№АртикулНазвание
-
10>10g269003238 2 Places Seat Ass'y Can-Am Red B-101. RXP&B-311. Includes 10 TO 10g2 Places Seat Ass'y Can-Am Red B-101. RXP&B-311. Includes 10 TO 10g
-
10a293200124 SealSeal
-
10b269700109 Latch Ass'yLatch Ass'y
-
10c293150151 Rivet 1/4''Rivet 1/4''
-
10d234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10e269003260 Strap Seat Antracite B-181Strap Seat Antracite B-181
-
10f293150067 RivetRivet
-
10g293720067 GrommetGrommet
