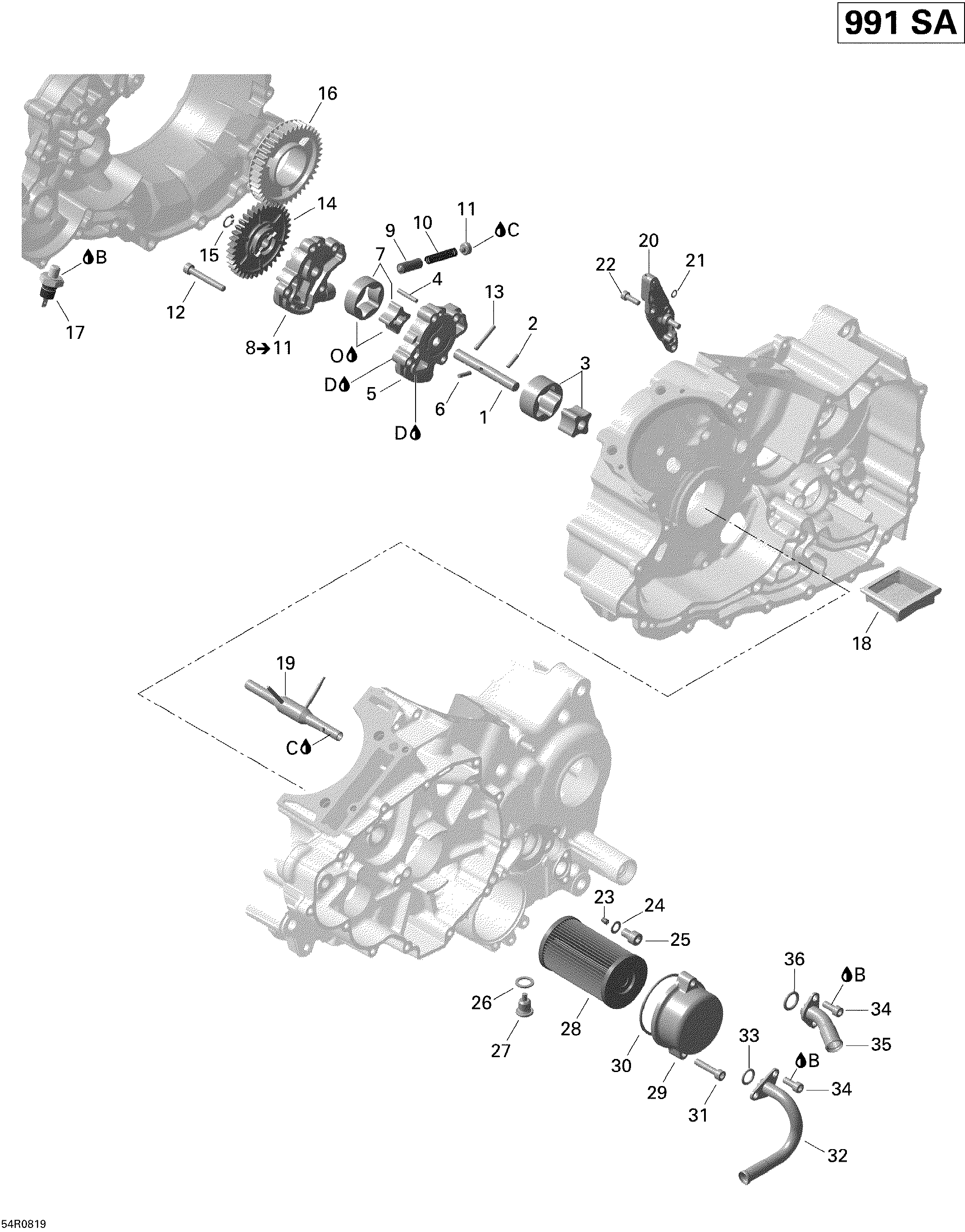

01- Engine Lubrication для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1420220425 Oil Pump ShaftOil Pump Shaft
-
2420232730 Needle PinNeedle Pin
-
3420256680 Oil Pump Rotor, SuctionOil Pump Rotor, Suction
-
4420232970 Needle PinNeedle Pin
-
5420211625 Oil Pump HousingOil Pump Housing
-
6420232730 Needle PinNeedle Pin
-
7420256670 Oil Pump Rotor, PressureOil Pump Rotor, Pressure
-
8420211632 Oil Pump Cover Ass'y. Includes 8 to 11Oil Pump Cover Ass'y. Includes 8 to 11
-
9420256510 Pressure Regulating PistonPressure Regulating Piston
-
10420239449 SpringSpring
-
11420241650 ScrewScrew
-
12205064544 Socket Head Screw M6 X 45Socket Head Screw M6 X 45
-
13420232430 Needle PinNeedle Pin
-
14420634483 Oil Pump Gear, 37 TeethOil Pump Gear, 37 Teeth
-
15420245330 Snap RingSnap Ring
-
16420634476 Oil Gear Pump, 42 TeethOil Gear Pump, 42 Teeth
-
17420956169 Oil Pressure SwitchOil Pressure Switch
-
18420256497 Sieve OilSieve Oil
-
19420656230 Oil TubeOil Tube
-
20420656595 Oil Duct CoverOil Duct Cover
-
21420950420 O-RingO-Ring
-
22420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
23420268755 Gicleur d'HuileGicleur d'Huile
-
24420950141 Sealing RingSealing Ring
-
25420841521 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
26420250640 GasketGasket
-
27420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
28420956745 Oil FilterOil Filter
-
29420610233 Oil Cover FilterOil Cover Filter
-
30420650500 O-RingO-Ring
-
31205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
32420656540 Bent OutletBent Outlet
-
33420950815 O-RingO-Ring
-
34420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
35420656551 Oil Inlet ElbowOil Inlet Elbow
-
36293300024 O-RingO-Ring
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
D413702700 Loctite 515, 50 mlLoctite 515, 50 ml
