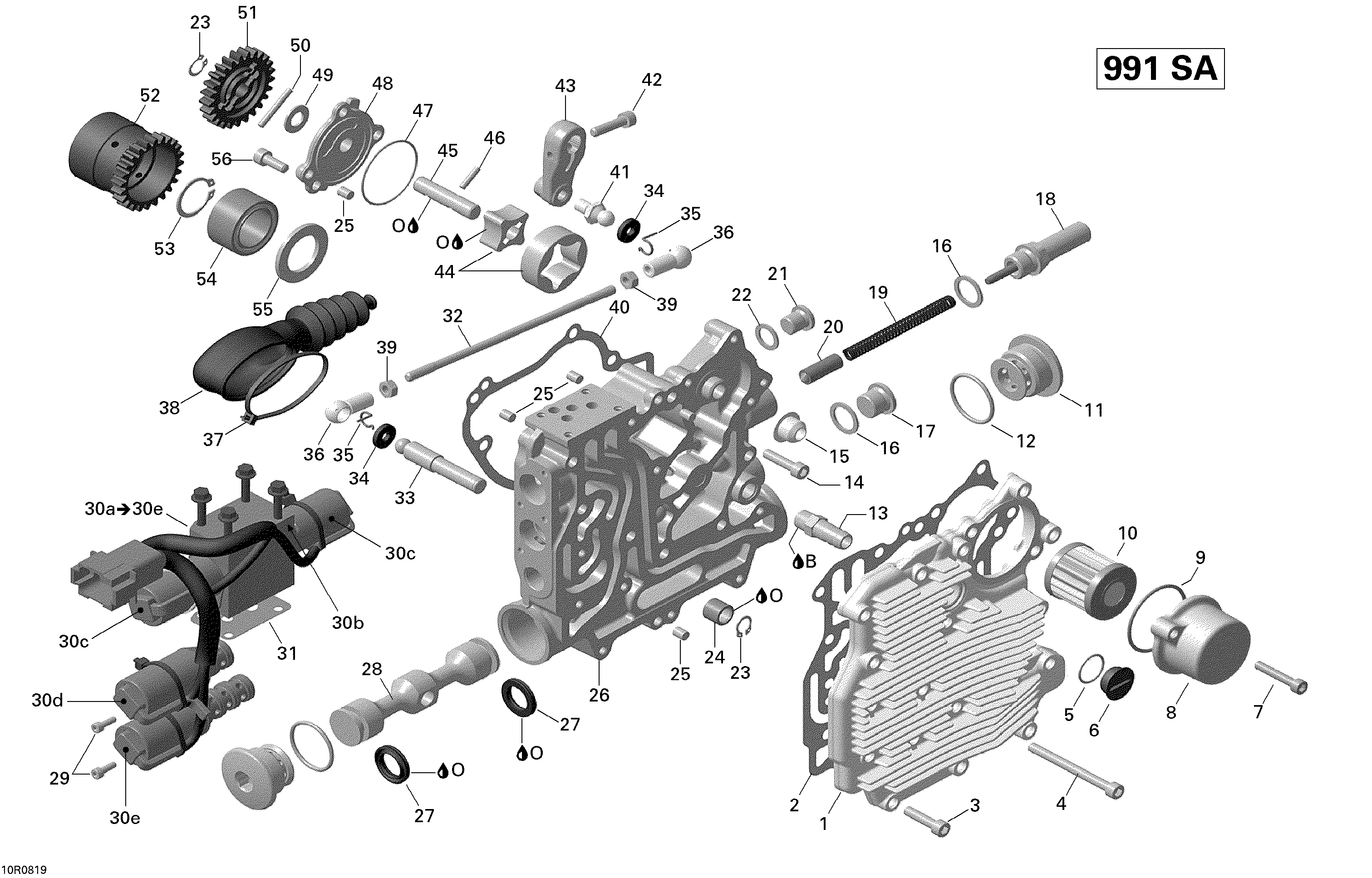

05- Hydraulic Shifting для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1420611500 Hydraulic CoverHydraulic Cover
-
2420430661 GasketGasket
-
3205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
4420241261 Allen Screw, M6 X 65Allen Screw, M6 X 65
-
5420250890 O-RingO-Ring
-
6420241801 Drain PlugDrain Plug
-
7420241811 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8420211506 Filter CoverFilter Cover
-
9420430920 O-RingO-Ring
-
10420256454 Oil FilterOil Filter
-
11420441300 Plug ScrewPlug Screw
-
12420430590 O-ringO-ring
-
13420840445 Nipple 12/8Nipple 12/8
-
14205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
15420647100 SleeveSleeve
-
16420430623 Gasket RingGasket Ring
-
17420240232 Plug Screw M16 X 1.5Plug Screw M16 X 1.5
-
18420441335 Plug ScrewPlug Screw
-
19420238841 SpringSpring
-
20420256510 Pressure Regulating PistonPressure Regulating Piston
-
21420841923 Plug Screw M12Plug Screw M12
-
22420250015 Washer, CopperWasher, Copper
-
23420245330 Snap RingSnap Ring
-
24420232030 Needle BushingNeedle Bushing
-
25420232210 Center PinCenter Pin
-
26420611492 Hydraulic HousingHydraulic Housing
-
27420431340 Piston LiningPiston Lining
-
28420656260 Hydraulic PistonHydraulic Piston
-
29420440291 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
30a420656635 Solenoid Valve Ass'y. Includes 30a to 30eSolenoid Valve Ass'y. Includes 30a to 30e
-
30b420650635 GasketGasket
-
30c420256548 Solenoid ValveSolenoid Valve
-
30d420256562 Solenoid ValveSolenoid Valve
-
30e420256553 Solenoid ValveSolenoid Valve
-
31420650630 Solenoid Valve GasketSolenoid Valve Gasket
-
32420257890 Gear Shift RodGear Shift Rod
-
33420229050 Guide PinGuide Pin
-
34420260940 Gasket RingGasket Ring
-
35420245270 CirclipCirclip
-
36420651490 Ball JointBall Joint
-
37420866717 Tie-RapTie-Rap
-
38420460670 BellowBellow
-
39232061414 Hex. Nut M6Hex. Nut M6
-
40420431270 GasketGasket
-
41420651505 Ball EndBall End
-
42205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
43420257881 Gear Shift LeverGear Shift Lever
-
44420256670 Oil Pump Rotor, PressureOil Pump Rotor, Pressure
-
45420620710 Oil Pump ShaftOil Pump Shaft
-
46420232730 Needle PinNeedle Pin
-
47420831160 O-RingO-Ring
-
48420612140 Oil Pump CoverOil Pump Cover
-
49420627345 Thrust WasherThrust Washer
-
50420232430 Needle PinNeedle Pin
-
51420434610 Oil Pump Gear, 25 TeethOil Pump Gear, 25 Teeth
-
52420434600 Oil Pump Gear, 24 TeethOil Pump Gear, 24 Teeth
-
53420945870 CirclipCirclip
-
54420632640 Needle BearingNeedle Bearing
-
55420227391 Thrust WasherThrust Washer
-
56420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
