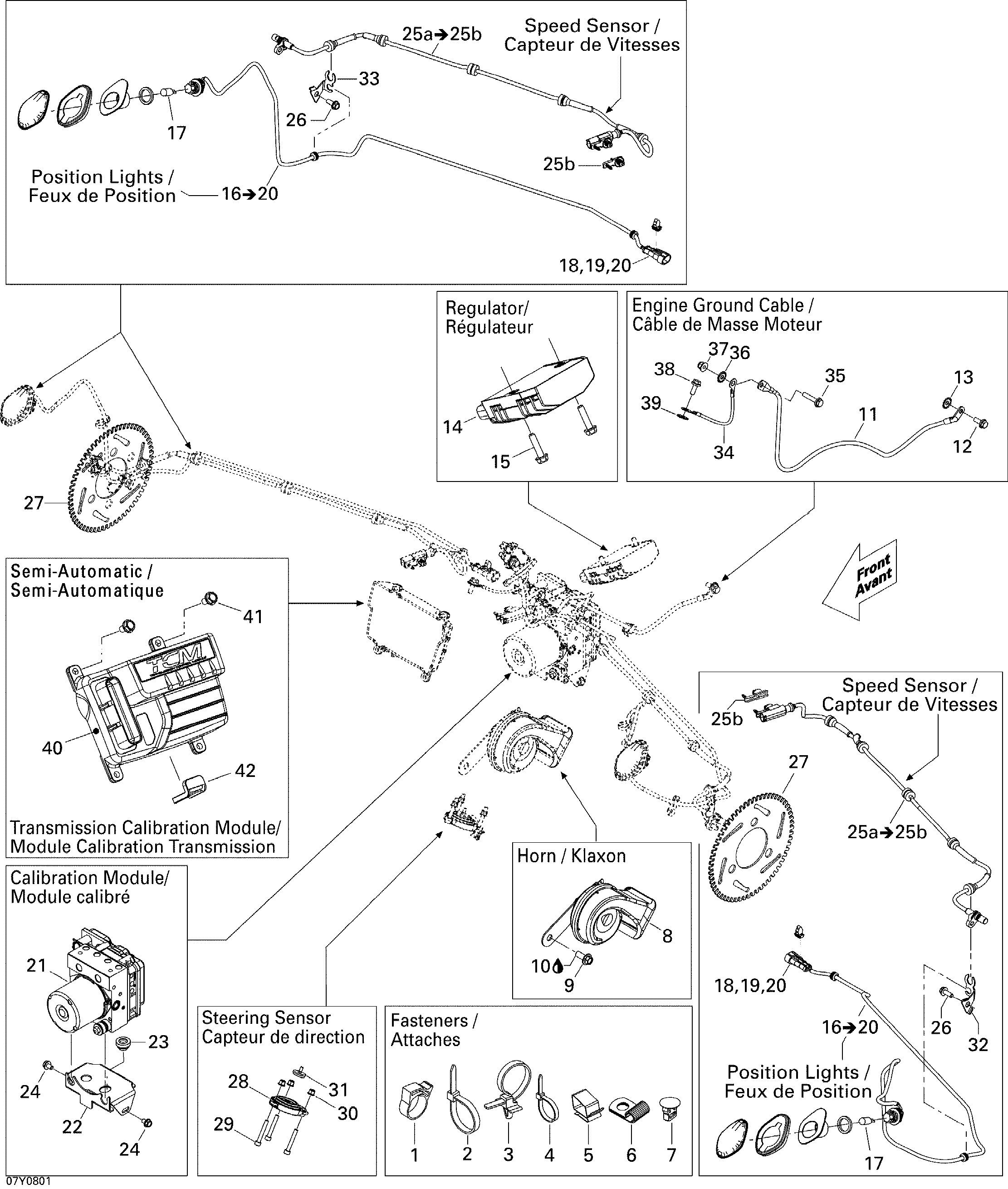

10- Electrical Accessories, Front SA для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8710001449 HornHorn
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11710000177 Engine Ground CableEngine Ground Cable
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
14219800252 Regulator KitRegulator Kit
-
15210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
16710001058 Position Lights. Includes 16 to 20Position Lights. Includes 16 to 20
-
17410922994 Bulb 5W.Bulb 5W.
-
18409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
19409012900 Male TerminalMale Terminal
-
20278001013 Wire SealWire Seal
-
21705600626 Calibration ModuleCalibration Module
-
22705600602 Module BracketModule Bracket
-
23710000938 StopperStopper
-
24210261080 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
25a706200495 Speed Sensor. Includes 25a to 25bSpeed Sensor. Includes 25a to 25b
-
25b219800059 Speed Sensor ClipSpeed Sensor Clip
-
26210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
27705600436 Tone WheelTone Wheel
-
28709400363 Steering Position SensorSteering Position Sensor
-
29205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31709400362 Encoder MagnetEncoder Magnet
-
32710001249 LH Wire SupportLH Wire Support
-
33710001250 RH Wire SupportRH Wire Support
-
34710001165 Ground HarnessGround Harness
-
35207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
36250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
39250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
40710001208 TCM Module. Semi-AutomaticTCM Module. Semi-Automatic
-
41210261280 Hex. Flanged Screw M6 X 12. Semi-AutomaticHex. Flanged Screw M6 X 12. Semi-Automatic
-
42278001166 Module Protector. Semi-AutomaticModule Protector. Semi-Automatic
