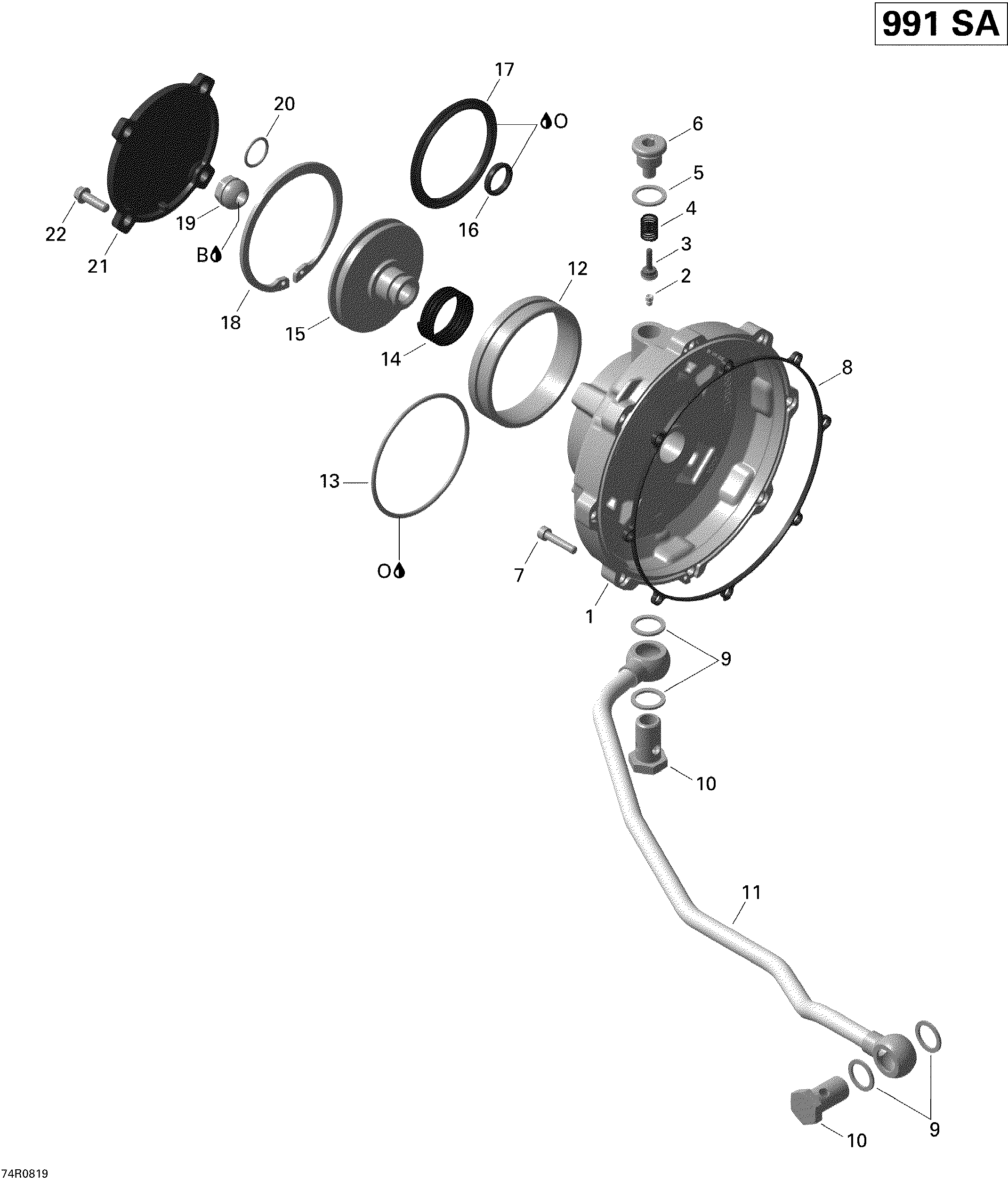

05- Clutch Release Cover для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1420611512 Clutch Release CoverClutch Release Cover
-
2420262050 NozzleNozzle
-
3420656374 Pressure Retaining ValvePressure Retaining Valve
-
4420939480 Compression SpringCompression Spring
-
5420430623 Gasket RingGasket Ring
-
6420242151 Screw PlugScrew Plug
-
7420240186 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
8420651242 GasketGasket
-
9420430623 Gasket RingGasket Ring
-
10420640848 Banjo BoltBanjo Bolt
-
11420656215 Oil Line Ass'yOil Line Ass'y
-
12420656520 Cylinder SleeveCylinder Sleeve
-
13420950980 O-RingO-Ring
-
14420238770 Compression SpringCompression Spring
-
15420656125 Hydraulic PistonHydraulic Piston
-
16420431350 Piston LiningPiston Lining
-
17420431360 Piston LiningPiston Lining
-
18420245230 Retaining RingRetaining Ring
-
19420242641 Nut M10 X 1Nut M10 X 1
-
20420631890 O-RingO-Ring
-
21420626205 Cover, Hydraulic PistonCover, Hydraulic Piston
-
22420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
