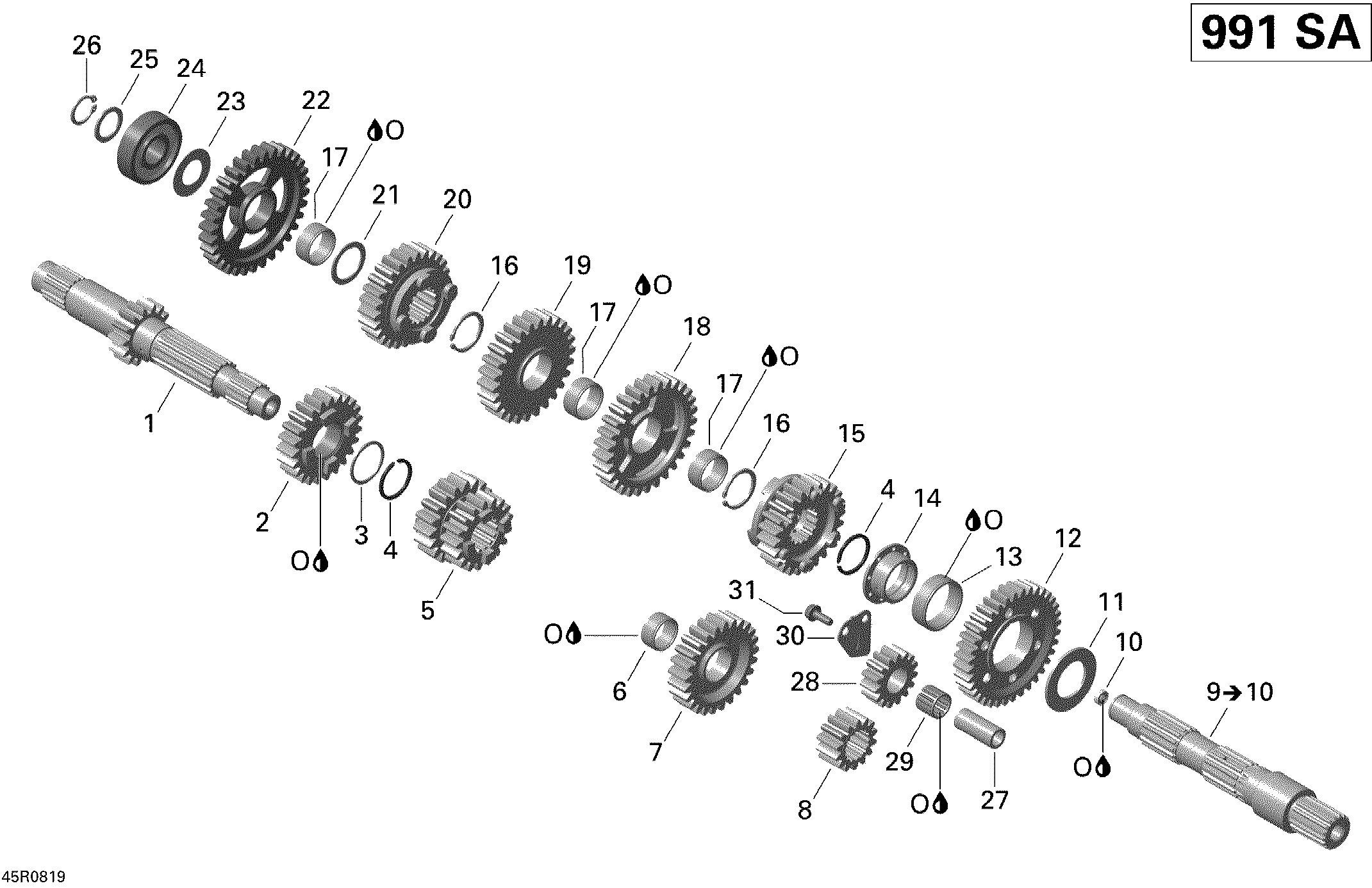

05- Gear Box для BRP Spyder GS 990 Semi-Automatic - 2008
-
№АртикулНазвание
-
1420620630 Clutch ShaftClutch Shaft
-
2420434446 Free Pinion, 23 Teeth Ass'yFree Pinion, 23 Teeth Ass'y
-
3420627120 Thrust WasherThrust Washer
-
4420245815 Snap RingSnap Ring
-
5420434410 Pinion Gear, 17/19 TeethPinion Gear, 17/19 Teeth
-
6420232530 Needle BearingNeedle Bearing
-
7420434461 Free Pinion, 25 TeethFree Pinion, 25 Teeth
-
8420434482 Pinion Gear, 14 TeethPinion Gear, 14 Teeth
-
9420620612 Main Shaft. Includes 9 to 10Main Shaft. Includes 9 to 10
-
10420930500 Oil SealOil Seal
-
11420626380 Thrust RingThrust Ring
-
12420434502 Free Pinion, 36 TeethFree Pinion, 36 Teeth
-
13420632195 Needle CageNeedle Cage
-
14420632530 BushingBushing
-
15420434471 Pinion Gear, 24 TeethPinion Gear, 24 Teeth
-
16420845775 Retaining RingRetaining Ring
-
17420632070 Needle BearingNeedle Bearing
-
18420434421 Pinion Gear, 29 TeethPinion Gear, 29 Teeth
-
19420434431 Pinion Gear, 26 TeethPinion Gear, 26 Teeth
-
20420434451 Pinion Gear, 26 TeethPinion Gear, 26 Teeth
-
21420427106 WasherWasher
-
22420434402 Pinion Gear, 32 TeethPinion Gear, 32 Teeth
-
23420827110 ShimShim
-
24420832144 Ball BearingBall Bearing
-
25420227442 Thrust WasherThrust Washer
-
26420945665 Retaining RingRetaining Ring
-
27420229450 BoltBolt
-
28420434371 Pinion Gear, 15 TeethPinion Gear, 15 Teeth
-
29420432030 Needle CageNeedle Cage
-
30420224740 Locking TieLocking Tie
-
31420240580 Taptite Screw M6 X 16Taptite Screw M6 X 16
