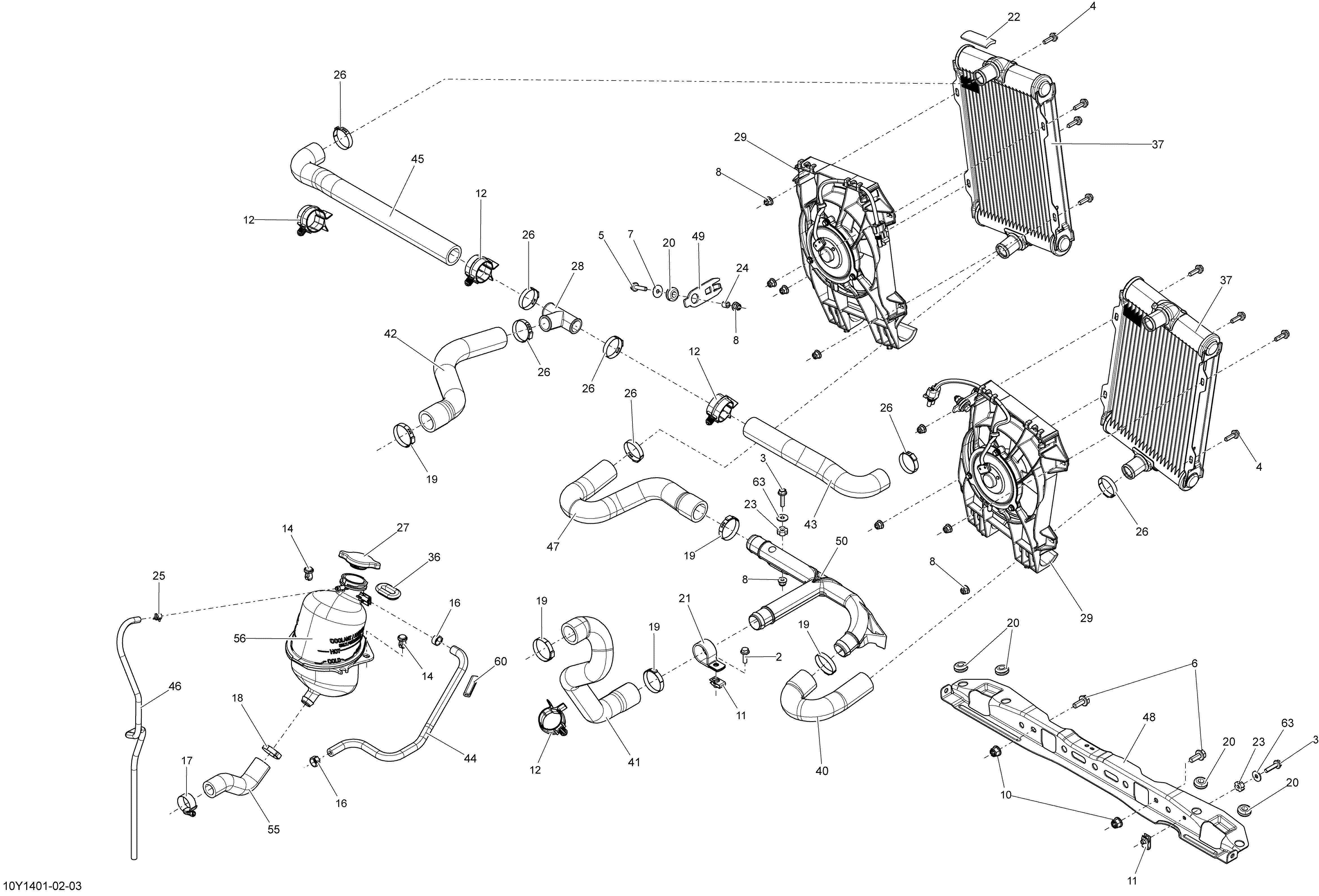

01- Cooling System _10Y1401 для BRP Spyder RT SM6 - 2014
-
№АртикулНазвание
-
2207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
7224060201 Flat WasherFlat Washer
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12275500590 RetainerRetainer
-
14293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
16293650025 Oetiker Gear ClampOetiker Gear Clamp
-
17293650051 Tridon Gear ClampTridon Gear Clamp
-
18293650165 Oetiker ClampOetiker Clamp
-
19293650199 Oetiker ClampOetiker Clamp
-
20293720053 GrommetGrommet
-
21293750035 Open ClampOpen Clamp
-
22293830159 PadPad
-
23293830160 Shock WasherShock Washer
-
24293900105 BushingBushing
-
25414554800 Spring ClampSpring Clamp
-
26509000045 Oetiker Gear ClampOetiker Gear Clamp
-
27509000187 Pressure CapPressure Cap
-
28509000219 T-FittingT-Fitting
-
29509000797 FanFan
-
36705003668 Oblong GrommetOblong Grommet
-
37709200314 RadiatorRadiator
-
40709200319 Formed HoseFormed Hose
-
41709200321 Formed HoseFormed Hose
-
42709200322 Formed HoseFormed Hose
-
43709200323 Formed HoseFormed Hose
-
44709200324 Formed HoseFormed Hose
-
45709200329 Formed HoseFormed Hose
-
46415080200 Hose, PolyurethaneHose, Polyurethane
-
47709200376 Formed HoseFormed Hose
-
48709200400 SupportSupport
-
49709200404 SupportSupport
-
50709200468 ConnectorConnector
-
55709200499 Formed HoseFormed Hose
-
56709200528 Coolant TankCoolant Tank
-
60271001530 TrimTrim
-
63234062410 Flat Washer 6 mmFlat Washer 6 mm
