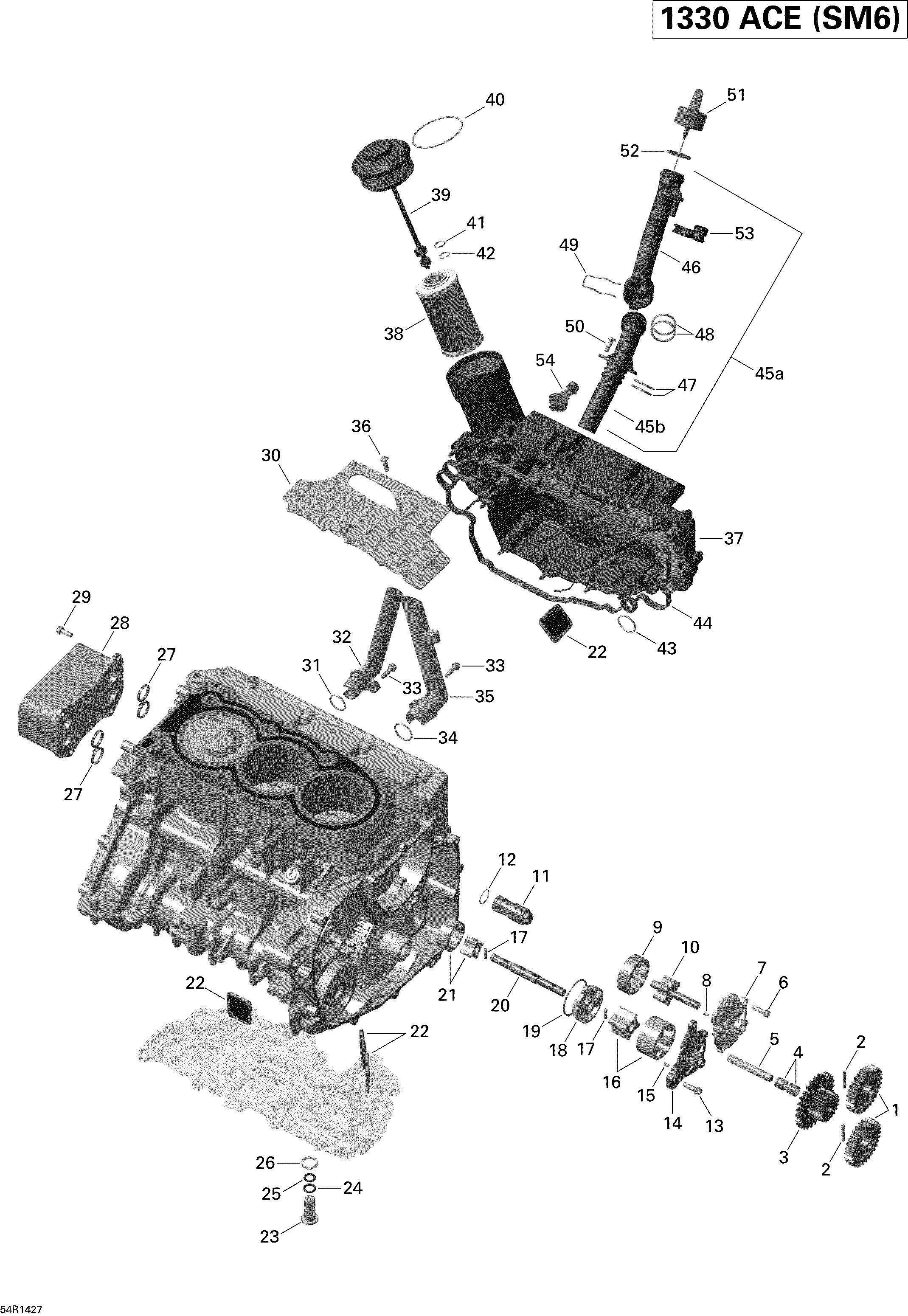

01- Engine Lubrication для BRP Spyder RT SM6 - 2014
-
№АртикулНазвание
-
1420435170 Oil Pump Gear 30 TeethOil Pump Gear 30 Teeth
-
2420232431 Needle PinNeedle Pin
-
3420435165 Intermediate Gear 28\18 Teeth Ass'y. Includes 3 to 4Intermediate Gear 28\18 Teeth Ass'y. Includes 3 to 4
-
4420232031 Needle BushingNeedle Bushing
-
5420229472 Pin CylindricalPin Cylindrical
-
6420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
7420210220 Oil Pump CoverOil Pump Cover
-
8420929075 Needle PinNeedle Pin
-
9420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
10420637077 Shaft And Oil Pump RotorShaft And Oil Pump Rotor
-
11420456140 Pression Regulating Valve Ass'y. Includes 11 to 12Pression Regulating Valve Ass'y. Includes 11 to 12
-
12420230405 O-RingO-Ring
-
13420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
14420210260 Oil Pump CoverOil Pump Cover
-
15420929075 Needle PinNeedle Pin
-
16420256831 Oil Pump RotorOil Pump Rotor
-
17420232731 Needle PinNeedle Pin
-
18420210770 Oil Pump CoverOil Pump Cover
-
19420631830 O-RingO-Ring
-
20420637070 Oil Pump ShaftOil Pump Shaft
-
21420956278 Oil Pump RotorOil Pump Rotor
-
22420656885 Oil SieveOil Sieve
-
23420441681 Screw M14 X 1.5Screw M14 X 1.5
-
24420250460 O-RingO-Ring
-
25420430115 O-RingO-Ring
-
26420430623 Gasket RingGasket Ring
-
27420431711 GasketGasket
-
28420888857 Oil RadiatorOil Radiator
-
29420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
30420201450 BaffleBaffle
-
31420430372 O-RingO-Ring
-
32420210710 Vent HoseVent Hose
-
33420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
34420430783 O-RingO-Ring
-
35420224810 Vent HoseVent Hose
-
36420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
37420893280 Oil Tank Cover Ass'y. Includes 37 to 44Oil Tank Cover Ass'y. Includes 37 to 44
-
38420956743 Oil FilterOil Filter
-
39420210885 Oil Filter Cover Ass'y. Includes 39 to 42Oil Filter Cover Ass'y. Includes 39 to 42
-
40420850482 O-RingO-Ring
-
41420950812 O-RingO-Ring
-
42420650927 O-RingO-Ring
-
43420430783 O-RingO-Ring
-
44420431990 GasketGasket
-
45a420656870 Oil Filler Tube Ass'y. Includes 45a to 49Oil Filler Tube Ass'y. Includes 45a to 49
-
47420631876 O-RingO-Ring
-
48420430140 O-RingO-Ring
-
49420939343 Spring ClipSpring Clip
-
50420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
51420656980 Oil Gauge Ass'y. Includes 51 to 52Oil Gauge Ass'y. Includes 51 to 52
-
52420431790 Gasket RingGasket Ring
-
53420201180 Silent BlockSilent Block
-
54420256917 Oil Pressure SwitchOil Pressure Switch
