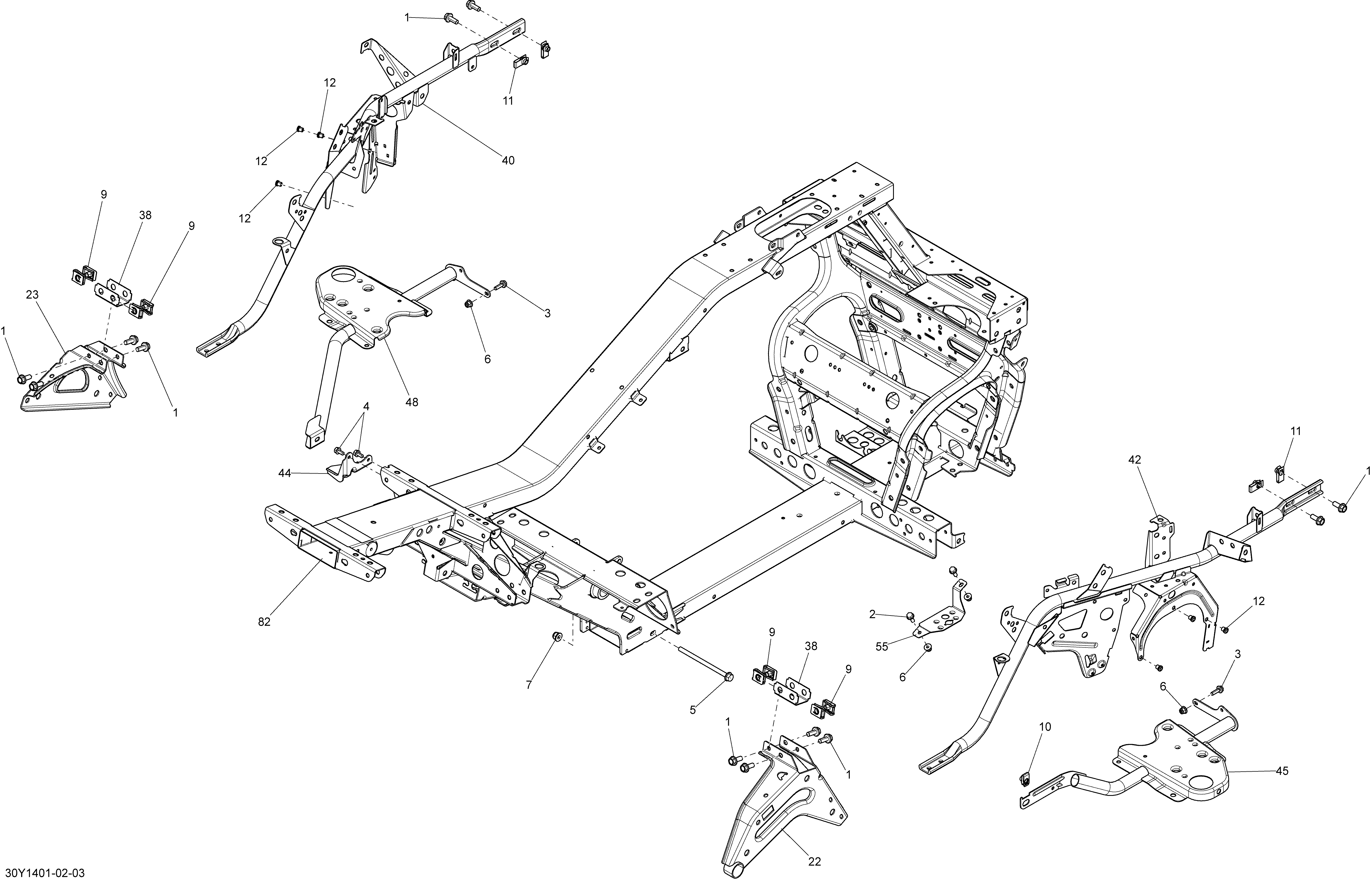

09- Frame _30Y1401 для BRP Spyder RT SM6 - 2014
-
№АртикулНазвание
-
1207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
6250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
10250100111 Panel Nut M8Panel Nut M8
-
11250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
12293450268 InsertInsert
-
22705203959 Painted Rear SupportPainted Rear Support
-
23705203969 LH Rear SupportLH Rear Support
-
38705202484 U-BracketU-Bracket
-
40705203017 LH Painted Lateral Support Ass'yLH Painted Lateral Support Ass'y
-
42705203016 RH Painted Lateral Support Ass'yRH Painted Lateral Support Ass'y
-
44705202587 Stopper Swing ArmStopper Swing Arm
-
45705202625 RH Painted Lower Lateral SupportRH Painted Lower Lateral Support
-
48705202626 LH Painted Lower Lateral SupportLH Painted Lower Lateral Support
-
55705202891 Latch SupportLatch Support
-
82705203696 Painted Frame Ass'yPainted Frame Ass'y
