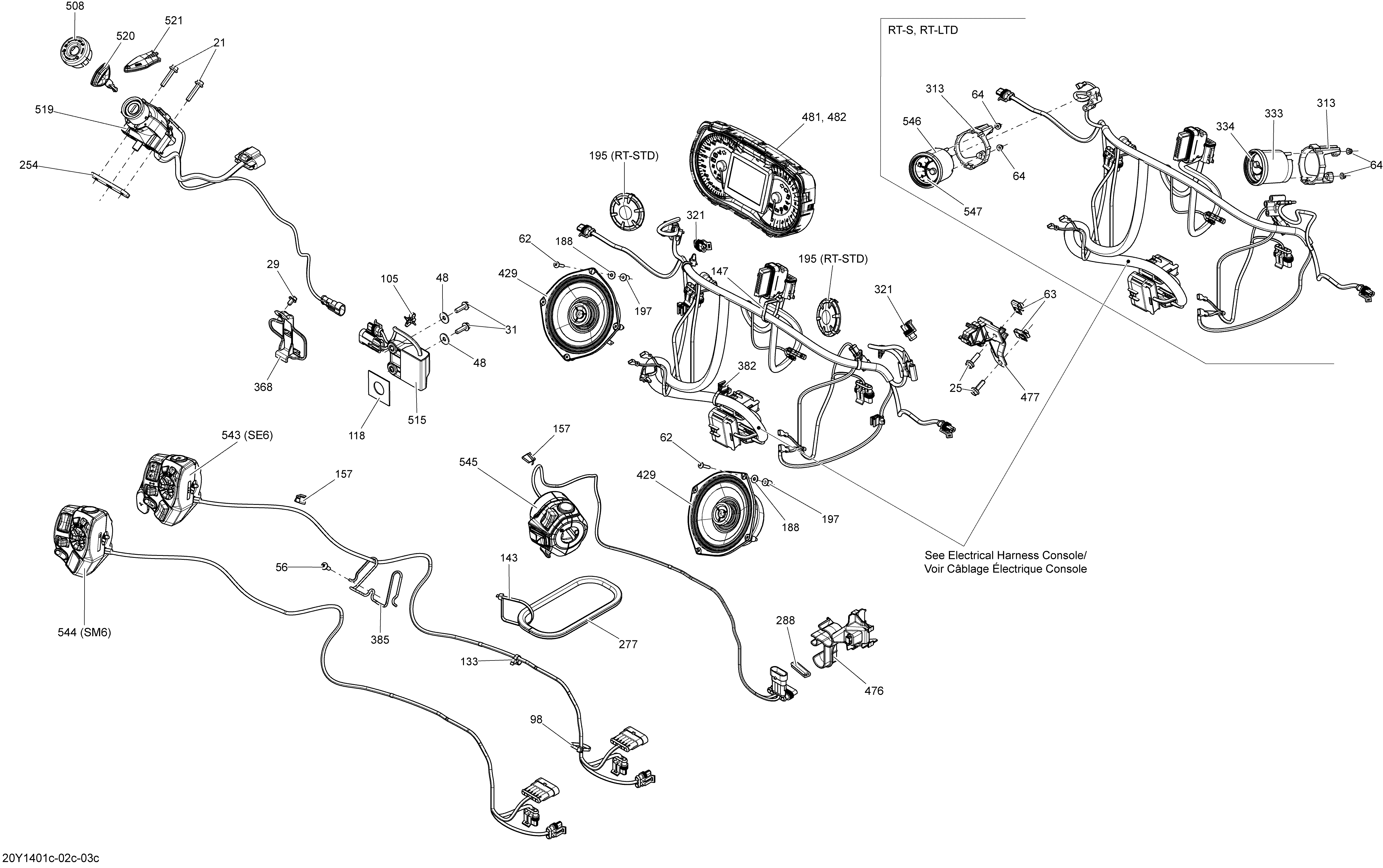

10- Electrical System Front View_20Y1401c для BRP Spyder RT SM6 - 2014
-
№АртикулНазвание
-
21207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
31210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
48234062410 Flat Washer 6 mmFlat Washer 6 mm
-
56250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
62250000405 Torx Screw M4 X 20Torx Screw M4 X 20
-
63250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
98293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
105293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
118293830091 Rubber BumperRubber Bumper
-
133414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
143414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
147414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
157414227300 ClipClip
-
188517225900 Flat WasherFlat Washer
-
195705003421 Gauge CapGauge Cap
-
197705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
254710001365 Switch SupportSwitch Support
-
277271001530 TrimTrim
-
288271001530 TrimTrim
-
321710002162 Packard Connector With Plug. AustraliaPackard Connector With Plug. Australia
-
321710002162 Packard Connector With Plug. EuropePackard Connector With Plug. Europe
-
321710002162 Packard Connector With Plug. North AmericaPackard Connector With Plug. North America
-
321710002162 Packard Connector With Plug. JapanPackard Connector With Plug. Japan
-
368710002840 Front SupportFront Support
-
382710002899 Clip Tie-RapClip Tie-Rap
-
385710003017 Grommet SpindleGrommet Spindle
-
429710003233 Front SpeakerFront Speaker
-
476710003437 RH Connector SupportRH Connector Support
-
477710003458 LH Connector SupportLH Connector Support
-
481710004112 Multifunction Gauge Cluster. Includes 481 a 482Multifunction Gauge Cluster. Includes 481 a 482
-
482415129349 LensLens
-
508710003594 Switch CoverSwitch Cover
-
515710004190 D.E.S.S.TM (Digitally Encoded Module)D.E.S.S.TM (Digitally Encoded Module)
-
519710003598 Ignition Switch. Includes 519 to 521Ignition Switch. Includes 519 to 521
-
520710003596 Ignition key With SleeveIgnition key With Sleeve
-
521710003597 Key SleeveKey Sleeve
-
543710003918 LH Switch Housing. SE6LH Switch Housing. SE6
-
544710003919 LH Switch Housing. SM6LH Switch Housing. SM6
-
545710003921 Housing SwitchHousing Switch
