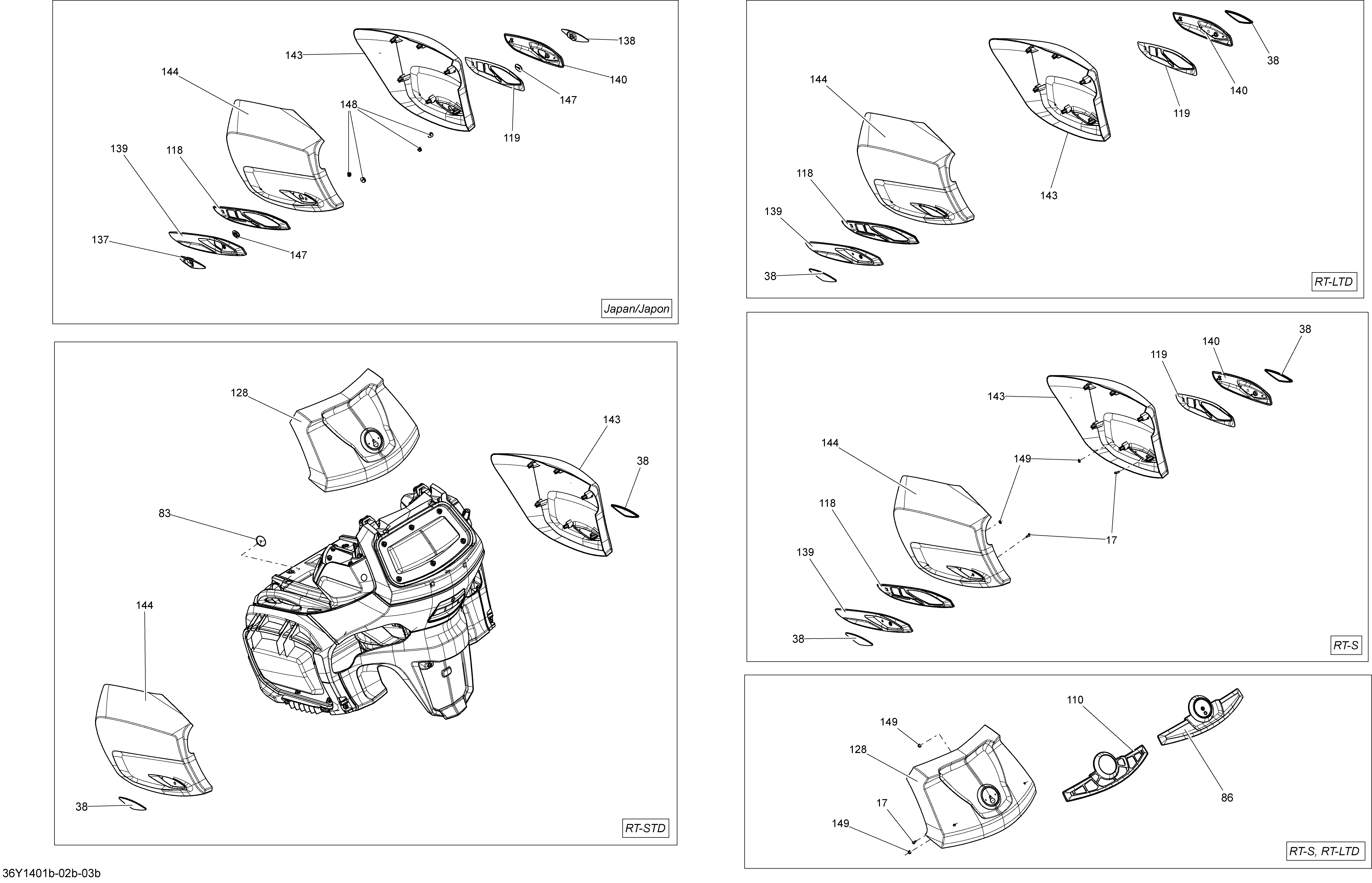

09- Luggages Cover_36Y1401b для BRP Spyder RT SM6 - 2014
-
№АртикулНазвание
-
17250000146 Truss Head Torx Screw K50 X 16. Model-JapanTruss Head Torx Screw K50 X 16. Model-Japan
-
38705002423 Amber Lateral Reflector. Model-EuropeAmber Lateral Reflector. Model-Europe
-
38705002423 Amber Lateral Reflector. Model-AustraliaAmber Lateral Reflector. Model-Australia
-
38705003412 Red Lateral Reflector. Model-North AmericaRed Lateral Reflector. Model-North America
-
83708300049 Crontrol CapCrontrol Cap
-
118708300650 LH Moulding Trim. Model-JapanLH Moulding Trim. Model-Japan
-
119708300651 RH Moulding Trim. Model-JapanRH Moulding Trim. Model-Japan
-
128708301106 Vegas White Central Cover. Model-WhiteVegas White Central Cover. Model-White
-
128708301107 Timeless Black Central Cover. Model-BlackTimeless Black Central Cover. Model-Black
-
137708300979 LH Flash Support. Model-JapanLH Flash Support. Model-Japan
-
138708300980 RH Flash Support. Model-JapanRH Flash Support. Model-Japan
-
139708301014 Chrome LH Moulding. Model-JapanChrome LH Moulding. Model-Japan
-
140708301015 Chrome RH Moulding. Model-JapanChrome RH Moulding. Model-Japan
-
143708301112 Vegas White RH Cover. Model-WhiteVegas White RH Cover. Model-White
-
143708301116 Timeless Black RH Cover. Model-Black (Australia)Timeless Black RH Cover. Model-Black (Australia)
-
143708301116 Timeless Black RH Cover. Model-Black (North America)Timeless Black RH Cover. Model-Black (North America)
-
143708301116 Timeless Black RH Cover. Model-Black (Europe)Timeless Black RH Cover. Model-Black (Europe)
-
143708301173 Timeless Black RH Cover. Model-JapanTimeless Black RH Cover. Model-Japan
-
144708301111 Vegas White LH Cover. Model-WhiteVegas White LH Cover. Model-White
-
144708301115 Timeless Black LH Cover. Model-Black (Australia)Timeless Black LH Cover. Model-Black (Australia)
-
144708301115 Timeless Black LH Cover. Model-Black (North America)Timeless Black LH Cover. Model-Black (North America)
-
144708301115 Timeless Black LH Cover. Model-Black (Europe)Timeless Black LH Cover. Model-Black (Europe)
-
144708301172 Timeless Black LH Cover. Model-JapanTimeless Black LH Cover. Model-Japan
-
147708301024 Retaining Washer. Model-JapanRetaining Washer. Model-Japan
-
148708301025 Grommet. Model-JapanGrommet. Model-Japan
-
149250100163 Pressure Nut. Model-JapanPressure Nut. Model-Japan
