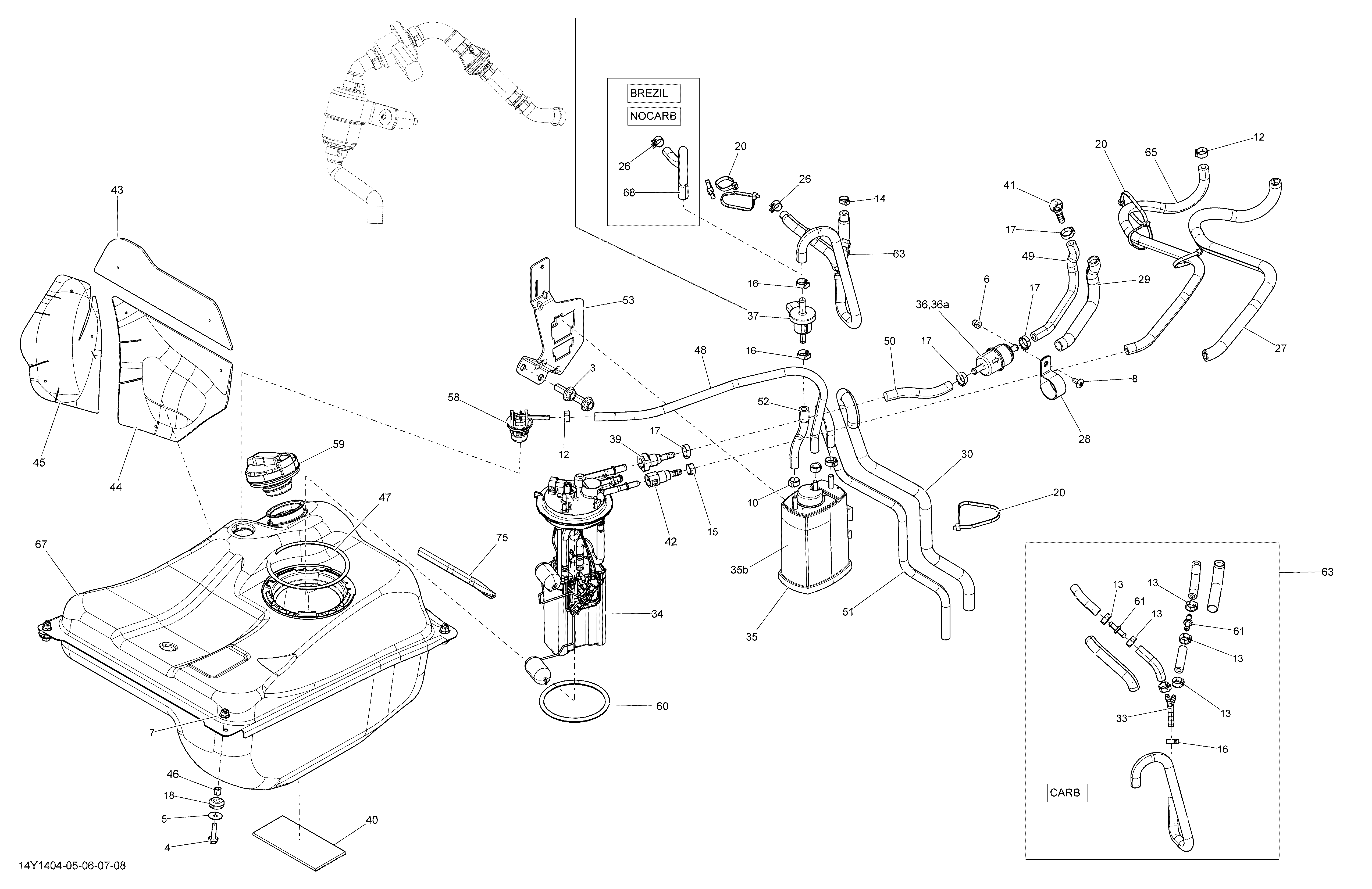

02- Fuel System _14Y1406 для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
3207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5224060201 Flat WasherFlat Washer
-
6232361493 Domed Nut M6Domed Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
10293650025 Oetiker Gear ClampOetiker Gear Clamp
-
12293650025 Oetiker Gear ClampOetiker Gear Clamp
-
13293650025 Oetiker Gear Clamp. CARBOetiker Gear Clamp. CARB
-
14293650042 Oetiker Clamp. CARBOetiker Clamp. CARB
-
15293650046 Oetiker ClampOetiker Clamp
-
16293650047 Crimp ClampCrimp Clamp
-
17293650125 Oetiker ClampOetiker Clamp
-
18293720053 GrommetGrommet
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26414415200 Spring ClampSpring Clamp
-
27415080000 Tubing 16 mmTubing 16 mm
-
28513033047 Open ClampOpen Clamp
-
29415080000 Tubing 16 mmTubing 16 mm
-
30513033412 TubingTubing
-
33513033672 Y Connector. CARBY Connector. CARB
-
34709000088 Pump ModulePump Module
-
35709000090 Vapor CanisterVapor Canister
-
35b709000541 Heat ShieldHeat Shield
-
36219800056 Fuel Filter Ass'y. SERVFuel Filter Ass'y. SERV
-
36a709000100 Fuel FilterFuel Filter
-
37709000793 Purge Valve ass'yPurge Valve ass'y
-
39709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
40709000130 CarpetCarpet
-
41709000137 Banjo FittingBanjo Fitting
-
42709000141 Quick FittingQuick Fitting
-
43709000157 Reflective SheetReflective Sheet
-
44709000158 Reflective SheetReflective Sheet
-
45709000159 Reflective SheetReflective Sheet
-
46709000162 BushingBushing
-
47219800248 Seal KitSeal Kit
-
48513033565 HoseHose
-
49709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
50709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
51709000277 Formed HoseFormed Hose
-
52709000365 Formed HoseFormed Hose
-
53709000384 Fuel Filter SupportFuel Filter Support
-
58709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
59709000414 Fuel CapFuel Cap
-
60219800248 Seal KitSeal Kit
-
61709000430 Flow Reducer. CARBFlow Reducer. CARB
-
63709000437 Y Connector Ass'y. CARBY Connector Ass'y. CARB
-
65709000445 Hose 6.4mm - 275mmHose 6.4mm - 275mm
-
67219800298 Fuel TankFuel Tank
-
68709000475 Formed Hose. NOCARBFormed Hose. NOCARB
-
75271001530 TrimTrim
