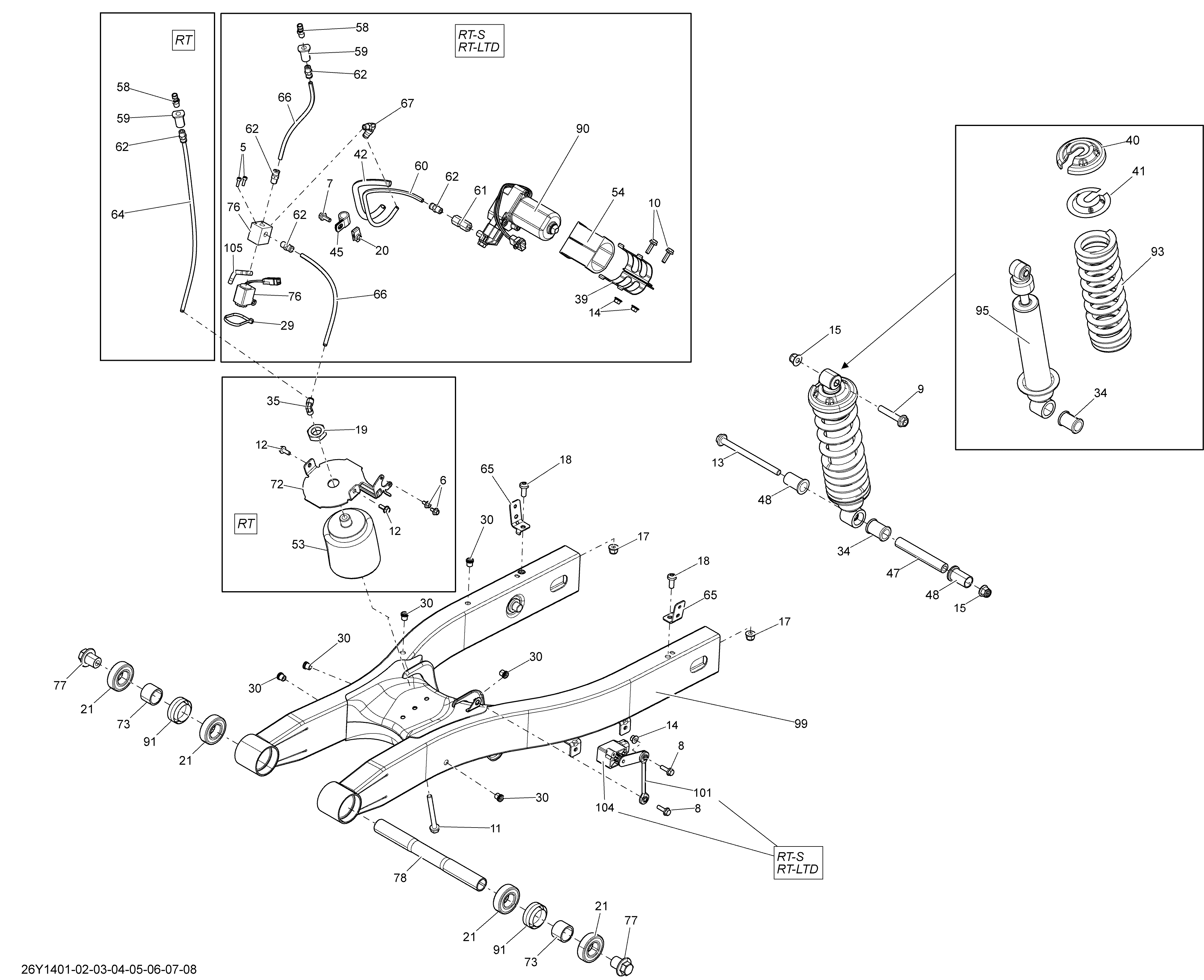

08- Suspension, Rear _26Y1406 для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
5205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
6207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207605534 Hex. Flanged ScrewHex. Flanged Screw
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
12210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
13230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
14233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
15233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21293350055 Ball BearingBall Bearing
-
30293450275 InsertInsert
-
34503191609 Urethane CushionUrethane Cushion
-
40503191604 Spring StopperSpring Stopper
-
41503191605 CapCap
-
47706000409 Shock Absorber ShaftShock Absorber Shaft
-
48706000410 SpacerSpacer
-
65706000895 BracketBracket
-
73706001152 SpacerSpacer
-
77706001579 Bolt M20Bolt M20
-
78706001182 Swing Arm AxleSwing Arm Axle
-
91706001366 SleeveSleeve
-
93706001111 Shock Absorber SpringShock Absorber Spring
-
95706001110 Shock AbsorberShock Absorber
-
99706001574 Swing ArmSwing Arm
