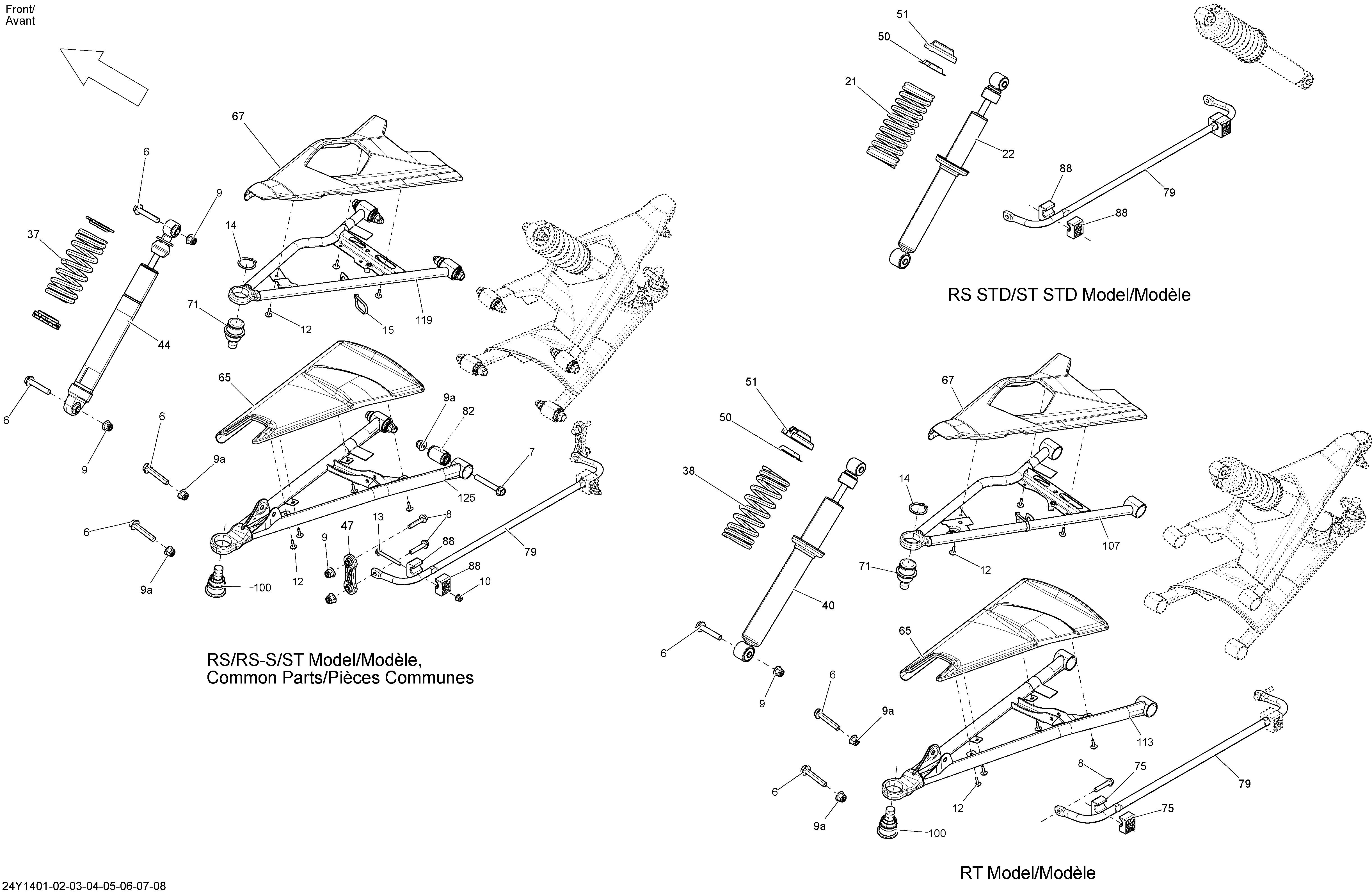

07- Suspension, Front _24Y1406 для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
7207607036 Hex. Flanged ScrewHex. Flanged Screw
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
14293370035 CirclipCirclip
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21706001108 Spring. ST LTDSpring. ST LTD
-
22706001750 Shock. ST LTDShock. ST LTD
-
47706200671 Tie RodTie Rod
-
50706200785 Cap. ST LTDCap. ST LTD
-
51706200881 Spring Stopper. ST LTDSpring Stopper. ST LTD
-
65706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
65706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
67706201700 LH Upper Air Deflector. ST LTDLH Upper Air Deflector. ST LTD
-
67706201701 RH Upper Air Deflector. ST LTDRH Upper Air Deflector. ST LTD
-
71706201371 Ball JointBall Joint
-
79706201421 Sway Bar. STSway Bar. ST
-
82706201519 Suspension Arm BushingSuspension Arm Bushing
-
88706201545 Stabilizer Bushing. STStabilizer Bushing. ST
-
100706201739 Ball JointBall Joint
-
119706201735 LH Upper Arm. STLH Upper Arm. ST
-
119706201736 RH Upper Arm. STRH Upper Arm. ST
-
125706201737 LH Lower Arm. STLH Lower Arm. ST
-
125706201738 RH Lower Arm. STRH Lower Arm. ST
