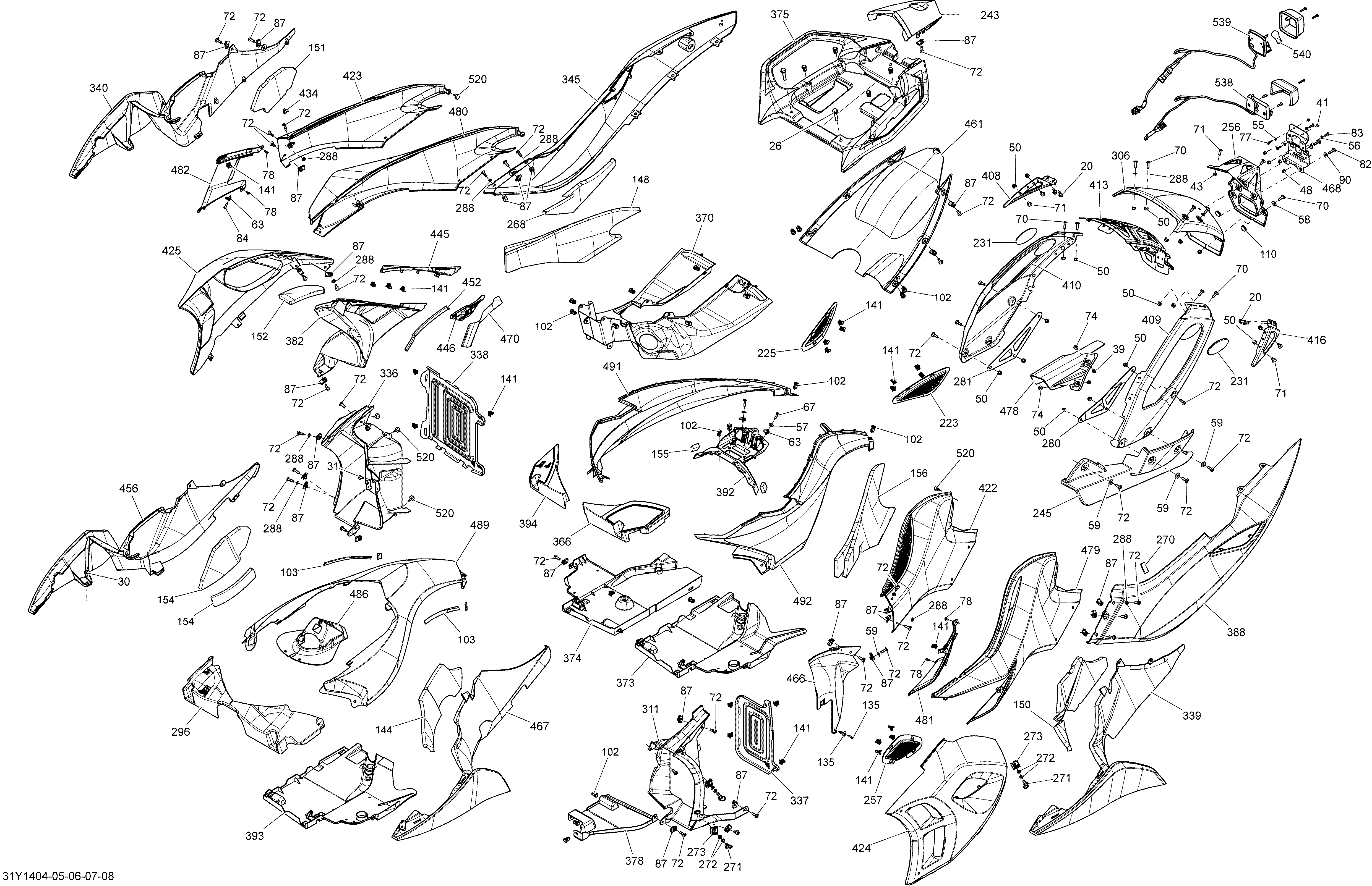

09- Body And Accessories _31Y1406 для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
20207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
26207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
31210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
39232361600 Nut M6. Model-Australie, Brezil, EuropeNut M6. Model-Australie, Brezil, Europe
-
41232541484 Elastic Stop Nut M4. Model-AustralieElastic Stop Nut M4. Model-Australie
-
43232561494 Elastic Stop Nut M6. Model-Australie, Brezil, EuropeElastic Stop Nut M6. Model-Australie, Brezil, Europe
-
48233251494 Elastic Flanged Nut M5. Model-AustralieElastic Flanged Nut M5. Model-Australie
-
50233261494 Hex. Elastic Flanged Nut M6. Model-North AmericaHex. Elastic Flanged Nut M6. Model-North America
-
55234041480 Flat Washer 4 mm. Model-AustralieFlat Washer 4 mm. Model-Australie
-
56234051670 Flat Washer M5. Model-AustralieFlat Washer M5. Model-Australie
-
57234052670 Inox. Flat Washer M5. Model-STInox. Flat Washer M5. Model-ST
-
58234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
59234062670 Flat WasherFlat Washer
-
63250000079 Panel Nut M5 X 0.8. Model-STPanel Nut M5 X 0.8. Model-ST
-
67250000130 Torx Screw M5 X 20. Model-STTorx Screw M5 X 20. Model-ST
-
70250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
71250000348 Torx Truss Screw M6 X 16. Model-ST S, ST LTDTorx Truss Screw M6 X 16. Model-ST S, ST LTD
-
72250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
74250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
77250000575 Torx-Truss M4 X 16. Model-AustralieTorx-Truss M4 X 16. Model-Australie
-
78250000577 Torx Screw K40 X 12. Model-North America, Europe, Australie, JaponTorx Screw K40 X 12. Model-North America, Europe, Australie, Japon
-
82250000630 Torx Truss Screw M6 X 25. Model-STTorx Truss Screw M6 X 25. Model-ST
-
83250000652 Socket Screw M5 X 16. Model-AustralieSocket Screw M5 X 16. Model-Australie
-
84250000661 Socket Screw M5 X 16 F/. Model-STSocket Screw M5 X 16 F/. Model-ST
-
87250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
90250200024 Rubber Washer 5 mm. Model-AustralieRubber Washer 5 mm. Model-Australie
-
102293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
110293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
135414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
141517302785 ClipClip
-
148518325518 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
150518327010 LH Rocker Panel Foam. Model-STLH Rocker Panel Foam. Model-ST
-
151518327011 RH Rocker Panel Foam. Model-STRH Rocker Panel Foam. Model-ST
-
152518327438 RH Lateral Panel FoamRH Lateral Panel Foam
-
155518327579 Lateral Console Foam. Model-STLateral Console Foam. Model-ST
-
156518327600 LH Upper Panel FoamLH Upper Panel Foam
-
223705001542 LH Rear Grill. Model-ST STD, ST SLH Rear Grill. Model-ST STD, ST S
-
225705001544 RH Rear Grill. Model-ST STD, ST SRH Rear Grill. Model-ST STD, ST S
-
231705001573 Yellow Rear Lateral Reflector. Model-Australie, Brezil, EuropeYellow Rear Lateral Reflector. Model-Australie, Brezil, Europe
-
231705001572 Red Rear Lateral Reflector. Model-North AmericaRed Rear Lateral Reflector. Model-North America
-
243705006649 Rear Tip, Cassis. Model-Black Current Met.Rear Tip, Cassis. Model-Black Current Met.
-
243705007778 Cognac Rear Tip. Model-CognacCognac Rear Tip. Model-Cognac
-
243705007779 Platinum Silver Rear Tip. Model-Platinum Silver SatinPlatinum Silver Rear Tip. Model-Platinum Silver Satin
-
245705002092 Lower Belt GuardLower Belt Guard
-
256705002367 Licence Plate Support. Model-Australie, Brezil, EuropeLicence Plate Support. Model-Australie, Brezil, Europe
-
257705002369 LH Lateral GrillLH Lateral Grill
-
268705002509 Black RH Rear Panel FoamBlack RH Rear Panel Foam
-
270293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
271705002649 Quarter Turn ScrewQuarter Turn Screw
-
272705002650 WasherWasher
-
273705002651 Quarter Turn NutQuarter Turn Nut
-
280705002980 LH Reinforcement PlateLH Reinforcement Plate
-
281705002981 RH Reinforcement PlateRH Reinforcement Plate
-
288705003207 Plastic WasherPlastic Washer
-
306705006625 Black Current Rear Fender. Model-Black Current Met. AustralieBlack Current Rear Fender. Model-Black Current Met. Australie
-
306705006625 Black Current Rear Fender. Model-Black Current Met. EuropeBlack Current Rear Fender. Model-Black Current Met. Europe
-
306705006627 Black Current Rear Fender. Model-Black Current Met. North AmericaBlack Current Rear Fender. Model-Black Current Met. North America
-
306705007725 Cognac Rear Fender. Model-Cognac AustralieCognac Rear Fender. Model-Cognac Australie
-
306705007725 Cognac Rear Fender. Model-Cognac BrezilCognac Rear Fender. Model-Cognac Brezil
-
306705007725 Cognac Rear Fender. Model-Cognac EuropeCognac Rear Fender. Model-Cognac Europe
-
306705007726 Cognac Rear Fender. Model-Cognac North AmericaCognac Rear Fender. Model-Cognac North America
-
306705007727 Platinum Silver Rear Fender. Model-Platinum Silver Satin BrezilPlatinum Silver Rear Fender. Model-Platinum Silver Satin Brezil
-
306705007727 Platinum Silver Rear Fender. Model-Platinum Silver Satin EuropePlatinum Silver Rear Fender. Model-Platinum Silver Satin Europe
-
306705007729 Platinum Silver Rear Fender. Model-Platinum Silver Satin North AmericaPlatinum Silver Rear Fender. Model-Platinum Silver Satin North America
-
311705004636 LH Radiator MouldingLH Radiator Moulding
-
336705005261 RH Radiator MouldingRH Radiator Moulding
-
337705005262 LH Radiator GrillLH Radiator Grill
-
338705005263 RH Radiator GrillRH Radiator Grill
-
339705005266 LH Rocker Panel. Model-STLH Rocker Panel. Model-ST
-
340705005267 RH Rocker Panel. Model-STRH Rocker Panel. Model-ST
-
345705007648 Black Current RH Rear Panel. Model-Black Current Met.Black Current RH Rear Panel. Model-Black Current Met.
-
345705007769 Platinum Silver RH Rear Panel. Model-Platinum Silver SatinPlatinum Silver RH Rear Panel. Model-Platinum Silver Satin
-
345705007777 Cognac RH Rear Panel. Model-ST LTD CognacCognac RH Rear Panel. Model-ST LTD Cognac
-
366705005394 LH Service Center. Model-STLH Service Center. Model-ST
-
370705005410 RH Tank CoverRH Tank Cover
-
373705005413 LH Deflector Pannel. Model-STLH Deflector Pannel. Model-ST
-
374705005414 RH Deflector PannelRH Deflector Pannel
-
375705005429 Passenger HandlePassenger Handle
-
378705005447 LH Skid PlateLH Skid Plate
-
382705005462 Heat DeflectorHeat Deflector
-
388705006639 Black Current LH Rear Panel. Model-Black Current Met.Black Current LH Rear Panel. Model-Black Current Met.
-
388705007766 Cognac LH Rear Panel. Model-CognacCognac LH Rear Panel. Model-Cognac
-
388705007768 Platinum Silver LH Rear Panel. Model-Platinum Silver SatinPlatinum Silver LH Rear Panel. Model-Platinum Silver Satin
-
392705005739 Lateral Console Support. Model-STLateral Console Support. Model-ST
-
394705005774 RH Service Center. Model-STRH Service Center. Model-ST
-
408705006070 RH Rear Fender ReinforcementRH Rear Fender Reinforcement
-
409705006084 LH Rear Fender SupportLH Rear Fender Support
-
410705006085 RH Rear Fender SupportRH Rear Fender Support
-
413705006086 Rear Fender SupportRear Fender Support
-
416705006136 LH Rear Fender ReinforcementLH Rear Fender Reinforcement
-
422705008066 Cognac LH Upper Side Panel. Model-Cognac BrezilCognac LH Upper Side Panel. Model-Cognac Brezil
-
422705008068 Platinum Silver LH Upper Side Panel. Model-Platinum Silver Satin BrezilPlatinum Silver LH Upper Side Panel. Model-Platinum Silver Satin Brezil
-
423705008065 Cognac RH Upper Side Panel. Model-Cognac BrezilCognac RH Upper Side Panel. Model-Cognac Brezil
-
423705008067 Platinum Silver RH Upper Side Panel. Model-Platinum Silver Satin BrezilPlatinum Silver RH Upper Side Panel. Model-Platinum Silver Satin Brezil
-
424705006631 Black Current LH Side Panel. Model-Black Current Met.Black Current LH Side Panel. Model-Black Current Met.
-
424705007803 Cognac LH Side Panel. Model-CognacCognac LH Side Panel. Model-Cognac
-
424705007804 Platinum Silver LH Side Panel. Model-Platinum Silver SatinPlatinum Silver LH Side Panel. Model-Platinum Silver Satin
-
425705006629 Black Current RH Side Panel. Model-Black Current Met.Black Current RH Side Panel. Model-Black Current Met.
-
425705007807 Cognac RH Side Panel. Model-CognacCognac RH Side Panel. Model-Cognac
-
425705007808 Platinum Silver RH Side Panel. Model-Platinum Silver SatinPlatinum Silver RH Side Panel. Model-Platinum Silver Satin
-
434705006474 Cap. Model-ST LTDCap. Model-ST LTD
-
445705006531 Upper Heat SealUpper Heat Seal
-
446705006532 Lower Heat SeatLower Heat Seat
-
452293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
461705006829 Under Tail Cover. Model-STUnder Tail Cover. Model-ST
-
466705006981 LH Inner Heat DeflectorLH Inner Heat Deflector
-
468705007018 Backup Light Bracket. Model-AustralieBackup Light Bracket. Model-Australie
-
470705007053 Heat Shield Rocker PanelHeat Shield Rocker Panel
-
478705007213 Upper Belt GuardUpper Belt Guard
-
479705007747 Black Current LH Upper Side Panel. Model-Black Current Met.Black Current LH Upper Side Panel. Model-Black Current Met.
-
479705007755 Cognac LH Upper Side Panel. Model-Cognac AustralieCognac LH Upper Side Panel. Model-Cognac Australie
-
479705007755 Cognac LH Upper Side Panel. Model-Cognac EuropeCognac LH Upper Side Panel. Model-Cognac Europe
-
479705007755 Cognac LH Upper Side Panel. Model-Cognac North AmericaCognac LH Upper Side Panel. Model-Cognac North America
-
479705007757 Platinum Silver LH Upper Side Panel. Model-Platinum Silver Satin EuropePlatinum Silver LH Upper Side Panel. Model-Platinum Silver Satin Europe
-
479705007757 Platinum Silver LH Upper Side Panel. Model-Platinum Silver Satin North AmericaPlatinum Silver LH Upper Side Panel. Model-Platinum Silver Satin North America
-
480705007748 Black Current RH Upper Side Panel. Model-Black Current Met.Black Current RH Upper Side Panel. Model-Black Current Met.
-
480705007756 Cognac RH Upper Side Panel. Model-Cognac AustralieCognac RH Upper Side Panel. Model-Cognac Australie
-
480705007756 Cognac RH Upper Side Panel. Model-Cognac EuropeCognac RH Upper Side Panel. Model-Cognac Europe
-
480705007756 Cognac RH Upper Side Panel. Model-Cognac North AmericaCognac RH Upper Side Panel. Model-Cognac North America
-
480705007758 Platinum Silver RH Upper Side Panel. Model-Platinum Silver Satin EuropePlatinum Silver RH Upper Side Panel. Model-Platinum Silver Satin Europe
-
480705007758 Platinum Silver RH Upper Side Panel. Model-Platinum Silver Satin North AmericaPlatinum Silver RH Upper Side Panel. Model-Platinum Silver Satin North America
-
481705007329 LH Upper Side Panel. Model-North America, Europe, Australie, JaponLH Upper Side Panel. Model-North America, Europe, Australie, Japon
-
482705007330 RH Upper Side Panel. Model-North America, Europe, Australie, JaponRH Upper Side Panel. Model-North America, Europe, Australie, Japon
-
491705007732 Cognac LH Side Console. Model-CognacCognac LH Side Console. Model-Cognac
-
491705007734 Platinum Silver LH Side Console. Model-Platinum Silver SatinPlatinum Silver LH Side Console. Model-Platinum Silver Satin
-
491705007678 Black Current LH Side Console. Model-Black Current Met.Black Current LH Side Console. Model-Black Current Met.
-
492705007733 Cognac RH Side Console. Model-CognacCognac RH Side Console. Model-Cognac
-
492705007735 Platinum Silver RH Side Console. Model-Platinum Silver SatinPlatinum Silver RH Side Console. Model-Platinum Silver Satin
-
492705007680 Black Current RH Side Console. Model-Black Current Met.Black Current RH Side Console. Model-Black Current Met.
-
492705007734 Platinum Silver LH Side Console. Model-Platinum Silver SatinPlatinum Silver LH Side Console. Model-Platinum Silver Satin
-
520708000759 Rubber StopperRubber Stopper
-
538710003349 License Plate Light. Model-AustralieLicense Plate Light. Model-Australie
-
539710003319 Reverse Light. Model-AustralieReverse Light. Model-Australie
