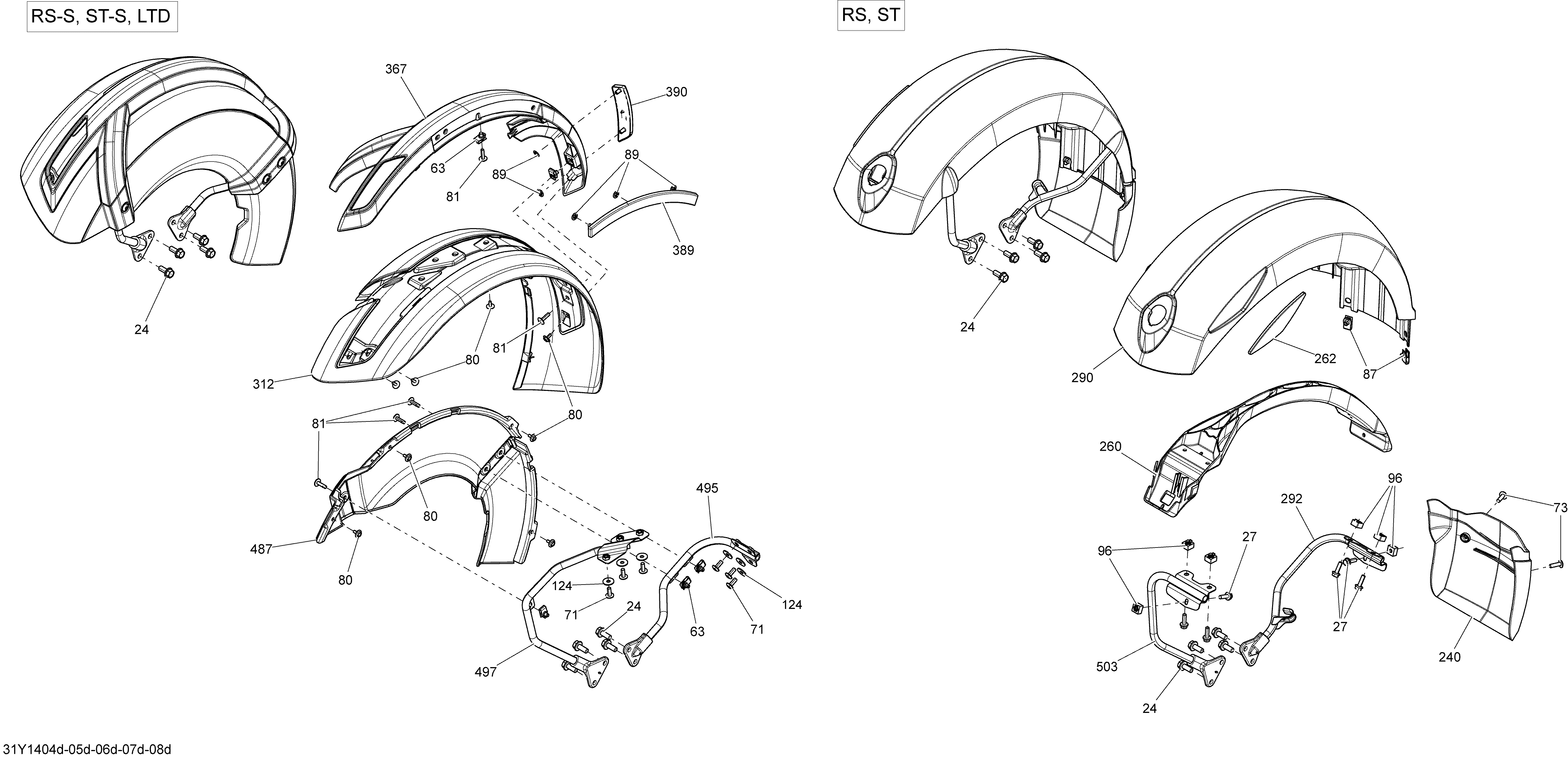

09- Body And Accessories Front Fender_31Y1406d для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
24207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
63250000079 Panel Nut M5 X 0.8. Model-STPanel Nut M5 X 0.8. Model-ST
-
71250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
80250000585 Plastite Screw K-40 M4 X 10. Model-ST LTDPlastite Screw K-40 M4 X 10. Model-ST LTD
-
81250000586 Torx Truss M5 X 20. Model-ST LTDTorx Truss M5 X 20. Model-ST LTD
-
89250100163 Pressure Nut. Model-ST LTDPressure Nut. Model-ST LTD
-
124250200082 Flat Washer. Model-ST LTDFlat Washer. Model-ST LTD
-
312705006511 Black Current LH Front Fender. Model-Black Current Met.Black Current LH Front Fender. Model-Black Current Met.
-
312705006512 Black Current RH Front Fender. Model-Black Current Met.Black Current RH Front Fender. Model-Black Current Met.
-
312705006504 Yellow LH Front Fender. Model-Circuit Yellow Met.Yellow LH Front Fender. Model-Circuit Yellow Met.
-
312705006505 Yellow RH Front Fender. Model-Circuit Yellow Met.Yellow RH Front Fender. Model-Circuit Yellow Met.
-
312705008033 Cognac LH Front Fender. Model-CognacCognac LH Front Fender. Model-Cognac
-
312705008032 Cognac RH Front Fender. Model-CognacCognac RH Front Fender. Model-Cognac
-
312705007580 Platinum Silver Satin LH Front Fender. Model-Platinum Silver SatinPlatinum Silver Satin LH Front Fender. Model-Platinum Silver Satin
-
312705007581 Platinum Silver Satin RH Front Fender. Model-Platinum Silver SatinPlatinum Silver Satin RH Front Fender. Model-Platinum Silver Satin
-
367705008006 Black Current LH Fr Fender Moulding. Model-Black Current Met.Black Current LH Fr Fender Moulding. Model-Black Current Met.
-
367705008007 Black Current RH Fr Fender Moulding. Model-Black Current Met.Black Current RH Fr Fender Moulding. Model-Black Current Met.
-
367705006516 Yellow LH Front Fender Moulding. Model-Circuit Yellow Met.Yellow LH Front Fender Moulding. Model-Circuit Yellow Met.
-
367705006517 Yellow RH Front Fender Moulding. Model-Circuit Yellow Met.Yellow RH Front Fender Moulding. Model-Circuit Yellow Met.
-
367705008012 Cognac LH Front Fender Moulding. Model-CognacCognac LH Front Fender Moulding. Model-Cognac
-
367705008013 Cognac RH Front Fender Moulding. Model-CognacCognac RH Front Fender Moulding. Model-Cognac
-
367705008014 Plat. Silver LH Fr Fender Moulding. Model-Platinum Silver SatinPlat. Silver LH Fr Fender Moulding. Model-Platinum Silver Satin
-
367705008015 Plat Silver RH Fr Fender Moulding. Model-Platinum Silver SatinPlat Silver RH Fr Fender Moulding. Model-Platinum Silver Satin
-
389705008661 Yellow LH Reflector. Model-ST LTDYellow LH Reflector. Model-ST LTD
-
389705008662 Yellow RH Reflector. Model-ST LTDYellow RH Reflector. Model-ST LTD
-
390705005667 LH Rear Reflector. Model-ST LTD North AmericaLH Rear Reflector. Model-ST LTD North America
-
390705005949 RH Rear Reflector. Model-ST LTD North AmericaRH Rear Reflector. Model-ST LTD North America
-
487705007616 LH Inner Fender. Model-ST LTDLH Inner Fender. Model-ST LTD
-
487705007617 RH Inner Fender. Model-ST LTDRH Inner Fender. Model-ST LTD
-
495705008116 LH Painted Fender Rear Support. Model-ST LTDLH Painted Fender Rear Support. Model-ST LTD
-
495705008117 RH Painted Fender Rear Support. Model-ST LTDRH Painted Fender Rear Support. Model-ST LTD
-
497705005265 LH Painted Fender Front Support. Model-ST LTDLH Painted Fender Front Support. Model-ST LTD
-
497705005264 RH Painted Fender Front Support. Model-ST LTDRH Painted Fender Front Support. Model-ST LTD
