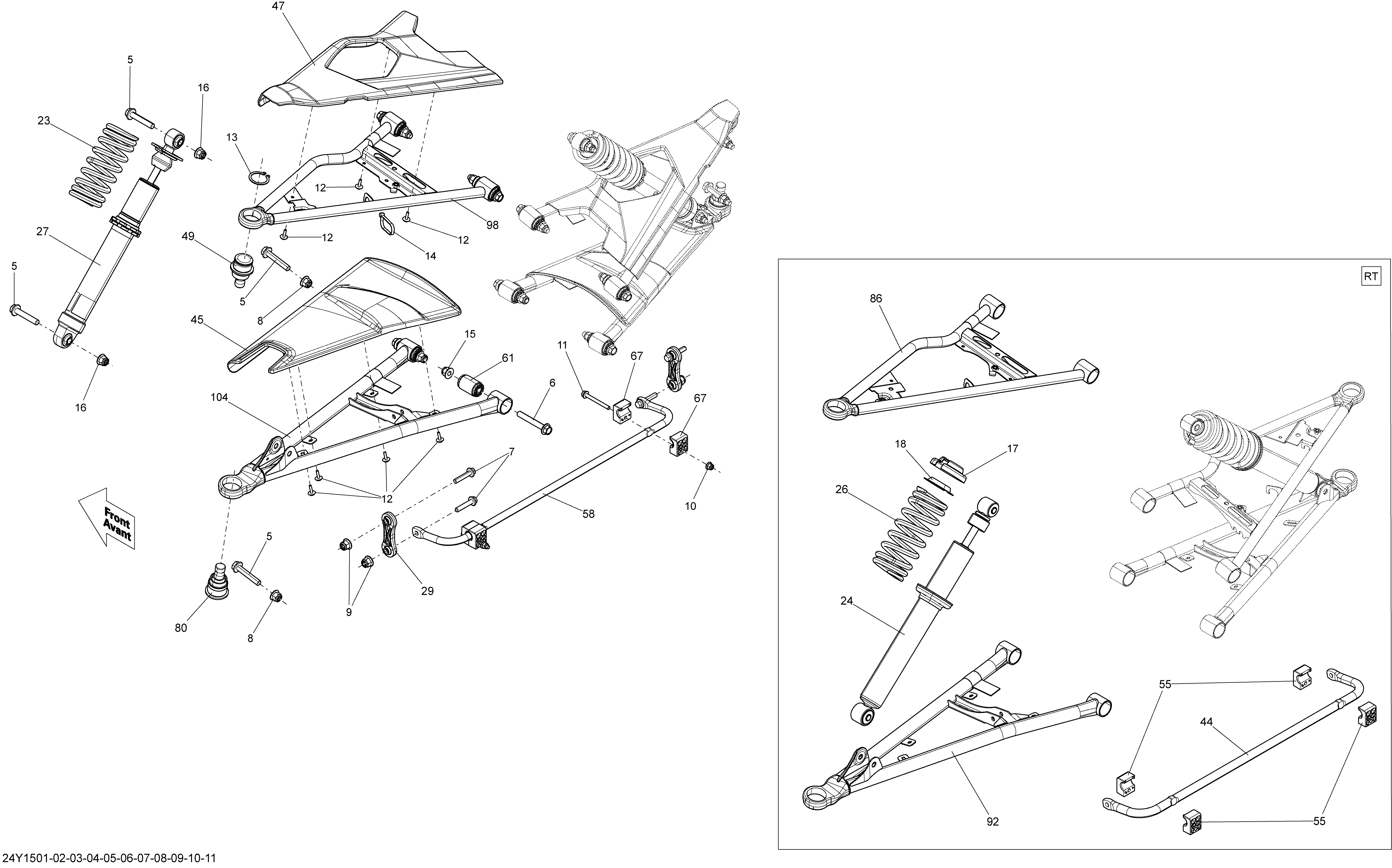

07- Suspension, Front _24Y1504 для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
5207605554 Hex.Flanged Screw M10 X 55Hex.Flanged Screw M10 X 55
-
6207607056 Hex.Flanged Screw M10 X 70Hex.Flanged Screw M10 X 70
-
7207684054 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
11250000397 Hex. Flanged Screw M6 X 60Hex. Flanged Screw M6 X 60
-
12250000725 Screw M4 X 16Screw M4 X 16
-
13293370035 CirclipCirclip
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
17706200881 Spring StopperSpring Stopper
-
18706200785 CapCap
-
24706001549 ShockShock
-
26706001830 SpringSpring
-
29706200671 Tie RodTie Rod
-
44706201544 Sway BarSway Bar
-
45706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
45706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
47706201321 Black LH Upper Air DeflectorBlack LH Upper Air Deflector
-
47706201322 Black RH Upper Air DeflectorBlack RH Upper Air Deflector
-
49706201371 Ball JointBall Joint
-
55706201391 Stabilizer BushingStabilizer Bushing
-
61706201519 Suspension Arm BushingSuspension Arm Bushing
-
80706201739 Ball JointBall Joint
-
86706201731 LH Upper ArmLH Upper Arm
-
86706201732 RH Upper ArmRH Upper Arm
-
92706201733 LH Lower ArmLH Lower Arm
-
92706201734 RH Lower ArmRH Lower Arm
