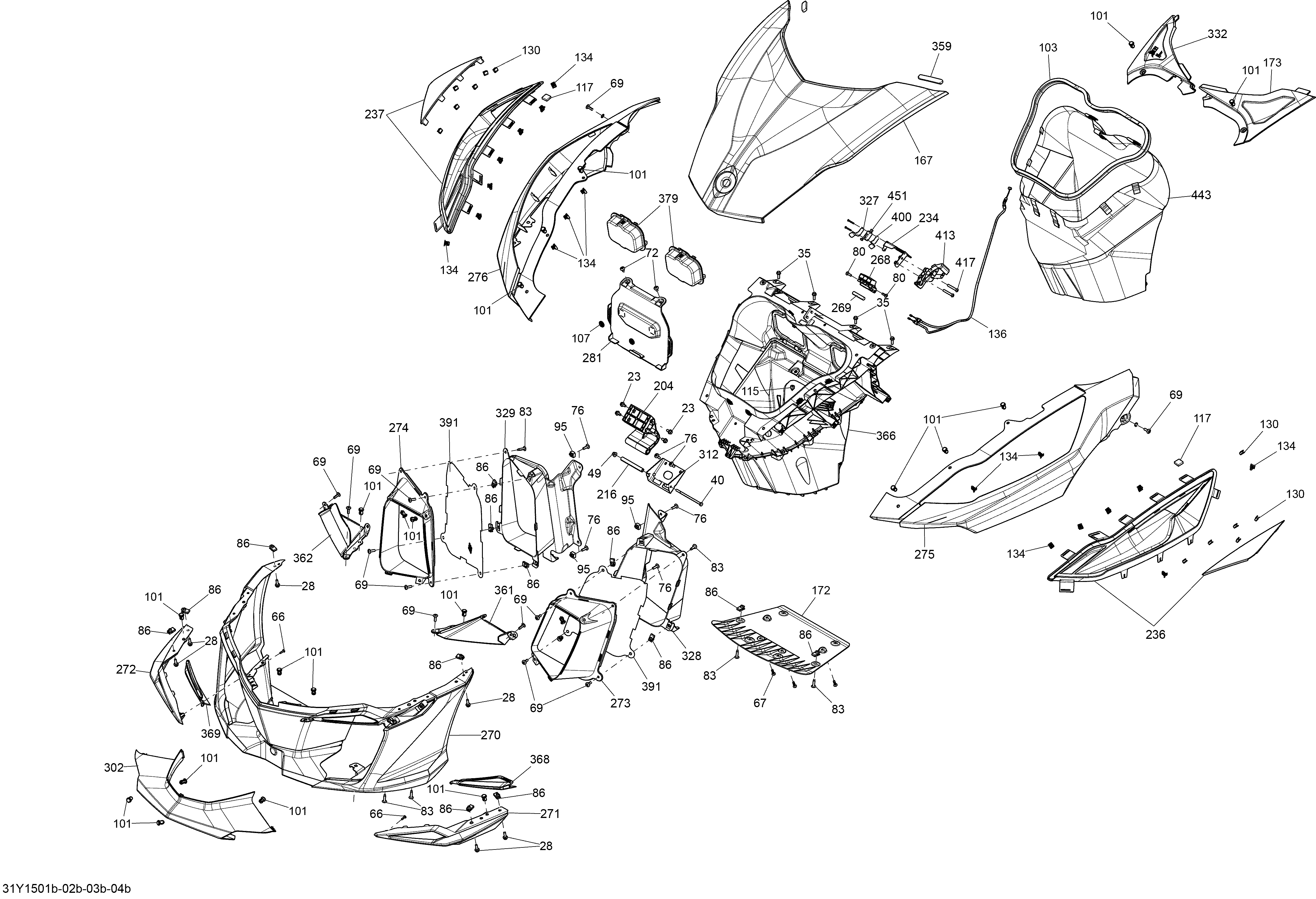

09- Body And Accessories Fr Storage_31Y1504b для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
23207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
28207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
35210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
40230061034 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
49233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
66250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
67250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
69250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
72250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
76250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
80250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
83250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
86250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
95269500725 Nut Housing Ass'yNut Housing Ass'y
-
101293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
103293250260 TrimTrim
-
107293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
115293830005 Rubber BumperRubber Bumper
-
117293830174 Rubber PadRubber Pad
-
134517302785 ClipClip
-
136517305460 Hood CableHood Cable
-
167705008706 Steel Black Met HoodSteel Black Met Hood
-
172705002837 Skid PlateSkid Plate
-
173705002839 LH Service CenterLH Service Center
-
204705003248 Hood ArmHood Arm
-
216705003322 SpacerSpacer
-
234705003691 Actuator BracketActuator Bracket
-
268705004468 Hood GuideHood Guide
-
269705004513 BushingBushing
-
270705008705 Pearl Red Bumper Cover. Model-Intense Red PearlPearl Red Bumper Cover. Model-Intense Red Pearl
-
270705007559 Platinum Silver Bumper Cover. Model-Platinum Silver SatPlatinum Silver Bumper Cover. Model-Platinum Silver Sat
-
271705007443 Chrome Platine LH Front WingChrome Platine LH Front Wing
-
272705007444 Chrome Platine RH Front WingChrome Platine RH Front Wing
-
273705004579 LH Lower Air DuctLH Lower Air Duct
-
274705004580 RH Lower Air DuctRH Lower Air Duct
-
275705008710 Circuit Yellow LH Front Pannel. Model-Intense Red PearlCircuit Yellow LH Front Pannel. Model-Intense Red Pearl
-
275705007567 Platinum Silver LH Front Pannel. Model-Platinum Silver SatPlatinum Silver LH Front Pannel. Model-Platinum Silver Sat
-
276705008711 Circuit Yellow RH Front Pannel. Model-Intense Red PearlCircuit Yellow RH Front Pannel. Model-Intense Red Pearl
-
276705007568 Platinum Silver RH Front Pannel. Model-Platinum Silver SatPlatinum Silver RH Front Pannel. Model-Platinum Silver Sat
-
281705004628 Battery Cover Ass'YBattery Cover Ass'Y
-
302705007104 Black Bumper MouldingBlack Bumper Moulding
-
312705005434 Hood PivotHood Pivot
-
327705005845 Switch Protector PlateSwitch Protector Plate
-
328705005859 LH Rear Air DuctLH Rear Air Duct
-
329705005860 RH Rear Air DuctRH Rear Air Duct
-
332705005903 RH Service CenterRH Service Center
-
359705006824 Neoprene PadNeoprene Pad
-
361705007067 LH Front DeflectorLH Front Deflector
-
362705007068 RH Front DeflectorRH Front Deflector
-
366705007219 Storage Box Ass'yStorage Box Ass'y
-
368705007305 LH Front Wing MouldingLH Front Wing Moulding
-
369705007306 RH Front Wing MouldingRH Front Wing Moulding
-
379705007483 Fuse Cover Ass'yFuse Cover Ass'y
-
391705008132 Radiator GrillRadiator Grill
-
413705007641 Latch Ass'yLatch Ass'y
-
417235563594 Torx Screw M6 X 35Torx Screw M6 X 35
-
451710001861 Position SensorPosition Sensor
