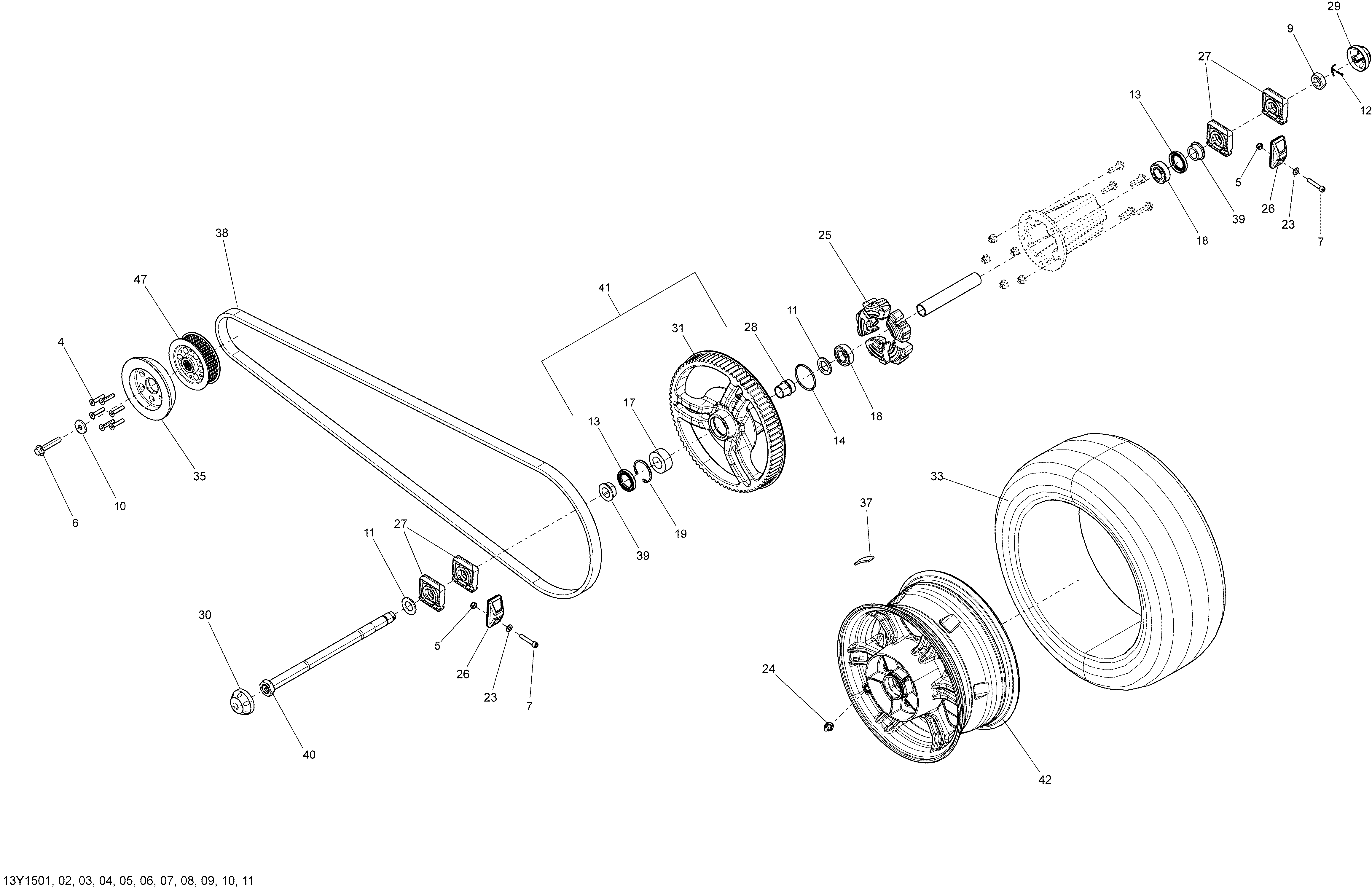

08- Drive System, Rear _13Y1504 для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
4205884046 Socket Screw M8 X 40, Scotch Grip. Model-RS, STSocket Screw M8 X 40, Scotch Grip. Model-RS, ST
-
5250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
7250000713 Socket Screw DIN.912Socket Screw DIN.912
-
9250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
10250200052 WasherWasher
-
11250200156 Flat WasherFlat Washer
-
12250400047 Cotter PinCotter Pin
-
13293200094 SealSeal
-
14293300124 O-RingO-Ring
-
17293350065 Double Row BearingDouble Row Bearing
-
18293350067 Ball BearingBall Bearing
-
19293370053 CirclipCirclip
-
23234081410 Flat Washer 8 mmFlat Washer 8 mm
-
24705400193 Rim Valve With CapRim Valve With Cap
-
25705500736 DamperDamper
-
26705500758 Adjustment SupportAdjustment Support
-
27705500770 Sliding BlockSliding Block
-
28705500853 SpacerSpacer
-
29705501022 Cap RHCap RH
-
30705501081 Cap LHCap LH
-
33705501464 Rear TireRear Tire
-
35705501250 Flywheel. Model-RS, STFlywheel. Model-RS, ST
-
37705502106 Self Adhesive WeightSelf Adhesive Weight
-
38705501576 Drive Belt. Model-RS, STDrive Belt. Model-RS, ST
-
38705501304 Drive Belt. Model-RTDrive Belt. Model-RT
-
39705501602 SpacerSpacer
-
40705501691 Rear Wheel AxleRear Wheel Axle
-
41705502016 Carbon Black Pulley Ass'y, 79 Teeth. Package-S, LTD, SPECarbon Black Pulley Ass'y, 79 Teeth. Package-S, LTD, SPE
-
41705502015 Silver Pulley Ass'y, 79 Teeth. Package-STDSilver Pulley Ass'y, 79 Teeth. Package-STD
-
42705502130 Carbon Black Rear Rim. Package-S, LTD, SPECarbon Black Rear Rim. Package-S, LTD, SPE
-
42705502089 Metallic Silver Rear Rim. Package-STDMetallic Silver Rear Rim. Package-STD
-
44705502093 SpacerSpacer
-
47705502137 Sprocket 28 Thooth. Model-RS, STSprocket 28 Thooth. Model-RS, ST
-
47705502134 Sprocket 28 Thooth. Model-RTSprocket 28 Thooth. Model-RT
