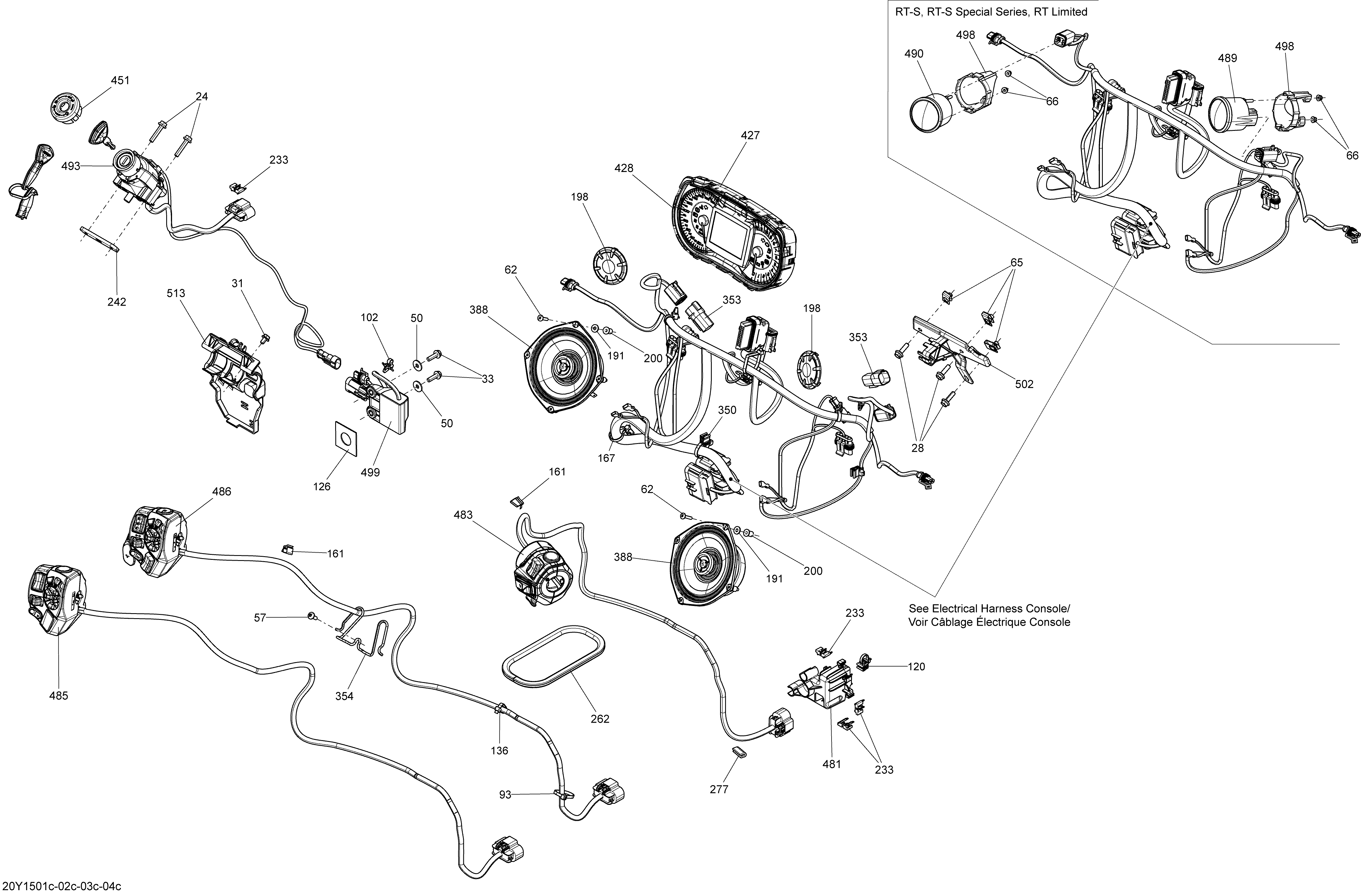

10- Electrical System Front View_20Y1504c для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
24207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
28207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
33210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
50234062410 Flat Washer 6 mmFlat Washer 6 mm
-
57250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
62250000405 Torx Screw M4 X 20Torx Screw M4 X 20
-
65250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
66250100142 Hex. Serrated Flange NutHex. Serrated Flange Nut
-
93293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
102293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
120293750058 Locking Tie RapLocking Tie Rap
-
126293830091 Rubber BumperRubber Bumper
-
136414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
161414227300 ClipClip
-
167515175220 Tie RapTie Rap
-
191517225900 Flat WasherFlat Washer
-
200705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
233710001222 LockLock
-
242710001365 Switch SupportSwitch Support
-
262271001530 TrimTrim
-
277271001530 TrimTrim
-
350710002899 Clip Tie-RapClip Tie-Rap
-
354710003017 Grommet SpindleGrommet Spindle
-
388710003233 Front SpeakerFront Speaker
-
427710003944 Speedometer. Includes 427 to 428Speedometer. Includes 427 to 428
-
428415129349 LensLens
-
451710003594 Switch CoverSwitch Cover
-
481710004086 Connector SupportConnector Support
-
483710004146 RH Switch HousingRH Switch Housing
-
486710004165 LH Switch Housing. SE6LH Switch Housing. SE6
-
489710004210 Temp GaugeTemp Gauge
-
490710004208 Fuel GaugeFuel Gauge
-
493710004277 Ignition Switch. Include 493a, bIgnition Switch. Include 493a, b
-
493a219800373 DESS AntennaDESS Antenna
-
493b710004408 Ignition Key KitIgnition Key Kit
-
498710004239 Housing SupportHousing Support
-
499710004241 DESS ModuleDESS Module
-
502710004256 Connector SupportConnector Support
-
513710004308 Wire SupportWire Support
