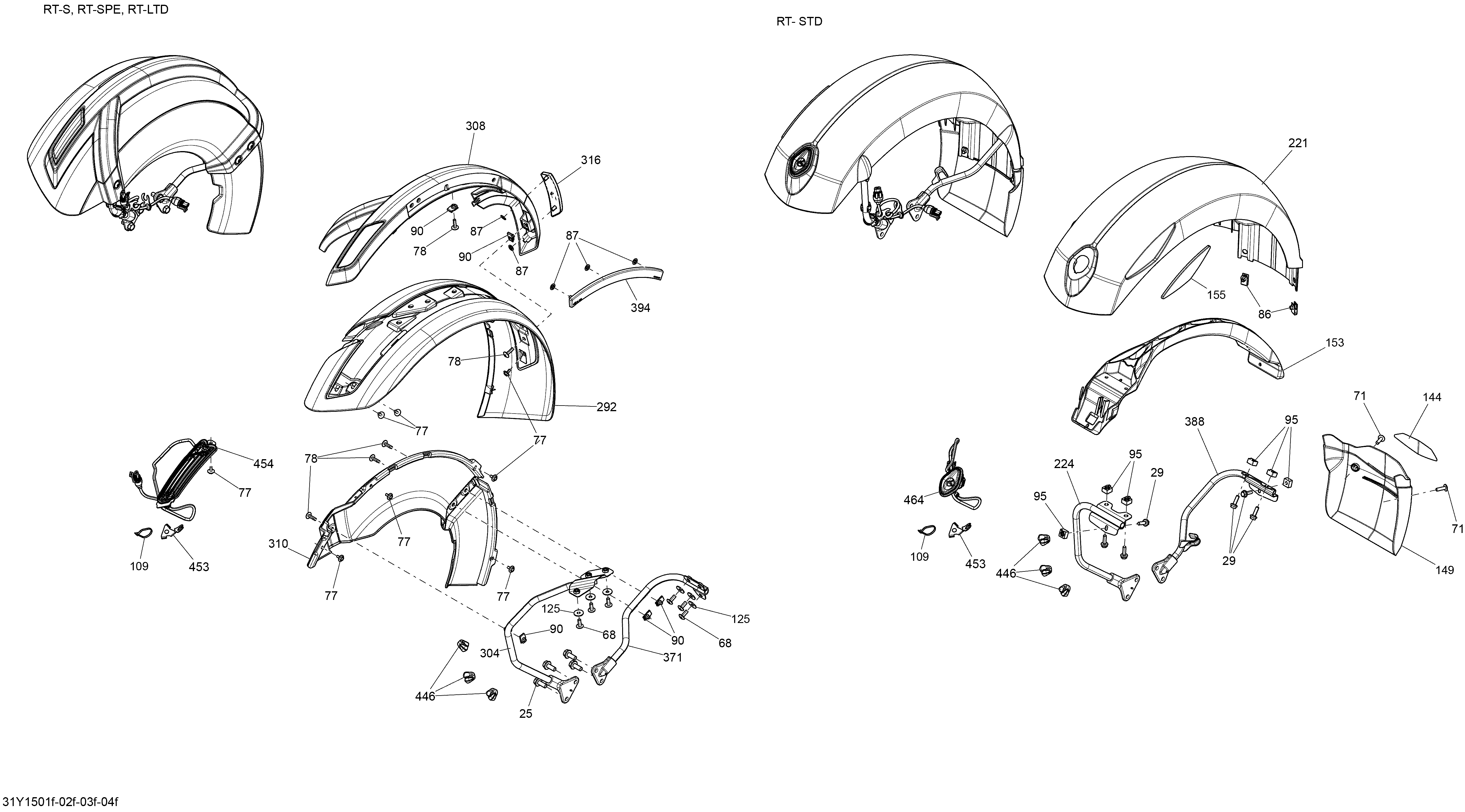

09- Body And Accessories Front Fender_31Y1504f для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
25207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
68250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
77250000585 Plastite Screw K-40 M4 X 10Plastite Screw K-40 M4 X 10
-
78250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
87250100163 Pressure NutPressure Nut
-
90250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
109293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
125250200082 Flat WasherFlat Washer
-
292705008026 Steel Black RH Front FenderSteel Black RH Front Fender
-
292705008027 Steel Black LH Front FenderSteel Black LH Front Fender
-
292705008718 Pearl Red RH Front Fender. Model-Intense Red PearlPearl Red RH Front Fender. Model-Intense Red Pearl
-
292705008719 Pearl Red LH Front Fender. Model-Intense Red PearlPearl Red LH Front Fender. Model-Intense Red Pearl
-
304705005264 RH Painted Fender Front SupportRH Painted Fender Front Support
-
304705005265 LH Painted Fender Front SupportLH Painted Fender Front Support
-
308705008720 Pearl Red LH Front Fender Moulding. Model-Intense Red PearlPearl Red LH Front Fender Moulding. Model-Intense Red Pearl
-
308705008721 Pearl Red RH Front Fender Moulding. Model-Intense Red PearlPearl Red RH Front Fender Moulding. Model-Intense Red Pearl
-
308705008744 Steel Black Met LH Front Fender MouldingSteel Black Met LH Front Fender Moulding
-
308705008745 Steel Black Met RH Front Fender MouldingSteel Black Met RH Front Fender Moulding
-
310705007616 LH Inner FenderLH Inner Fender
-
310705007617 RH Inner FenderRH Inner Fender
-
316219800275 LH Rear Reflector Ass'y. Model-Australia, Brezil, Europe, JapanLH Rear Reflector Ass'y. Model-Australia, Brezil, Europe, Japan
-
316219800276 RH Rear Reflector Ass'y. Model-Australia, Brezil, Europe, JapanRH Rear Reflector Ass'y. Model-Australia, Brezil, Europe, Japan
-
316705005667 LH Rear Reflector. Model-North AmericaLH Rear Reflector. Model-North America
-
316705005949 RH Rear Reflector. Model-North AmericaRH Rear Reflector. Model-North America
-
371705008116 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
371705008117 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
394705008661 Yellow LH ReflectorYellow LH Reflector
-
394705008662 Yellow RH ReflectorYellow RH Reflector
-
446710001452 Wire BracketWire Bracket
-
453710002018 RH Wire SupportRH Wire Support
-
453710002019 LH Wire SupportLH Wire Support
-
454710004032 LH Position LightLH Position Light
-
454710004033 RH Position LightRH Position Light
