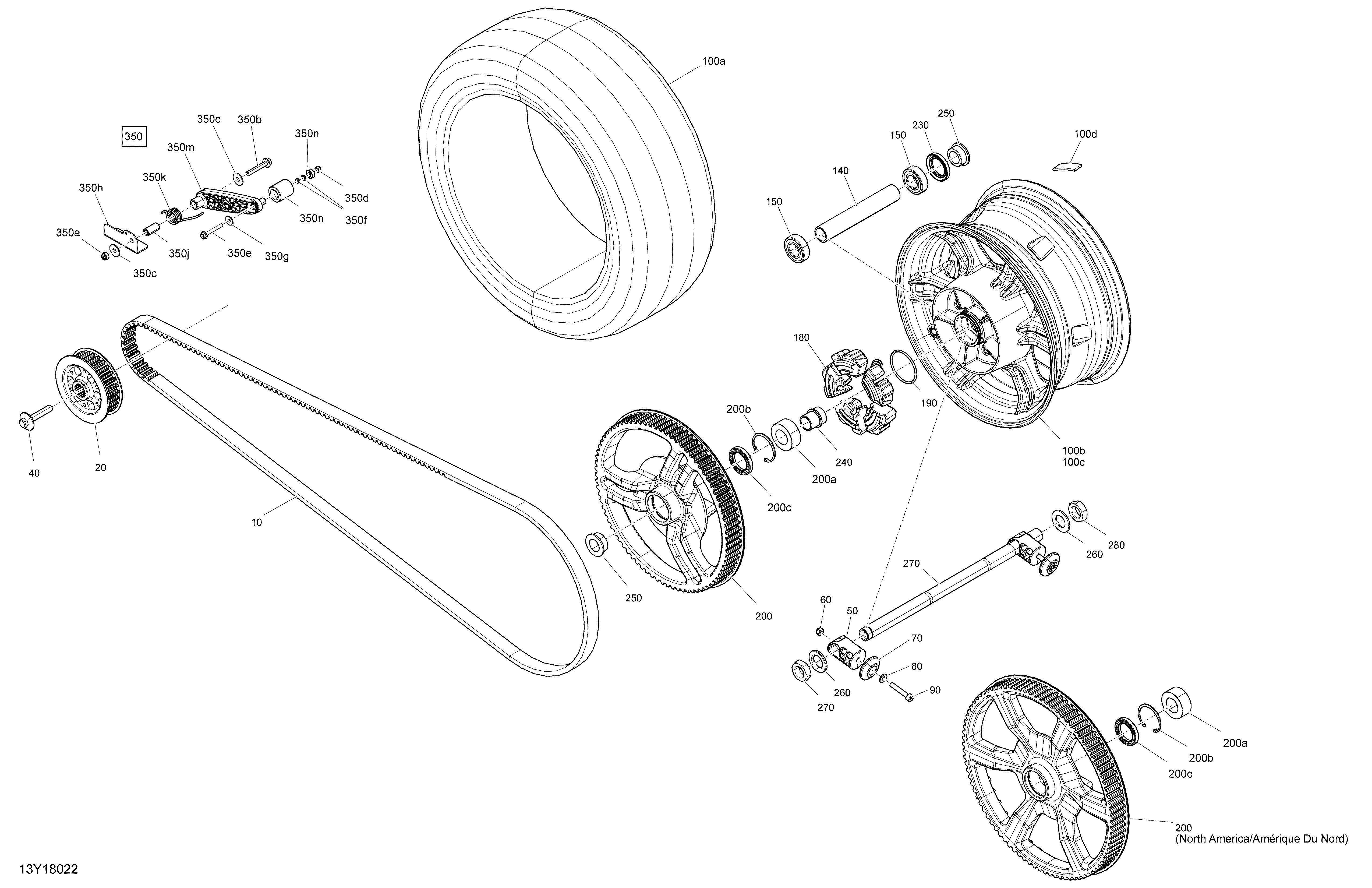

08- Rear Drive для BRP F3 S SM6 & SE6 - 2018
-
№АртикулНазвание
-
10705501304 Drive Belt. All Except North AmericaDrive Belt. All Except North America
-
10705502157 Drive Belt. North AmericaDrive Belt. North America
-
20705502134 Sprocket 28 ThoothSprocket 28 Thooth
-
40705502292 Screw-Hex.Flange Din.6921 S.GripScrew-Hex.Flange Din.6921 S.Grip
-
50705502027 Sliding BlockSliding Block
-
60250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
70705502085 End Stop AdjusmentEnd Stop Adjusment
-
80503192494 WasherWasher
-
90250000713 Socket Screw DIN.912Socket Screw DIN.912
-
100a705501464 Rear TireRear Tire
-
100b705501992 Black - Rear Rim. All Models Except Jet BlackBlack - Rear Rim. All Models Except Jet Black
-
100b705502651 Rear Wheel. Model Jet BlackRear Wheel. Model Jet Black
-
100c705400193 Rim Valve With CapRim Valve With Cap
-
100d705502106 Self Adhesive Weight, 5G 20mmSelf Adhesive Weight, 5G 20mm
-
140705502093 SpacerSpacer
-
150293350115 Ball BearingBall Bearing
-
180705500736 DamperDamper
-
190293300124 O-RingO-Ring
-
200705502016 Carbon Black - Pulley Ass'y, 79 Teeth. All Except North America. Includes 200 to 200cCarbon Black - Pulley Ass'y, 79 Teeth. All Except North America. Includes 200 to 200c
-
200705502187 Carbon Black Sprocket 89 Teeth Ass'y. North America. Includes 200 to 200cCarbon Black Sprocket 89 Teeth Ass'y. North America. Includes 200 to 200c
-
200a293350065 Double Row BearingDouble Row Bearing
-
200b293370053 CirclipCirclip
-
200c293200094 SealSeal
-
230293200094 SealSeal
-
240705500853 SpacerSpacer
-
250705501602 SpacerSpacer
-
260250200163 Flat WasherFlat Washer
-
270705502024 Rear Axle Ass'yRear Axle Ass'y
-
280250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
350219800431 Idler Belt Kit F3. Includes 350 to 350nIdler Belt Kit F3. Includes 350 to 350n
-
350a232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
350b207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
350c234082410 Flat Washer 8 mmFlat Washer 8 mm
-
350d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
350e207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
350f514053953 WasherWasher
-
350g234062410 Flat Washer 6 mmFlat Washer 6 mm
-
350h705502485 Lever SupportLever Support
-
350j705502484 BushingBushing
-
350k705502483 Torsion SpringTorsion Spring
-
350m705502763 Lever ArmLever Arm
-
350n705502613 Pulley AssemblyPulley Assembly
