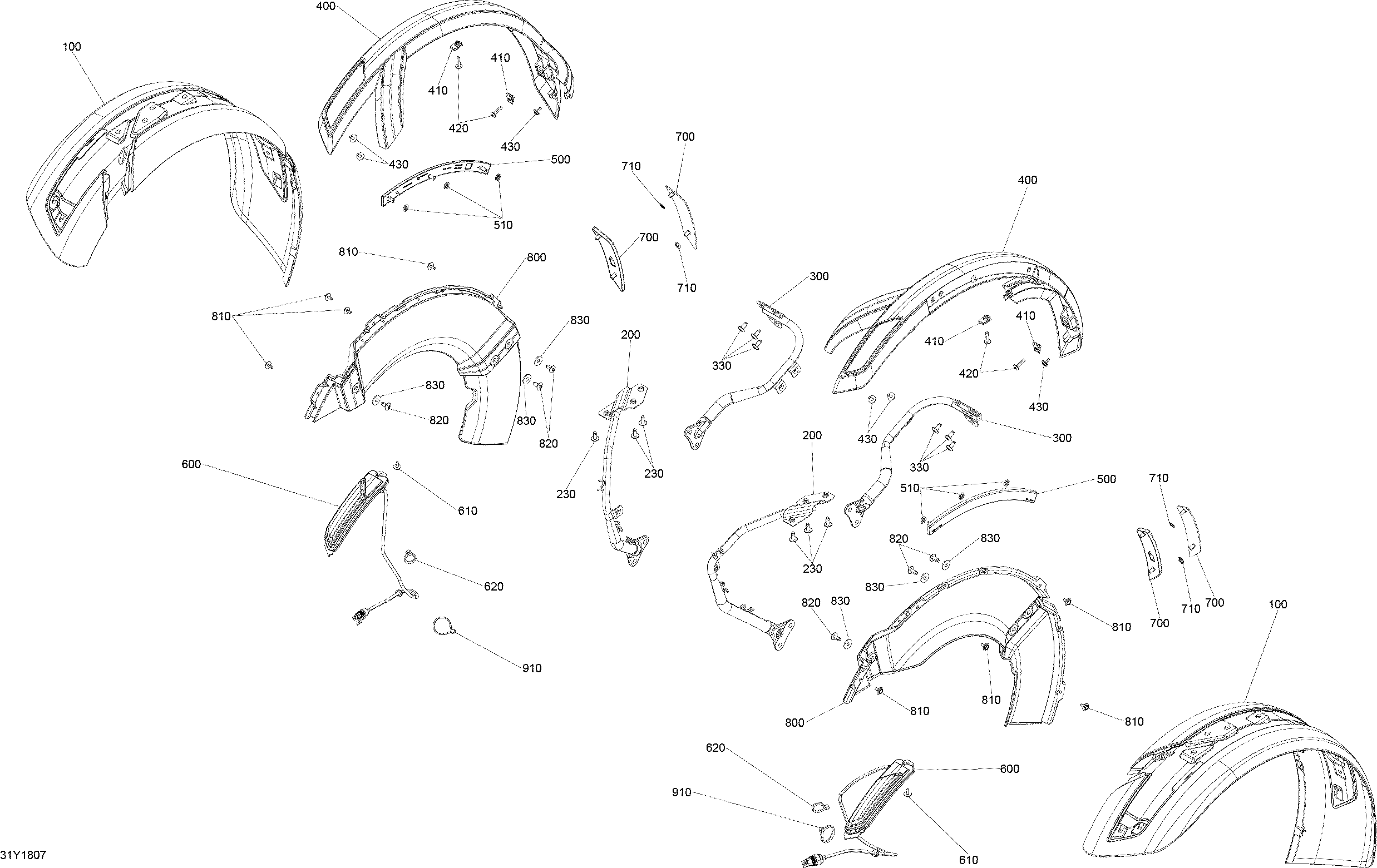

09- Body And Accessories - Fender для BRP F3 S SM6 & SE6 - 2018
-
№АртикулНазвание
-
100705006908 Metallic Black Front Fender LH. Model Circuit YellowMetallic Black Front Fender LH. Model Circuit Yellow
-
100705006908 Metallic Black Front Fender LH. Model Monolith BlackMetallic Black Front Fender LH. Model Monolith Black
-
100705006908 Metallic Black Front Fender LH. Model Oxford BlueMetallic Black Front Fender LH. Model Oxford Blue
-
100705012666 Jet Black, LH Front Fender. Model Jet BlackJet Black, LH Front Fender. Model Jet Black
-
100705006909 Metallic Black Front Fender RH. Model Monolith BlackMetallic Black Front Fender RH. Model Monolith Black
-
100705006909 Metallic Black Front Fender RH. Model Oxford BlueMetallic Black Front Fender RH. Model Oxford Blue
-
100705006909 Metallic Black Front Fender RH. Model Circuit YellowMetallic Black Front Fender RH. Model Circuit Yellow
-
100705012669 Jet Black, RH Fr Fender. Model Jet BlackJet Black, RH Fr Fender. Model Jet Black
-
200705011297 LH Front SupportLH Front Support
-
200705011301 RH Front SupportRH Front Support
-
230250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
300219800414 LH SupportLH Support
-
300705011302 RH Rear SupportRH Rear Support
-
330250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
400705006912 Carbone Black Front Fender Moulding LH. Model Circuit YellowCarbone Black Front Fender Moulding LH. Model Circuit Yellow
-
400705006912 Carbone Black Front Fender Moulding LH. Model Monolith BlackCarbone Black Front Fender Moulding LH. Model Monolith Black
-
400705006912 Carbone Black Front Fender Moulding LH. Model Oxford BlueCarbone Black Front Fender Moulding LH. Model Oxford Blue
-
400705012667 Jet Black, LH Front Fender Moulding. Model Jet BlackJet Black, LH Front Fender Moulding. Model Jet Black
-
400705006913 Carbone Black Front Fender Moulding RH. Model Circuit YellowCarbone Black Front Fender Moulding RH. Model Circuit Yellow
-
400705006913 Carbone Black Front Fender Moulding RH. Model Monolith BlackCarbone Black Front Fender Moulding RH. Model Monolith Black
-
400705006913 Carbone Black Front Fender Moulding RH. Model Oxford BlueCarbone Black Front Fender Moulding RH. Model Oxford Blue
-
400705012693 Jet Black, RH Front Fender Moulding. Model Jet BlackJet Black, RH Front Fender Moulding. Model Jet Black
-
410250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
430250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
500705008661 Yellow LH ReflectorYellow LH Reflector
-
500705008662 Yellow RH ReflectorYellow RH Reflector
-
510250100163 Pressure NutPressure Nut
-
510250100163 Pressure NutPressure Nut
-
600710004032 LH Position Light. Model Oxford BlueLH Position Light. Model Oxford Blue
-
600710004032 LH Position Light. Model Monolith BlackLH Position Light. Model Monolith Black
-
600710004032 LH Position Light. Model Circuit YellowLH Position Light. Model Circuit Yellow
-
600710006200 LH Position Light. Option 10THLH Position Light. Option 10TH
-
600710004033 RH Position Light. Model Oxford BlueRH Position Light. Model Oxford Blue
-
600710004033 RH Position Light. Model Monolith BlackRH Position Light. Model Monolith Black
-
600710004033 RH Position Light. Model Circuit YellowRH Position Light. Model Circuit Yellow
-
600710006199 RH Position Light. Option 10THRH Position Light. Option 10TH
-
610250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
620293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
700705005667 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
700219800275 LH Rear Reflector Ass'y. All Except North AmericaLH Rear Reflector Ass'y. All Except North America
-
700705005949 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
700219800276 RH Rear Reflector Ass'y. All Except North AmericaRH Rear Reflector Ass'y. All Except North America
-
710250100163 Pressure NutPressure Nut
-
710250100163 Pressure NutPressure Nut
-
800705007616 LH Inner FenderLH Inner Fender
-
800705007617 RH Inner FenderRH Inner Fender
-
810250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
810250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
820250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
820250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
830250200164 Flat washer M6Flat washer M6
-
830250200164 Flat washer M6Flat washer M6
-
910293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
910293750002 Tie-Rap 142 mmTie-Rap 142 mm
