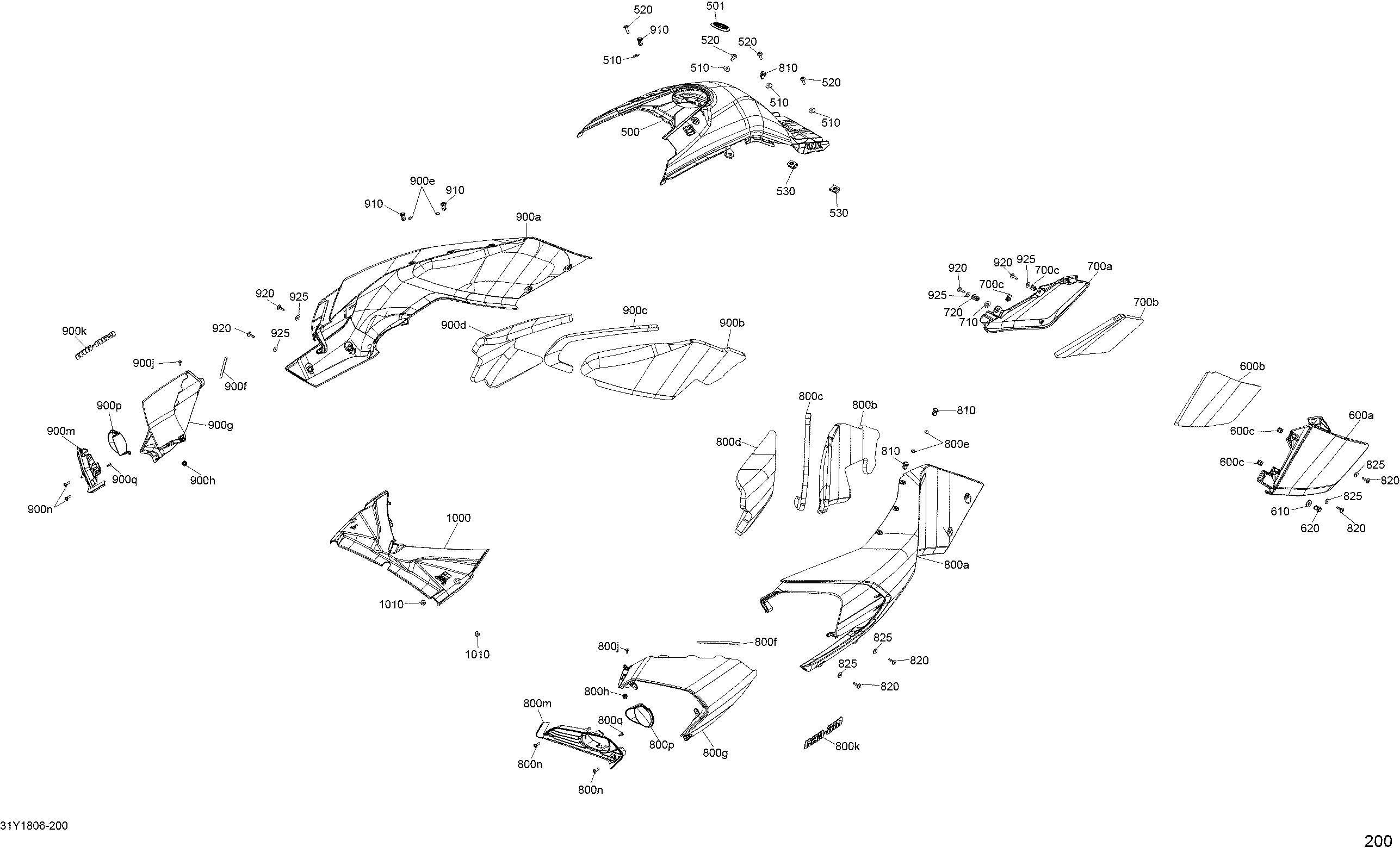

09- Body And Accessories - Fairing для BRP F3 S SM6 & SE6 - 2018
-
№АртикулНазвание
-
500705008246 Steel Black Fuel Tank Cover. Model Monolith BlackSteel Black Fuel Tank Cover. Model Monolith Black
-
500705008246 Steel Black Fuel Tank Cover. Model Oxford BlueSteel Black Fuel Tank Cover. Model Oxford Blue
-
500705008246 Steel Black Fuel Tank Cover. Model Circuit YellowSteel Black Fuel Tank Cover. Model Circuit Yellow
-
500705013186 Drilled Jet Black, Tank Cover. Model Jet BlackDrilled Jet Black, Tank Cover. Model Jet Black
-
501705012298 Logo 10th. Option 10THLogo 10th. Option 10TH
-
510234062670 Flat Washer, StainlessFlat Washer, Stainless
-
520250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
600a705009918 Lh Low Fairing Monolith Black. Model Monolith BlackLh Low Fairing Monolith Black. Model Monolith Black
-
600a705010775 LH Oxford Blue Low Fairing. Model Oxford BlueLH Oxford Blue Low Fairing. Model Oxford Blue
-
600a705010776 LH Circuit Yellow Low Fairing. Model Circuit YellowLH Circuit Yellow Low Fairing. Model Circuit Yellow
-
600a705012230 Jet Black, LH Low Fairing. Model Jet BlackJet Black, LH Low Fairing. Model Jet Black
-
600b705009153 Acoustic FoamAcoustic Foam
-
600c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
610705010890 SpacerSpacer
-
620293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
700a705009919 Rh Low Fairing Monolith Black. Model Monolith BlackRh Low Fairing Monolith Black. Model Monolith Black
-
700a705010777 RH Oxford Blue Low Fairing. Model Oxford BlueRH Oxford Blue Low Fairing. Model Oxford Blue
-
700a705010778 RH Circuit Yellow Low Fairing. Model Circuit YellowRH Circuit Yellow Low Fairing. Model Circuit Yellow
-
700a705012231 Jet Black, RH Lower Fairing. Model Jet BlackJet Black, RH Lower Fairing. Model Jet Black
-
700b705009154 Acoustic FoamAcoustic Foam
-
700c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
710705010890 SpacerSpacer
-
720293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
800a705010779 Oxford Blue LH Lateral Fairing. Model Oxford BlueOxford Blue LH Lateral Fairing. Model Oxford Blue
-
800a705010780 Circuit Yellow LH Lateral Fairing. Model Circuit YellowCircuit Yellow LH Lateral Fairing. Model Circuit Yellow
-
800a705010847 Monolith Black LH Lateral Fairing. Model Monolith BlackMonolith Black LH Lateral Fairing. Model Monolith Black
-
800a705012238 Jet Black, LH Fairing. Model Jet BlackJet Black, LH Fairing. Model Jet Black
-
800b705009155 Acoustic FoamAcoustic Foam
-
800c705009157 Acoustic FoamAcoustic Foam
-
800d705009159 Acoustic FoamAcoustic Foam
-
800e705006634 Polyurethane StopperPolyurethane Stopper
-
800f293250143 SealSeal
-
800g705011173 Hyper Silver, LH Air Scoop. Model Oxford BlueHyper Silver, LH Air Scoop. Model Oxford Blue
-
800g705011173 Hyper Silver, LH Air Scoop. Model Circuit YellowHyper Silver, LH Air Scoop. Model Circuit Yellow
-
800g705011175 Carbon Black, LH Air Scoop. Model Monolith BlackCarbon Black, LH Air Scoop. Model Monolith Black
-
800g705012448 Jet Black, LH Air Scoop. Model Jet BlackJet Black, LH Air Scoop. Model Jet Black
-
800h705009430 Anchor PinAnchor Pin
-
800j250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
800k704904675 Brillant Chrome CAN-AM Logo. Model Monolith BlackBrillant Chrome CAN-AM Logo. Model Monolith Black
-
800k704904675 Brillant Chrome CAN-AM Logo. Model Oxford BlueBrillant Chrome CAN-AM Logo. Model Oxford Blue
-
800k704904675 Brillant Chrome CAN-AM Logo. Model Circuit YellowBrillant Chrome CAN-AM Logo. Model Circuit Yellow
-
800k704906741 Liquid Gold, Logo Can-am. Option 10THLiquid Gold, Logo Can-am. Option 10TH
-
800m
-
800n250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800p705007787 LH Cap Ligth. North AmericaLH Cap Ligth. North America
-
800p705008995 LH Heat Shield. All Except North AmericaLH Heat Shield. All Except North America
-
800q250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
820250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
825234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
900a705010781 Oxford Blue RH Lateral Fairing. Model Oxford BlueOxford Blue RH Lateral Fairing. Model Oxford Blue
-
900a705010782 Circuit Yellow RH Lateral Fairing. Model Circuit YellowCircuit Yellow RH Lateral Fairing. Model Circuit Yellow
-
900a705010839 Monolith Black RH Lateral Fairing. Model Monolith BlackMonolith Black RH Lateral Fairing. Model Monolith Black
-
900a705012241 Jet Black, RH Lateral Fairing. Model Jet BlackJet Black, RH Lateral Fairing. Model Jet Black
-
900b705009156 Acoustic FoamAcoustic Foam
-
900c705009158 Acoustic FoamAcoustic Foam
-
900d705009160 Acoustic FoamAcoustic Foam
-
900e705006634 Polyurethane StopperPolyurethane Stopper
-
900f293250143 SealSeal
-
900g705011174 Hyper Silver, RH Air Scoop. Model Circuit YellowHyper Silver, RH Air Scoop. Model Circuit Yellow
-
900g705011174 Hyper Silver, RH Air Scoop. Model Oxford BlueHyper Silver, RH Air Scoop. Model Oxford Blue
-
900g705011176 Carbon Black, RH Air Scoop. Model Monolith BlackCarbon Black, RH Air Scoop. Model Monolith Black
-
900g705012449 Jet Black, RH Air Scoop. Model Jet BlackJet Black, RH Air Scoop. Model Jet Black
-
900h705009430 Anchor PinAnchor Pin
-
900j250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
900k704904675 Brillant Chrome CAN-AM Logo. Model Oxford BlueBrillant Chrome CAN-AM Logo. Model Oxford Blue
-
900k704904675 Brillant Chrome CAN-AM Logo. Model Circuit YellowBrillant Chrome CAN-AM Logo. Model Circuit Yellow
-
900k704904675 Brillant Chrome CAN-AM Logo. Model Monolith BlackBrillant Chrome CAN-AM Logo. Model Monolith Black
-
900k704906741 Liquid Gold, Logo Can-am. Option 10THLiquid Gold, Logo Can-am. Option 10TH
-
900m
-
900n250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
900p705008963 RH Cap Ligth. North AmericaRH Cap Ligth. North America
-
900p705008996 RH Heat Shield. All Except North AmericaRH Heat Shield. All Except North America
-
900q250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
920250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
925234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
1000705008058 Service Center FairingService Center Fairing
-
1010293830005 Rubber BumperRubber Bumper
