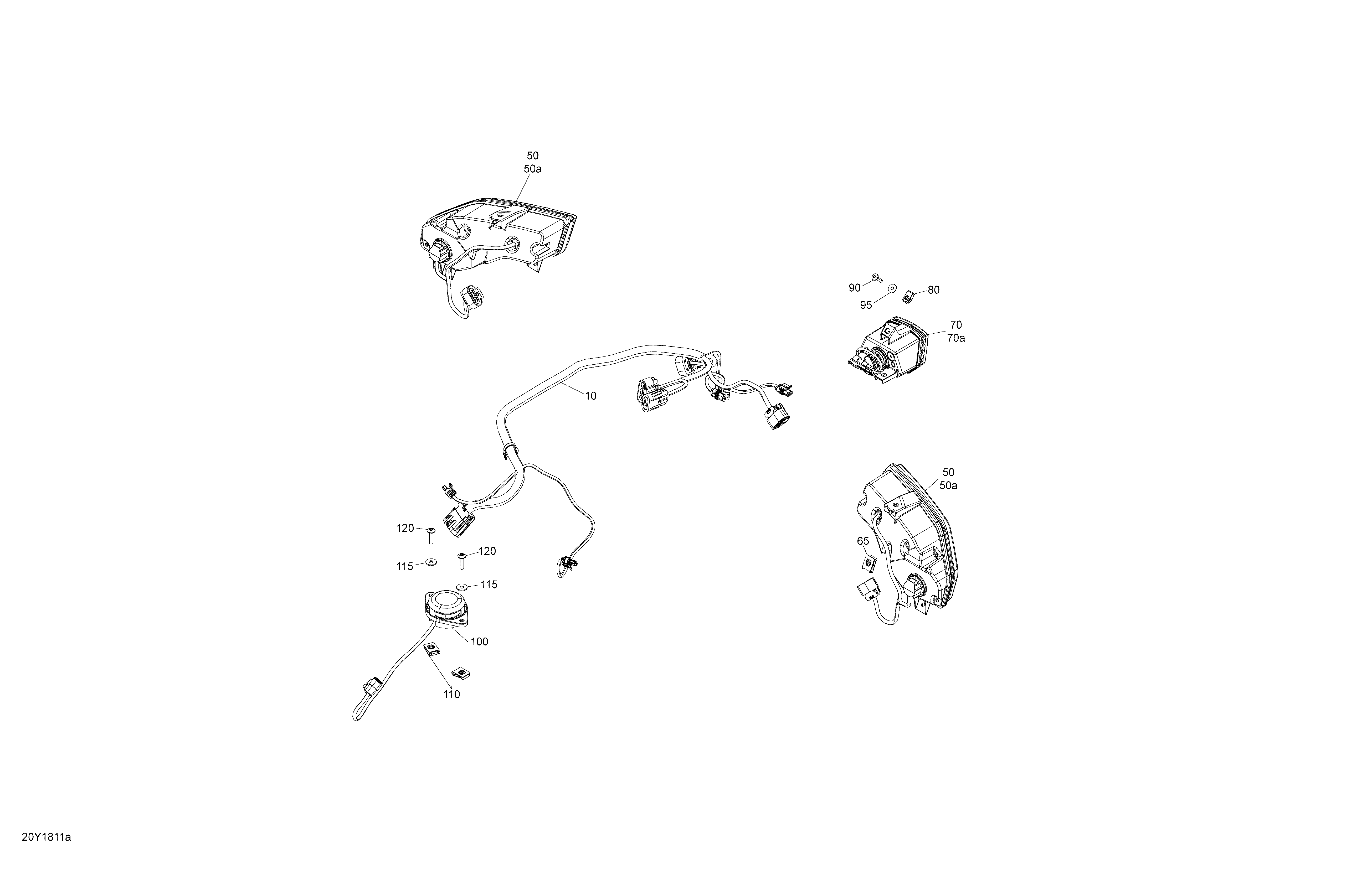

10- Electrical Cargo F3 - STD & S для BRP F3 S SM6 & SE6 - 2018
-
№АртикулНазвание
-
10710004961 Cargo Harness. North AmericaCargo Harness. North America
-
10710004962 Cargo Harness. Australia & EuropeCargo Harness. Australia & Europe
-
10710004963 Cargo Harness. JapanCargo Harness. Japan
-
15710005121 Rear Light Adaptor. JapanRear Light Adaptor. Japan
-
20250100143 Extruded Panel Nut M4 X 0.7. North AmericaExtruded Panel Nut M4 X 0.7. North America
-
30234041600 Flat Washer 4 mm, Stainless. North AmericaFlat Washer 4 mm, Stainless. North America
-
40207144060 Hex. Screw M4 X 40. North AmericaHex. Screw M4 X 40. North America
-
50710003707 LH Rear Flasher. Except Japan. Includes 50 to 50aLH Rear Flasher. Except Japan. Includes 50 to 50a
-
50710004396 LH Rear Light. Japan. Includes 50 to 50aLH Rear Light. Japan. Includes 50 to 50a
-
50710003708 RH Rear Flasher. Except Japan. Includes 50 to 50aRH Rear Flasher. Except Japan. Includes 50 to 50a
-
50710004397 RH Rear Light. Japan. Includes 50 to 50aRH Rear Light. Japan. Includes 50 to 50a
-
50a219800304 Flasher BulbFlasher Bulb
-
70710003879 Reverse Light. Includes 70 to 70aReverse Light. Includes 70 to 70a
-
70a219800322 Bulb 12V 10WBulb 12V 10W
-
80250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
90250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
95234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
100710005543 Passanger Detection SwitchPassanger Detection Switch
-
110250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
115234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
130710004400 Rear Flasher. Australia & Europe. Includes 130 to 130aRear Flasher. Australia & Europe. Includes 130 to 130a
-
130710004400 Rear Flasher. Australia & Europe. Includes 130 to 130aRear Flasher. Australia & Europe. Includes 130 to 130a
-
130a715900043 Bulb 12V 21W. Australia & EuropeBulb 12V 21W. Australia & Europe
