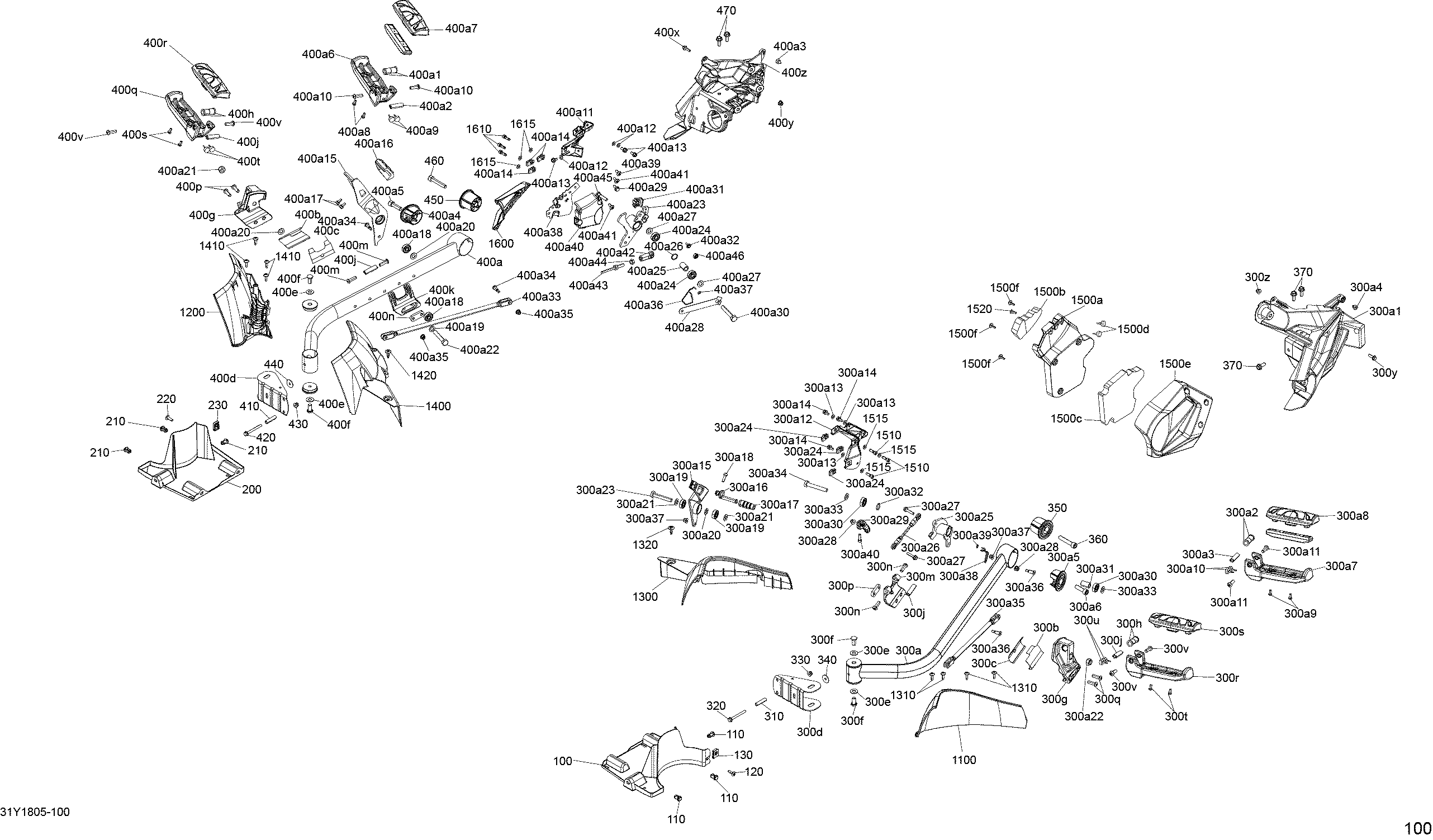

09- Body And Accessories - Footrest для BRP F3 S SM6 & SE6 - 2018
-
№АртикулНазвание
-
100705007785 LH Front Skid PlateLH Front Skid Plate
-
110293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
120250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
130250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
200705007786 RH Front Skid PlateRH Front Skid Plate
-
210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
220250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
230250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
300a705008955 LH Black Cabon Footrest Support. Model Oxford BlueLH Black Cabon Footrest Support. Model Oxford Blue
-
300a705008955 LH Black Cabon Footrest Support. Model Monolith BlackLH Black Cabon Footrest Support. Model Monolith Black
-
300a705010834 LH Yellow Cabon Footrest Support. Model Circuit YellowLH Yellow Cabon Footrest Support. Model Circuit Yellow
-
300a705012450 Liquid Gold, LH Support. Option 10THLiquid Gold, LH Support. Option 10TH
-
300b705009449 LH Frame Protector OutsideLH Frame Protector Outside
-
300c705009025 LH Frame Protector InsideLH Frame Protector Inside
-
300d705008950 Tube SupportTube Support
-
300e506152582 WasherWasher
-
300f250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
300g705007798 LH Slider OutsideLH Slider Outside
-
300h705008166 Spacer BushingSpacer Bushing
-
300j705013187 Pivot OinPivot Oin
-
300m705013117 Black, LH Slider ClampBlack, LH Slider Clamp
-
300n250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300p705008553 Back FlangeBack Flange
-
300q250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300r705008663 LH Carbon Black FootpegLH Carbon Black Footpeg
-
300s705011281 PadPad
-
300t250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
300u708000759 Rubber StopperRubber Stopper
-
300v250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300y207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
300z233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300a1705009401 LH Carbon Black Rear Footrest Support. Model Monolith BlackLH Carbon Black Rear Footrest Support. Model Monolith Black
-
300a1705009401 LH Carbon Black Rear Footrest Support. Model Circuit YellowLH Carbon Black Rear Footrest Support. Model Circuit Yellow
-
300a1705009401 LH Carbon Black Rear Footrest Support. Model Oxford BlueLH Carbon Black Rear Footrest Support. Model Oxford Blue
-
300a1705012451 Liquid Gold, LH Support. Option 10THLiquid Gold, LH Support. Option 10TH
-
300a2705008166 Spacer BushingSpacer Bushing
-
300a3705013187 Pivot OinPivot Oin
-
300a4293830005 Rubber BumperRubber Bumper
-
300a5705010203 Pivot CapPivot Cap
-
300a6244003560 Socket Head Screw M10 X 35, Scotch Grip. Not ShownSocket Head Screw M10 X 35, Scotch Grip. Not Shown
-
300a7705008663 LH Carbon Black FootpegLH Carbon Black Footpeg
-
300a8705011281 PadPad
-
300a9250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
300a10708000759 Rubber StopperRubber Stopper
-
300a11250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300a12705008961 LH Fairing SupportLH Fairing Support
-
300a13234061670 Flat Washer 6 mmFlat Washer 6 mm
-
300a14210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
300a15707001699 Gear Shift Lever. ManualGear Shift Lever. Manual
-
300a16707000455 Adjustment Rod. ManualAdjustment Rod. Manual
-
300a17707000456 End Clutch Pedal. ManualEnd Clutch Pedal. Manual
-
300a18514054626 Socket Head Screw M6 X 22, Scotch Grip. ManualSocket Head Screw M6 X 22, Scotch Grip. Manual
-
300a19705600458 Bearing. ManualBearing. Manual
-
300a20503192496 Washer. ManualWasher. Manual
-
300a21503183800 Washer. ManualWasher. Manual
-
300a22233601466 Elastic Locking Nut M10. ManualElastic Locking Nut M10. Manual
-
300a23207006056 Hex. Cap Screw M10 X 60. ManualHex. Cap Screw M10 X 60. Manual
-
300a24250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
300a25707001573 Shifter Lever RockerShifter Lever Rocker
-
300a26504152819 Linkage RodLinkage Rod
-
300a27207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
300a28233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300a29707000926 Shifter ArmShifter Arm
-
300a30705600458 Bearing. ManualBearing. Manual
-
300a31705600541 Bushing. ManualBushing. Manual
-
300a32293300191 O-Ring. ManualO-Ring. Manual
-
300a33503183800 Washer. ManualWasher. Manual
-
300a34207206534 Hex. Screw M10 X 65, Scotch Grip. ManualHex. Screw M10 X 65, Scotch Grip. Manual
-
300a35219400627 Shifter Linkage Kit (295.9 mm) . ManualShifter Linkage Kit (295.9 mm) . Manual
-
300a36250000714 Flanged Screw M6 X 26. ManualFlanged Screw M6 X 26. Manual
-
300a37233261466 Hex. Flanged Elastic Nut M6. ManualHex. Flanged Elastic Nut M6. Manual
-
300a38707001753 Quick-Attach Bracket. ManualQuick-Attach Bracket. Manual
-
300a39250100178 Push Nut. ManualPush Nut. Manual
-
300a40514054626 Socket Head Screw M6 X 22, Scotch Grip. ManualSocket Head Screw M6 X 22, Scotch Grip. Manual
-
310705008219 SpacerSpacer
-
320250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
330233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
340250200029 Washer M6Washer M6
-
350705010202 Pivot CapPivot Cap
-
360205505560 Socket Head ScrewSocket Head Screw
-
370207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
400a705008954 RH Carbon Black Footrest Support. Model Oxford BlueRH Carbon Black Footrest Support. Model Oxford Blue
-
400a705008954 RH Carbon Black Footrest Support. Model Monolith BlackRH Carbon Black Footrest Support. Model Monolith Black
-
400a705010853 RH Yellow Footrest Support. Model Circuit YellowRH Yellow Footrest Support. Model Circuit Yellow
-
400a705012452 Liquid Gold, RH Support. Option 10THLiquid Gold, RH Support. Option 10TH
-
400b705009448 RH Frame Protector OutsideRH Frame Protector Outside
-
400c705009023 RH Frame Protector InsideRH Frame Protector Inside
-
400d705008950 Tube SupportTube Support
-
400e506152582 WasherWasher
-
400f250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
400g705008158 RH Slider OutsideRH Slider Outside
-
400h705008166 Spacer BushingSpacer Bushing
-
400j705013187 Pivot OinPivot Oin
-
400k705013120 Black, RH Slider ClampBlack, RH Slider Clamp
-
400m250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400n705008553 Back FlangeBack Flange
-
400p250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400q705008160 RH Carbon Black FootpegRH Carbon Black Footpeg
-
400r705011281 PadPad
-
400s250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
400t708000759 Rubber StopperRubber Stopper
-
400v250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400x207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
400y233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
400z705009402 RH Carbon Black Rear Footrest Support. Model Monolith BlackRH Carbon Black Rear Footrest Support. Model Monolith Black
-
400z705009402 RH Carbon Black Rear Footrest Support. Model Oxford BlueRH Carbon Black Rear Footrest Support. Model Oxford Blue
-
400z705009402 RH Carbon Black Rear Footrest Support. Model Circuit YellowRH Carbon Black Rear Footrest Support. Model Circuit Yellow
-
400z705012453 Liquid Gold, RH Support. Option 10THLiquid Gold, RH Support. Option 10TH
-
400a1705008166 Spacer BushingSpacer Bushing
-
400a2705013187 Pivot OinPivot Oin
-
400a3293830005 Rubber BumperRubber Bumper
-
400a4705010203 Pivot CapPivot Cap
-
400a5244003560 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
400a6705008160 RH Carbon Black FootpegRH Carbon Black Footpeg
-
400a7705011281 PadPad
-
400a8250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
400a9708000759 Rubber StopperRubber Stopper
-
400a10250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400a11705008962 RH Fairing SupportRH Fairing Support
-
400a12234061670 Flat Washer 6 mmFlat Washer 6 mm
-
400a13210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
400a14250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
400a15705601419 Brake PedalBrake Pedal
-
400a16705004933 Rubber PadRubber Pad
-
400a17210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
400a18705600458 BearingBearing
-
400a19503192496 WasherWasher
-
400a20503183800 WasherWasher
-
400a21233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
400a22207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
400a23705601308 Master Cylinder RockerMaster Cylinder Rocker
-
400a24705600458 BearingBearing
-
400a25705600541 BushingBushing
-
400a26293300191 O-RingO-Ring
-
400a27503183800 WasherWasher
-
400a28705601229 Locking TabLocking Tab
-
400a29207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch GripHex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
-
400a30207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
400a31705601375 Brake Master Cylinder StopperBrake Master Cylinder Stopper
-
400a32250000725 Screw M4 X 16Screw M4 X 16
-
400a33219400628 Brake Linkage Kit (410.7 mm)Brake Linkage Kit (410.7 mm)
-
400a34250000714 Flanged Screw M6 X 26Flanged Screw M6 X 26
-
400a35233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
400a36705601350 Quick-Attach BracketQuick-Attach Bracket
-
400a37250100178 Push NutPush Nut
-
400a38705601342 Light Switch BracketLight Switch Bracket
-
400a39250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
400a40705601343 Switch DeflectorSwitch Deflector
-
400a41250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
400a42705601506 Rod EndRod End
-
400a43705600468 Piston RodPiston Rod
-
400a44232081414 Hex. Nut M8Hex. Nut M8
-
400a45207283544 Hexagonal Head Cap Screw M8 X 35Hexagonal Head Cap Screw M8 X 35
-
400a46232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
410705008219 SpacerSpacer
-
420250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
430233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440250200029 Washer M6Washer M6
-
450705010202 Pivot CapPivot Cap
-
460205505560 Socket Head ScrewSocket Head Screw
-
470207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
1100705007794 LH DeflectorLH Deflector
-
1200705007795 RH DeflectorRH Deflector
-
1300705009027 LH ShellLH Shell
-
1310250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
1320414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
1400705009029 RH ShellRH Shell
-
1410250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
1420414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
1500a705009144 LH Acoustic FairingLH Acoustic Fairing
-
1500b705009344 Acoustic FoamAcoustic Foam
-
1500c705009162 Acoustic FoamAcoustic Foam
-
1500d708000759 Rubber StopperRubber Stopper
-
1500e705007780 LH Engine FairingLH Engine Fairing
-
1500f250000725 Screw M4 X 16Screw M4 X 16
-
1510205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1515234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1520293730024 Dart, FastexDart, Fastex
-
1600705007781 RH Engine FairingRH Engine Fairing
-
1610205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1615234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1700207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
