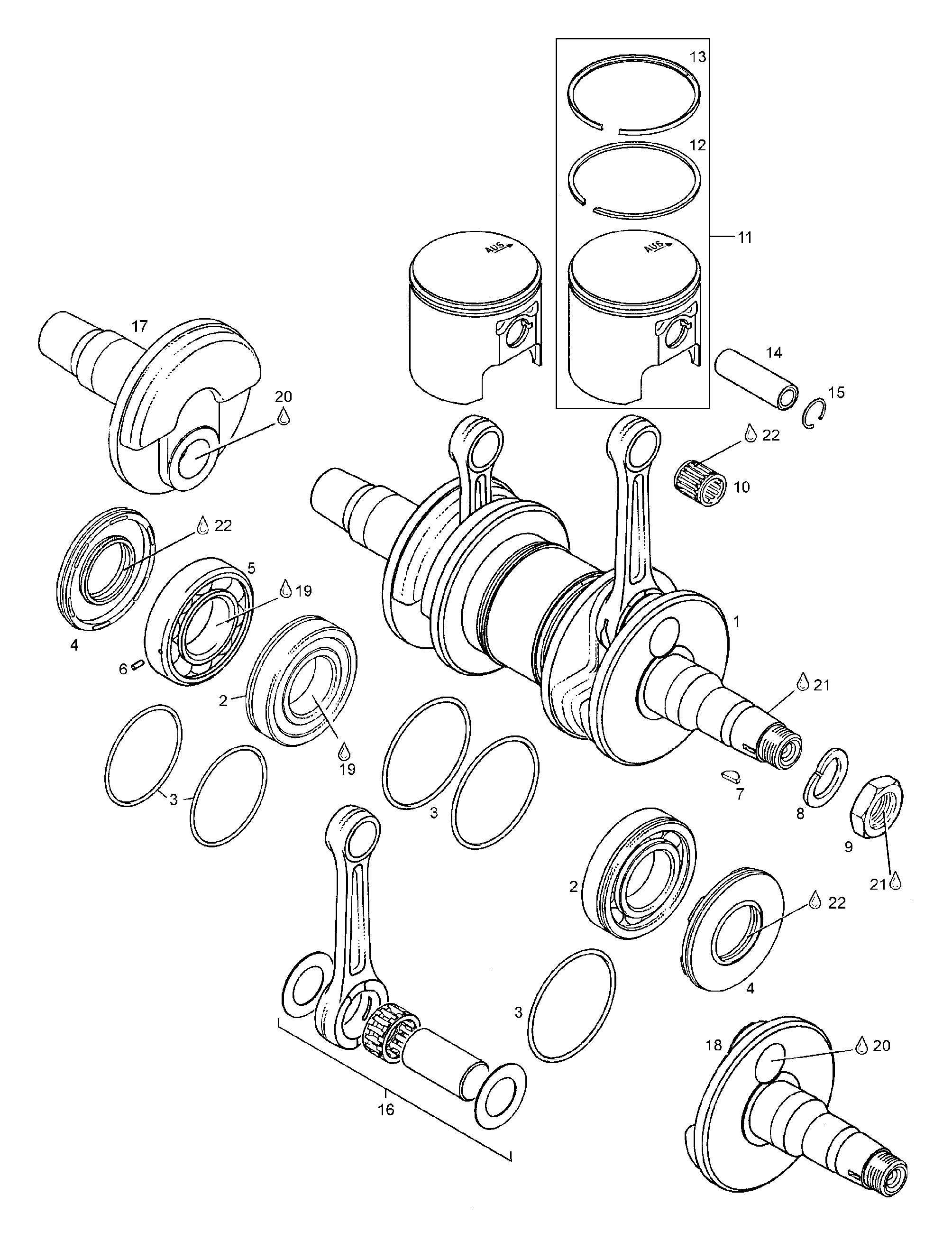

01- Crankshaft Assy для BRP Lynx GLX 5900 FC/E - 1999

№

Артикул

Название
1

420888390 Crankshaft assy. Includes items 1 thru 6

Crankshaft assy. Includes items 1 thru 6

0 ₽
2

420832570 Ball bearing 6207

Ball bearing 6207

4 050 ₽
3

420250165 O-ring

O-ring

0 ₽
4

420831950 Oil seal

Oil seal

0 ₽
5

420832574 Ball bearing 6207. Includes items 5 thru 6

Ball bearing 6207. Includes items 5 thru 6

15 440 ₽
6

420929972 Drive pin

Drive pin

280 ₽
7

420246015 Woodruff key

Woodruff key

1 040 ₽
8

420945759 Lock washer

Lock washer

660 ₽
9

420842230 Nut M22

Nut M22

0 ₽
10

420832320 Cagel. needle bearin

Cagel. needle bearin

10 710 ₽
11

420888175 Piston assy 71.92 m. Includes items 11 thru 13

Piston assy 71.92 m. Includes items 11 thru 13

0 ₽
11

420888176 Piston assy 72.17 m. Includes items 11 thru 13

Piston assy 72.17 m. Includes items 11 thru 13

0 ₽
11

420888177 Piston assy 72.42 m. Includes items 11 thru 13

Piston assy 72.42 m. Includes items 11 thru 13

0 ₽
12

420915850 Piston ring 72.00 mm

Piston ring 72.00 mm

2 370 ₽
12

420915851 Piston ring 72.25 mm

Piston ring 72.25 mm

3 280 ₽
12

420915852 Piston ring 72.50 mm

Piston ring 72.50 mm

3 600 ₽
13

420815200 Piston ring 72.00 mm

Piston ring 72.00 mm

4 830 ₽
13

420815201 Piston ring 72.25 mm

Piston ring 72.25 mm

4 670 ₽
13

420815202 Piston ring 72.50 mm

Piston ring 72.50 mm

5 270 ₽
14

420916186 Piston pin

Piston pin

9 000 ₽
15

420945735 Circlip

Circlip

1 610 ₽
16

420994564 Crankshaft repair kit

Crankshaft repair kit

0 ₽
17

420818242 Crankshaft P.T.O.-sid

Crankshaft P.T.O.-sid

0 ₽
18

420818269 Crankshaft MAG.-side

Crankshaft MAG.-side

0 ₽
19

420297434 Loctite, 50ml

Loctite, 50ml

0 ₽
20

420897341 Loctite, 10cc

Loctite, 10cc

0 ₽
21

420899785 Loctite 221 violet

Loctite 221 violet

0 ₽
