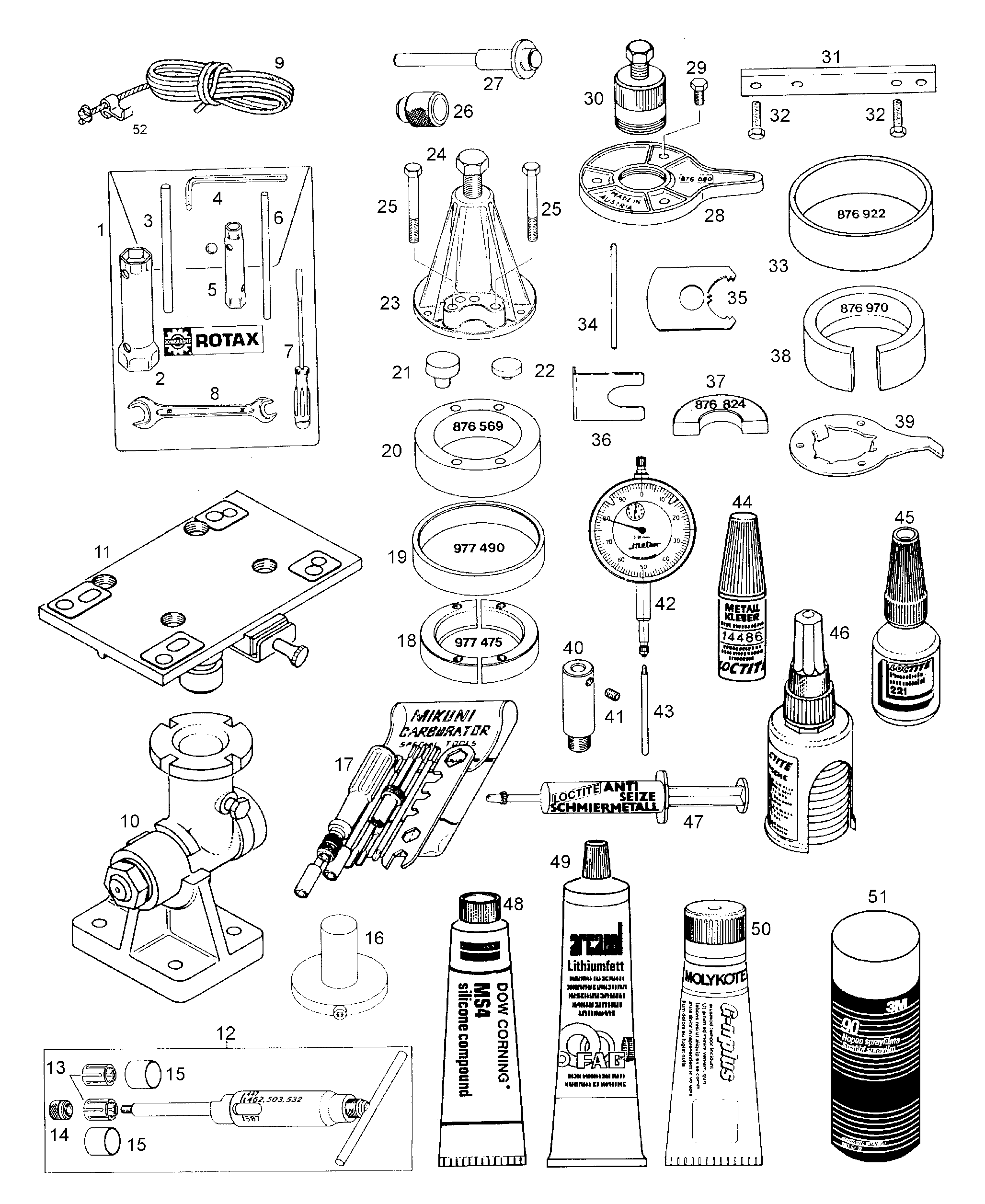

11- Tools для BRP Lynx GLX 5900 FC/E - 1999
-
№АртикулНазвание
-
1420877354 Tool set. Includes items 1 thru 9Tool set. Includes items 1 thru 9
-
1420876197 Tool bagTool bag
-
2420876210 Sleeve 21/26mmSleeve 21/26mm
-
3420977420 Bolt 8x130-10Bolt 8x130-10
-
4420277810 Allen key 6 mmAllen key 6 mm
-
4420876360 Allen key 5 mmAllen key 5 mm
-
5420876227 Socket wrench 10/13Socket wrench 10/13
-
6420977425 Bolt 6x130Bolt 6x130
-
7420277847 Screw driverScrew driver
-
8420276065 Key 10/13mmKey 10/13mm
-
9420852091 Starting ropeStarting rope
-
10420876740 Fitting stand. Includes items 10 thru 11Fitting stand. Includes items 10 thru 11
-
11420876746 Mounting plateMounting plate
-
12420877091 Piston pin extr.. Includes items 12 thru 15Piston pin extr.. Includes items 12 thru 15
-
13420877040 Expansion sleeveExpansion sleeve
-
14420877155 Extraction nutExtraction nut
-
15420877180 Location sleeveLocation sleeve
-
16420877555 Insertion jig assyInsertion jig assy
-
17420876960 Special tool kitSpecial tool kit
-
18420977475 Ring halfRing half
-
19420977490 RingRing
-
20420876569 ShimShim
-
21420876552 Cover, P.T.O. sideCover, P.T.O. side
-
22420876557 Cover, magn.sideCover, magn.side
-
23420876298 Puller. Includes items 23 thru 24Puller. Includes items 23 thru 24
-
24420940755 ScrewScrew
-
25420841201 ScrevScrev
-
26420877015 Tool, circlip install.. Includes items 26 thru 27Tool, circlip install.. Includes items 26 thru 27
-
26420877020 Installation sleeveInstallation sleeve
-
27420877010 Installation pusherInstallation pusher
-
28420876080 Puller platePuller plate
-
29420940591 ScrewScrew
-
30420876065 PullerPuller
-
31420876171 Alig.tool, cyl.Alig.tool, cyl.
-
32420240275 ScrewScrew
-
33420876922 Centr. ring, magn.Centr. ring, magn.
-
34420876640 Cranks.fixation boltCranks.fixation bolt
-
35420876695 I. pump gear holderI. pump gear holder
-
36420876620 Feeler gauge,P.T.O.Feeler gauge,P.T.O.
-
37420876824 Centr. ring, magn.Centr. ring, magn.
-
38420876970 Install.ring, pistonInstall.ring, piston
-
39420876357 Fan holderFan holder
-
40420876940 Gauge adapterGauge adapter
-
41420841771 Set screwSet screw
-
42420876950 Precision dial gaugePrecision dial gauge
-
43420876945 Gauge pinGauge pin
-
44420897341 Loctite 14486, 10ccLoctite 14486, 10cc
-
45420899785 Loctite 221/violettLoctite 221/violett
-
46420899784 Loctite 574/orangeLoctite 574/orange
-
47420297434 Loctite anti-seizeLoctite anti-seize
-
48420897061 Silicone com. greaseSilicone com. grease
-
49420897330 Lithium-base greaseLithium-base grease
-
50420297433 Molykote slide pasteMolykote slide paste
-
5132600 Spray glue 3M90Spray glue 3M90
-
52420852340 AttachmentAttachment
