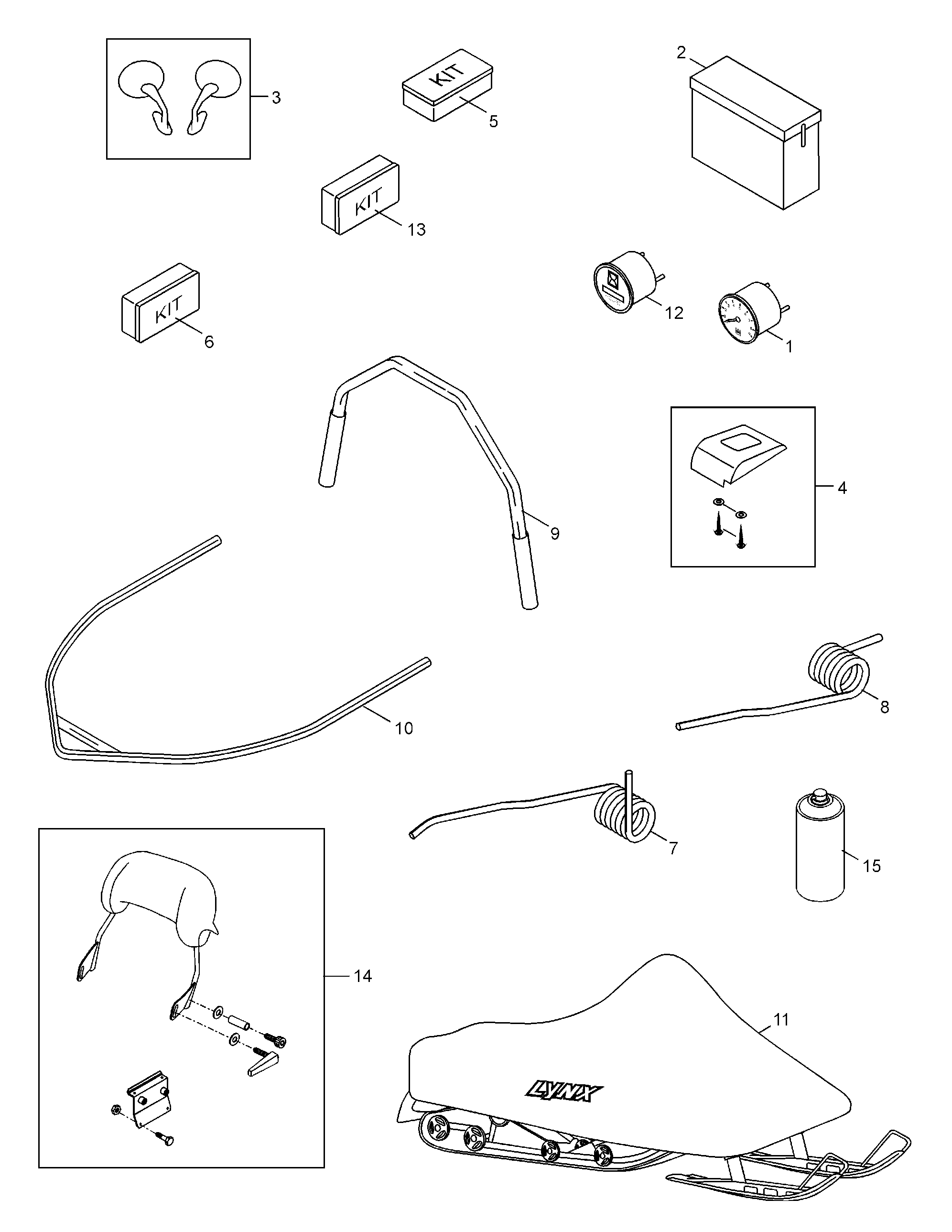

11- Accessories для BRP Lynx GLX 5900 FC/E - 1999
-
№АртикулНазвание
-
15442584 RPM-gauge kit(black)RPM-gauge kit(black)
-
27820083 Goods boxGoods box
-
3211216501 Mirror pairMirror pair
-
4861752800 Footrest kitFootrest kit
-
55241993 Electric fuel meter kitElectric fuel meter kit
-
65342731 Electic starter assyElectic starter assy
-
7529896 Spring R.H. d=10Spring R.H. d=10
-
7529895 Spring L.H. d=10Spring L.H. d=10
-
75241178 Spring R.H. d=9.5Spring R.H. d=9.5
-
75241177 Spring L.H. d=9.5Spring L.H. d=9.5
-
85342228 Spring R.H. d=11Spring R.H. d=11
-
85342229 Spring L.H. d=11Spring L.H. d=11
-
95340389 Rollbar KitRollbar Kit
-
10539850 Extra Bumber SetExtra Bumber Set
-
117820052 Snowmobile coverSnowmobile cover
-
12861748200 Kit meter hourKit meter hour
-
135444082 Temp.gauge setTemp.gauge set
-
151312 Spray-paint, blackSpray-paint, black
