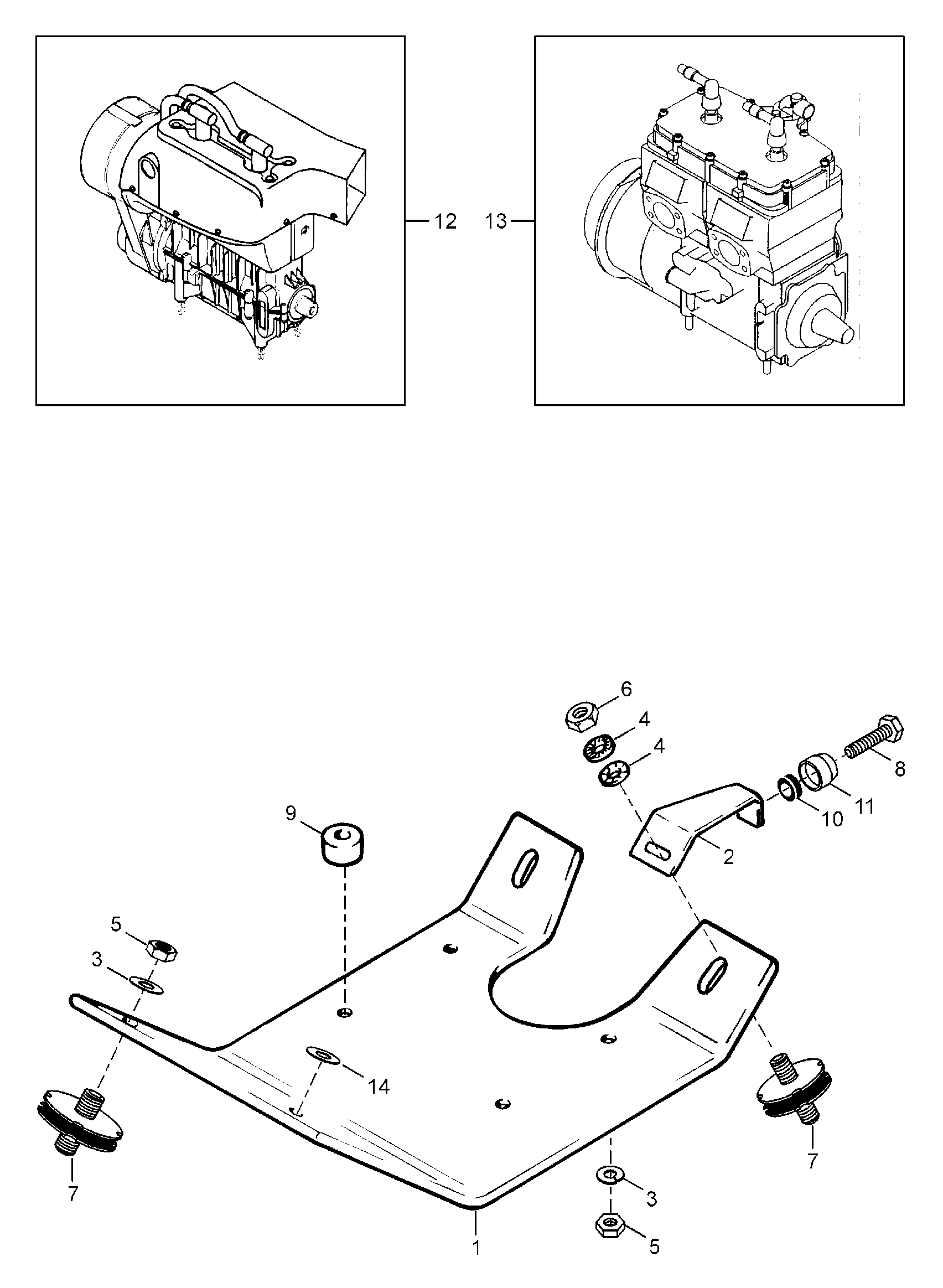

01- Engine Mount Plate для BRP Lynx GLX 5900 FC/E - 1999
-
№АртикулНазвание
-
15342951 Engine supportEngine support
-
2539902 SupportSupport
-
3512056700 Lock washerLock washer
-
420068 WasherWasher
-
533012 Nut elastic M10Nut elastic M10
-
633004 Nut M10Nut M10
-
7570127700 Rubber mountRubber mount
-
840037 Hex.screw M8x25Hex.screw M8x25
-
95440678 SleeveSleeve
-
102846014 Rubber washerRubber washer
-
115440091 SleeveSleeve
-
1211000042 > Engine> Engine
