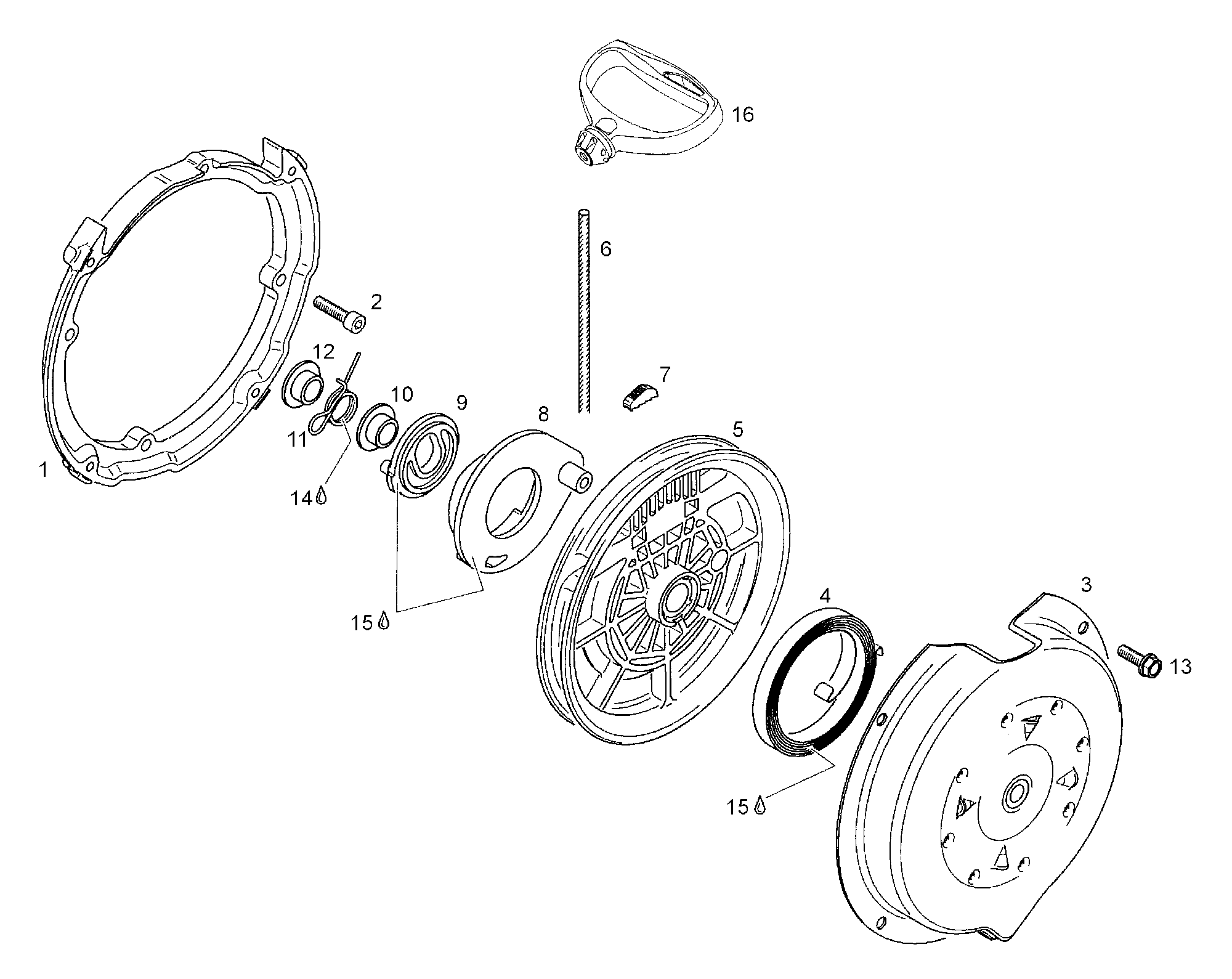

04- Rewind Starter для BRP Lynx GLX 5900 FC/E - 1999
-
№АртикулНазвание
-
1420888216 Rewind starter assy. Includes items 1 thru 15Rewind starter assy. Includes items 1 thru 15
-
1420810952 Connecting flangeConnecting flange
-
2420840401 Screw M6x22Screw M6x22
-
3420888215 Rewind starter assy. Includes items 3 thru 12Rewind starter assy. Includes items 3 thru 12
-
3420811345 Starter housing assyStarter housing assy
-
4420939115 rewind spring assyrewind spring assy
-
5420852480 Rope sheaveRope sheave
-
6420852491 Starter rope 2,2mStarter rope 2,2m
-
6412500100 Starter rope 30mStarter rope 30m
-
7420852070 Key clampKey clamp
-
8420852293 PawlPawl
-
9420852301 Pawl lockPawl lock
-
10420847925 SleeveSleeve
-
11420938986 Locking springLocking spring
-
12420847920 SleeveSleeve
-
13420940251 Screw M8x9Screw M8x9
-
14420297433 Molykote G-NMolykote G-N
-
15420897061 Silicon compoundSilicon compound
-
16572084400 HandleHandle
