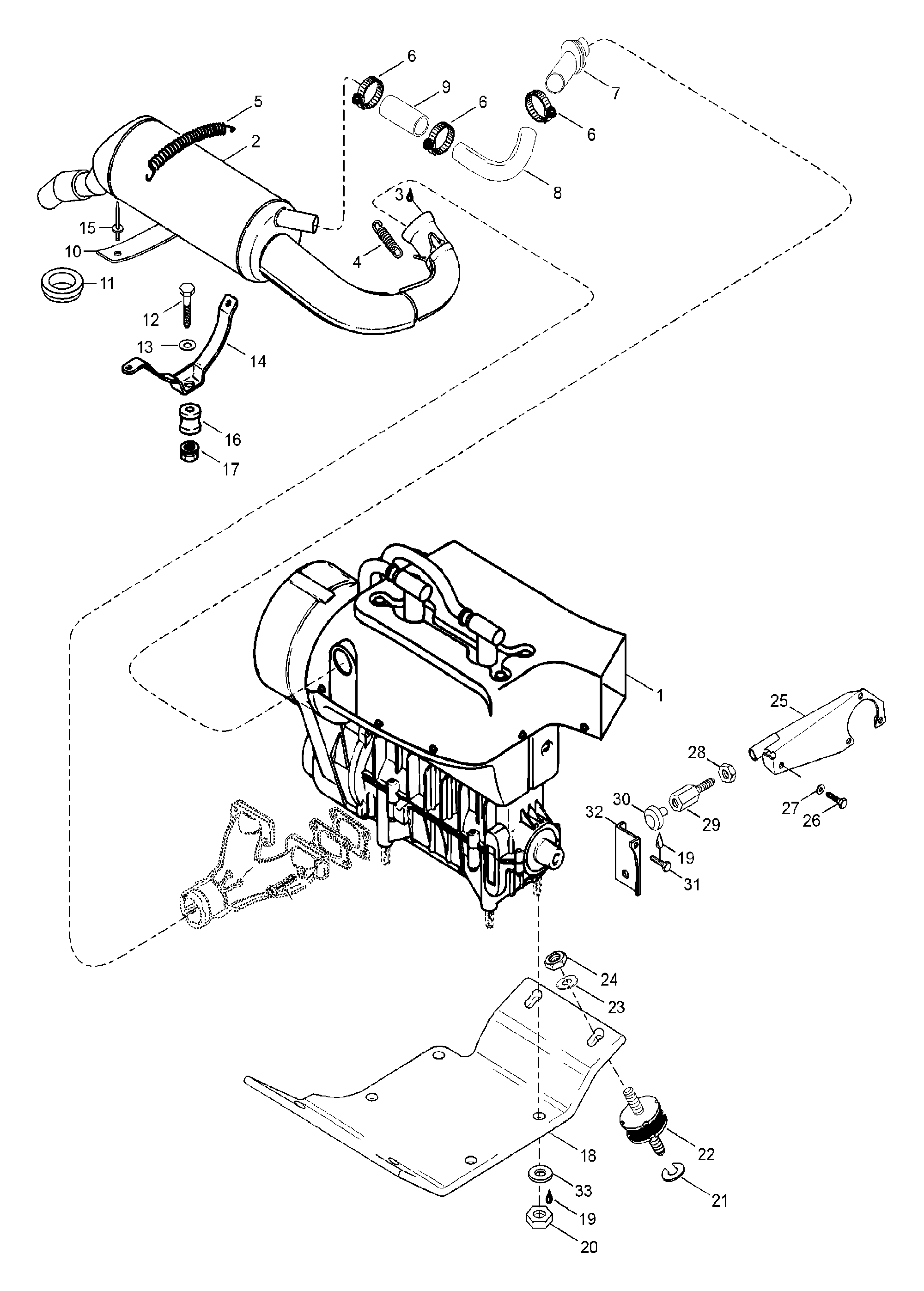

01- Engine Mount Plate/Muffler для BRP Lynx Forest - 2000
-
№АртикулНазвание
-
111000055 Engine 377Engine 377
-
25242554 MufflerMuffler
-
3413706700 Gasket siliconeGasket silicone
-
4420938795 SpringSpring
-
5543225 Spring L=190Spring L=190
-
627003 ClampClamp
-
75442631 Force flow connectorForce flow connector
-
85340616 Air tubeAir tube
-
95444461 HoseHose
-
10543329 RubberRubber
-
11570141300 Rubber flangeRubber flange
-
1240034 Screw M8x10Screw M8x10
-
1320014 Lock washerLock washer
-
14535108 SupportSupport
-
1536036 RivetRivet
-
1628245 Rubber stopperRubber stopper
-
1733011 Nut elastic M8Nut elastic M8
-
18549059 Engine mount.plateEngine mount.plate
-
19413707400 Loctite 271, 10ccLoctite 271, 10cc
-
2033004 Nut M10Nut M10
-
21546221 Shim washerShim washer
-
22570127700 Rubber mountRubber mount
-
23512056700 Lock washerLock washer
-
2433012 Nut M10Nut M10
-
255344673 Support plateSupport plate
-
2640115 Screw M6x12Screw M6x12
-
2720052 Lock washerLock washer
-
2833063 Nut M12Nut M12
-
29517244200 ScrewScrew
-
30570025100 Rod retainerRod retainer
-
3140035 Screw M8x16Screw M8x16
-
325344446 Stopper plateStopper plate
-
3320047 WasherWasher
