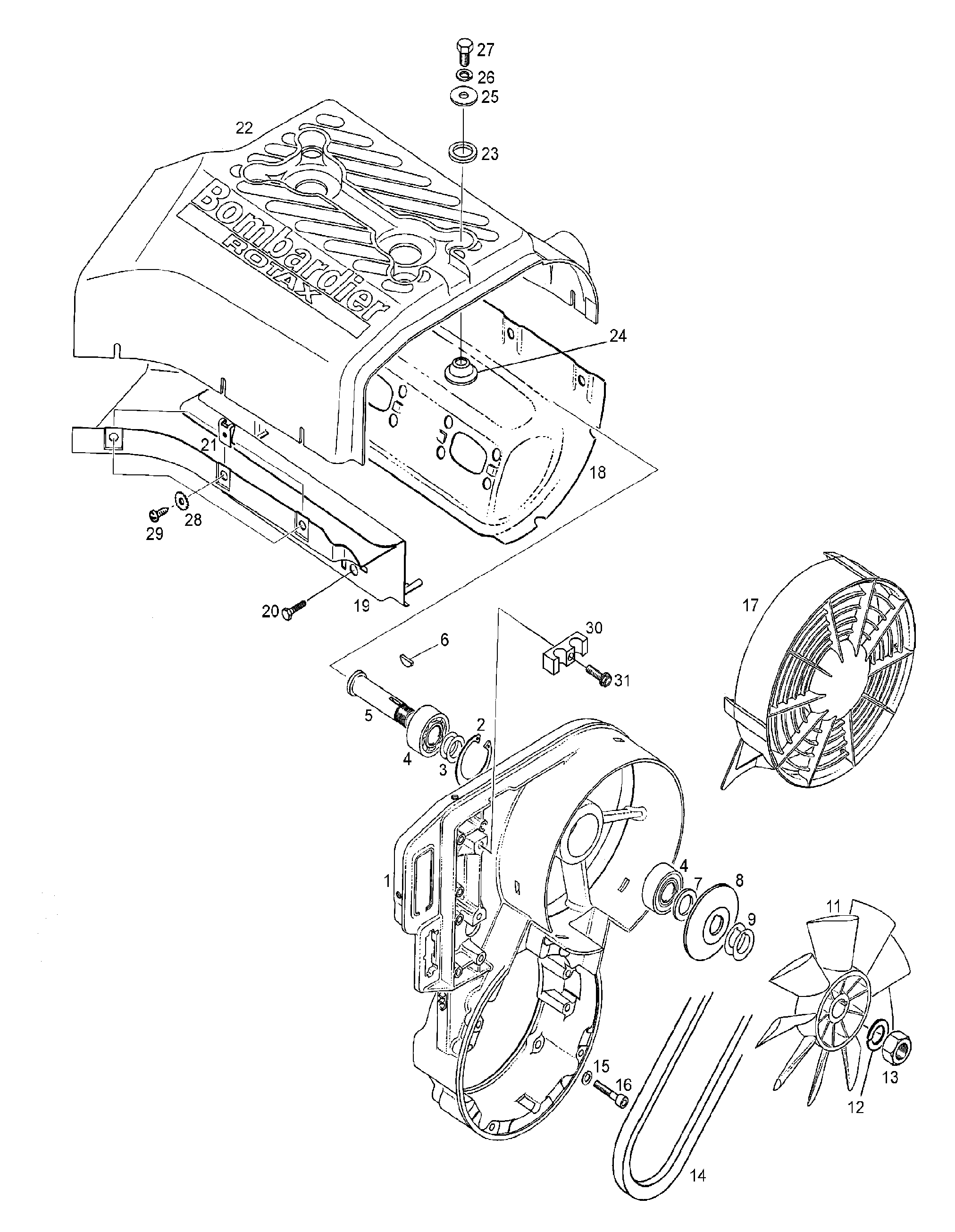

01- Fan Housing для BRP Lynx Forest - 2000
-
№АртикулНазвание
-
1420811260 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4420832160 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
11420866295 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14414630700 V-beltV-belt
-
15420945751 Spring washerSpring washer
-
16222963065 Allen screw M6x30Allen screw M6x30
-
17420975740 Fan coverFan cover
-
18420810552 Lower cowl (exhaust)Lower cowl (exhaust)
-
19420810795 Lower cowlLower cowl
-
20420240580 Taptite Screw M6x16Taptite Screw M6x16
-
21420842390 Sping NutSping Nut
-
22420810606 Upper caseUpper case
-
23420960865 Rubber washerRubber washer
-
24420827817 Cup washerCup washer
-
25420227935 WasherWasher
-
26420945752 Lock washerLock washer
-
27420940581 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29420841495 Selftapping screwSelftapping screw
-
30420860940 Wire clampWire clamp
-
31420941250 Taptite screw M6x20Taptite screw M6x20
