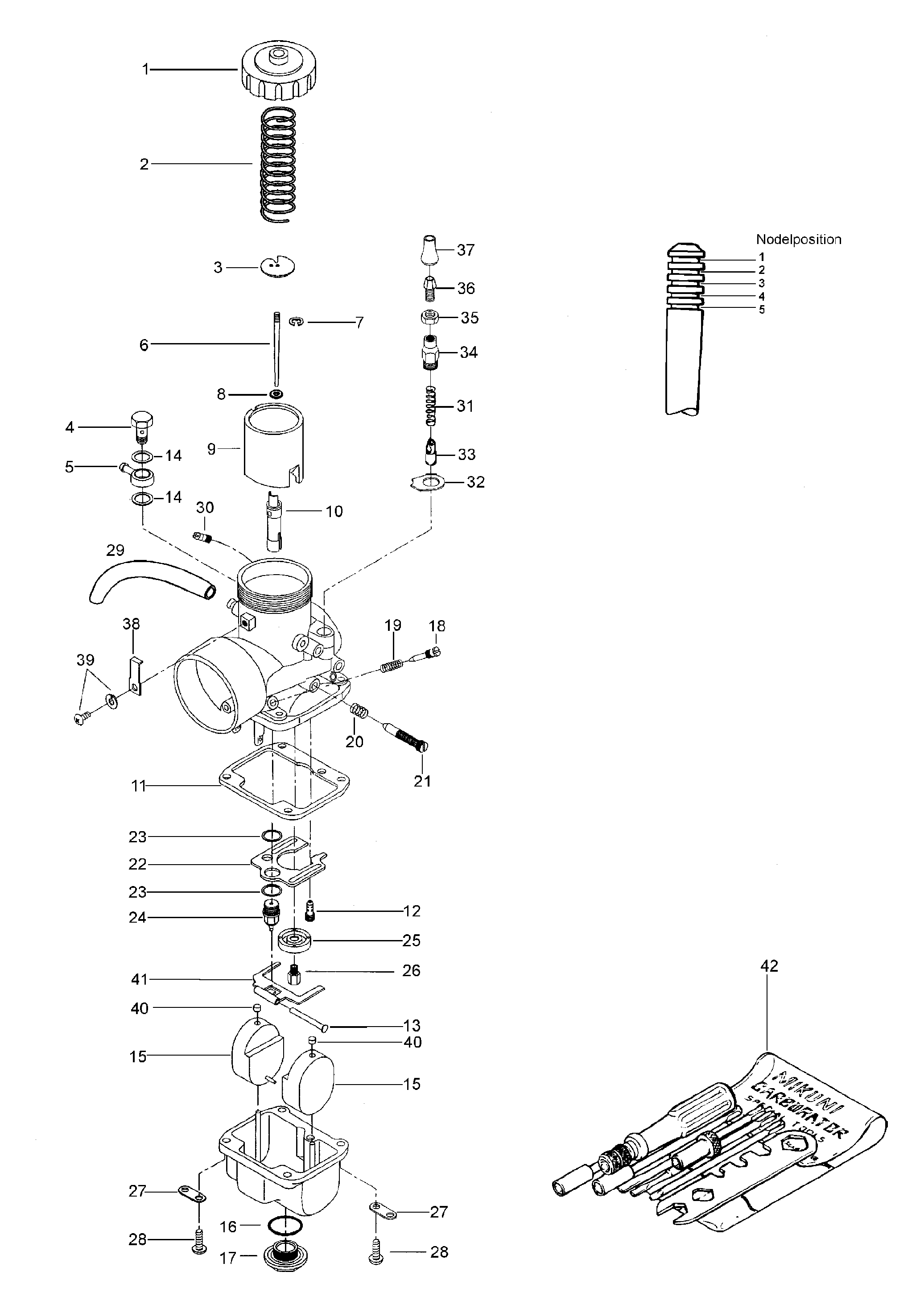

02- Carburetor для BRP Lynx Forest - 2000
-
№АртикулНазвание
-
1420963870 CoverCover
-
2420938930 SpringSpring
-
3404103800 HalderHalder
-
4420963960 Banjo-screwBanjo-screw
-
5404130000 Banjo-fittingBanjo-fitting
-
6404110500 Needle 6EJ1-3Needle 6EJ1-3
-
7420845230 Locking plateLocking plate
-
840411700 PackingPacking
-
9404130300 Slide, 3.0Slide, 3.0
-
10404110600 Needle jet 159P-6Needle jet 159P-6
-
11420831890 GasketGasket
-
12404102700 Idle jet 35Idle jet 35
-
13420929770 PinPin
-
14404158200 O-ringO-ring
-
15420963900 FloatFloat
-
16420850210 O-ringO-ring
-
17420963965 ScrewScrew
-
18404102300 Idle adjusting screwIdle adjusting screw
-
19404101800 SpringSpring
-
20404101700 SpringSpring
-
21404109700 Throttle stop screwThrottle stop screw
-
22404109600 Baffle plateBaffle plate
-
23404101600 GasketGasket
-
24404103200 Needle valve 1.5Needle valve 1.5
-
25404110900 Baffle ringBaffle ring
-
26404118900 Main jet 230Main jet 230
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + washerScrew + washer
-
29404109800 Vent tubeVent tube
-
30404153400 NippleNipple
-
31420938920 SpringSpring
-
32404158300 PlatePlate
-
33420963790 Choke pistonChoke piston
-
34420963810 Support guideSupport guide
-
35404121600 NutNut
-
38420845220 KeeperKeeper
-
39420841450 Screw + washerScrew + washer
-
40420960990 Stop plugStop plug
-
41420963830 Float armFloat arm
-
42404112000 Tool kitTool kit
