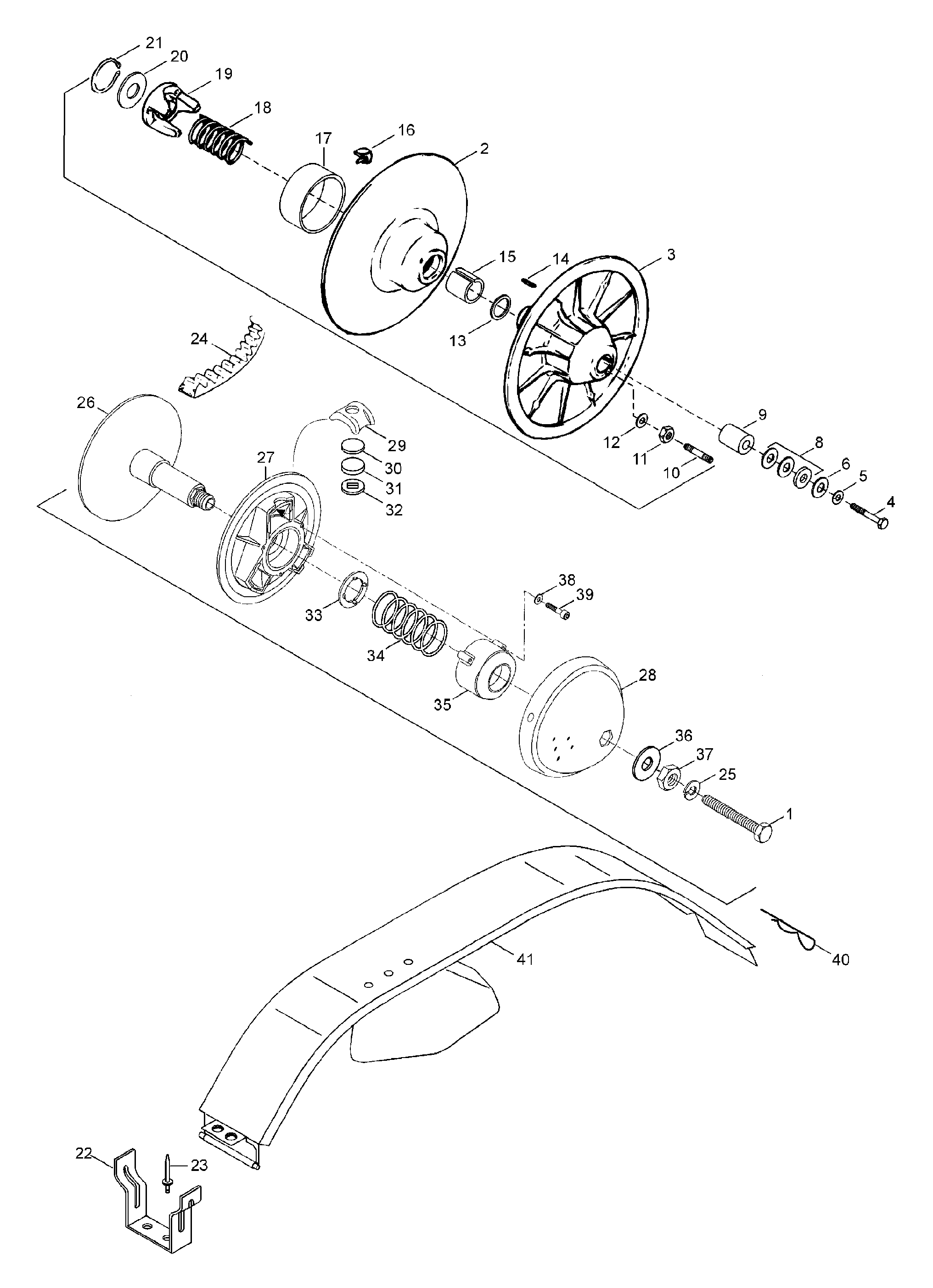

05- Clutch для BRP Lynx Forest - 2000
-
№АртикулНазвание
-
140800 ScrewScrew
-
2504143400 Sliding pulleySliding pulley
-
3504141600 Fixed pulleyFixed pulley
-
440088 Screw M8x70Screw M8x70
-
520014 Lock washerLock washer
-
6546336 WasherWasher
-
83125351 WasherWasher
-
9546335 SleeveSleeve
-
10206263044 Allen skruv M6x30Allen skruv M6x30
-
1133010 Nut M6Nut M6
-
1220003 WasherWasher
-
13504141900 Thrust washerThrust washer
-
14414820800 KeyKey
-
15415011200 BushingBushing
-
16414918000 Cam slider shoeCam slider shoe
-
17414876600 BushingBushing
-
18414558900 Spring, beigeSpring, beige
-
19504096000 Cam 36Cam 36
-
20514141800 PlatePlate
-
21371903100 CirclipCirclip
-
22518202100 FasteningFastening
-
2336083 RivetRivet
-
24414633800 Driven beltDriven belt
-
2520024 Lock washerLock washer
-
26417121200 Fixed half pulleyFixed half pulley
-
27417121300 Sliding half pulleySliding half pulley
-
28417125100 Domed cupDomed cup
-
29417118100 Slide shoe, blackSlide shoe, black
-
30417114400 WeightWeight
-
31417120400 Weight 21 grWeight 21 gr
-
32417114500 Plastic capPlastic cap
-
33417116200 Spring seatSpring seat
-
341471415 Spring, violetSpring, violet
-
35417121400 Spring coverSpring cover
-
36417122400 WasherWasher
-
37417118300 Locking nutLocking nut
-
38420245310 Lock washerLock washer
-
39222964066 Screw M6x40Screw M6x40
-
405442726 PinPin
-
415344676 Belt guardBelt guard
