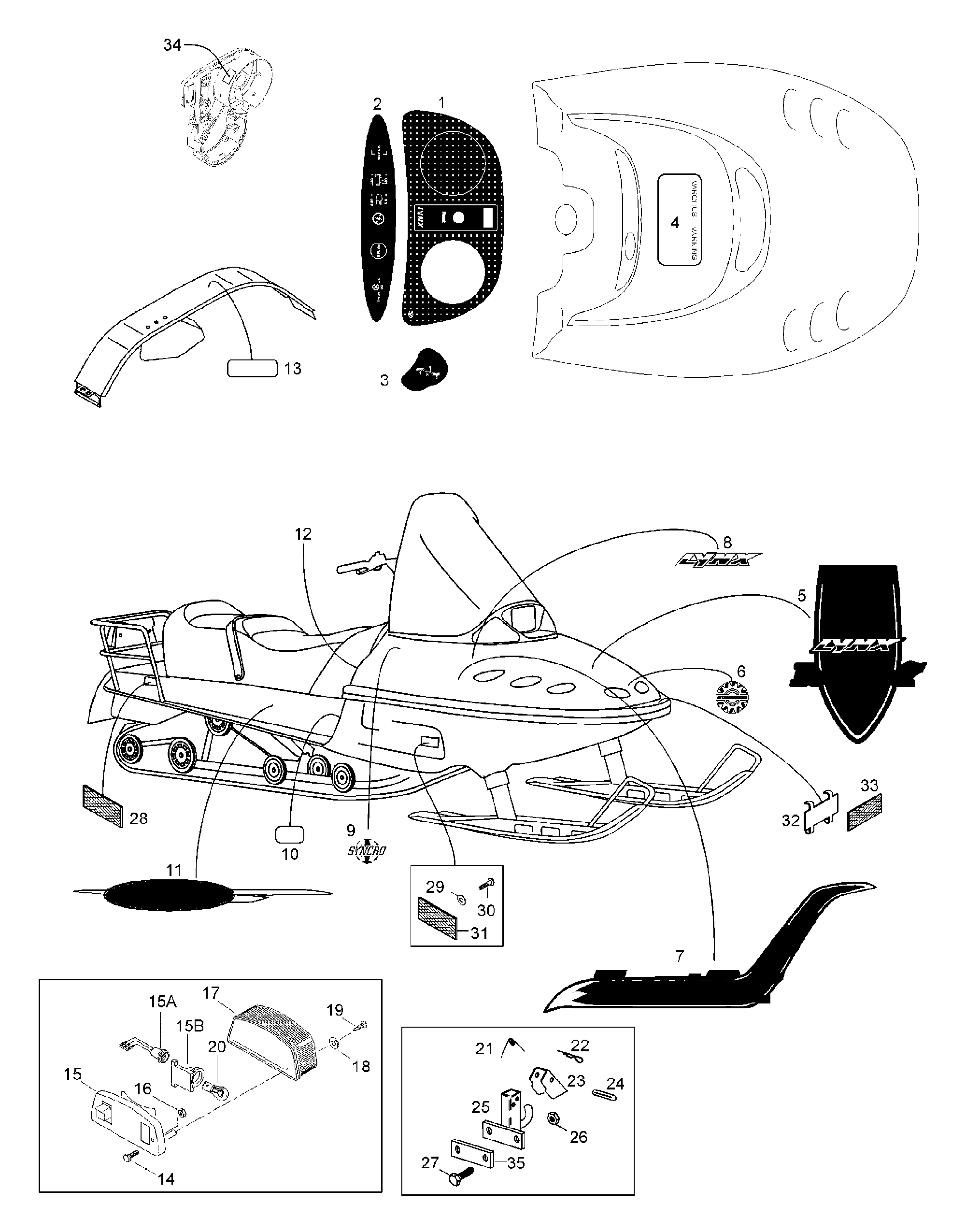

09- Decals для BRP Lynx Forest - 2000
![](/wa-data/public/shop/sheme/bombardier/lynx/34331e5b-329f-4850-be90-7352efa2199c.png)
-
№АртикулНазвание
-
5145813 Hood Decal-series consist of the decals 1, 2, 5, 6, 7 and 8Hood Decal-series consist of the decals 1, 2, 5, 6, 7 and 8
-
5145814 Decal chassis-series consist of the decal 11Decal chassis-series consist of the decal 11
-
44201 Instruction decal assy consist of the decals 4, 11, 13 and 34Instruction decal assy consist of the decals 4, 11, 13 and 34
-
15340120 Dash decalDash decal
-
25442902 Dash decalDash decal
-
35440123 Reverse decal/syncroReverse decal/syncro
-
4546819 Warning decalWarning decal
-
55345844 Hood decal frontHood decal front
-
6516000282 BOMBARDIER-decalBOMBARDIER-decal
-
75345843 Forest Fox decal L.H.Forest Fox decal L.H.
-
75345842 Forest Fox decal R.H.Forest Fox decal R.H.
-
85345840 Decal ‘’LYNX’’Decal ‘’LYNX’’
-
95345845 SYNCRO-decalSYNCRO-decal
-
105445636 CE-decalCE-decal
-
115345846 Decal L.H.Decal L.H.
-
115345841 Decal R.H.Decal R.H.
-
12544068 Inspection decalInspection decal
-
13546820 Instruction decalInstruction decal
-
1440032 Screw M6x30Screw M6x30
-
15b414979411 Rubber damperRubber damper
-
155341214 Tail lamp assy. Includes items 15 thru 20Tail lamp assy. Includes items 15 thru 20
-
15414979400 Tail lamp housingTail lamp housing
-
15a414979410 SocketSocket
-
1633200 Nut M6Nut M6
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
20410504000 Bulb tail lampBulb tail lamp
-
215343991 Draw hook assy. Includes items 21 thru 27Draw hook assy. Includes items 21 thru 27
-
21545693 SpringSpring
-
2241029 PinPin
-
23545225 LatchLatch
-
2441012 Cotter pinCotter pin
-
25545224 Draw hookDraw hook
-
2633012 Nut elastic M10Nut elastic M10
-
2740040 Screw M10x25Screw M10x25
-
2821121 Reflector, yellowReflector, yellow
-
2920018 WasherWasher
-
3040070 Screw M5x10Screw M5x10
-
31414510200 ReflectorReflector
-
325440839 SupportSupport
-
3321060 Reflector, whiteReflector, white
-
34544073 Inspection decalInspection decal
-
355444825 ReinforcementReinforcement
