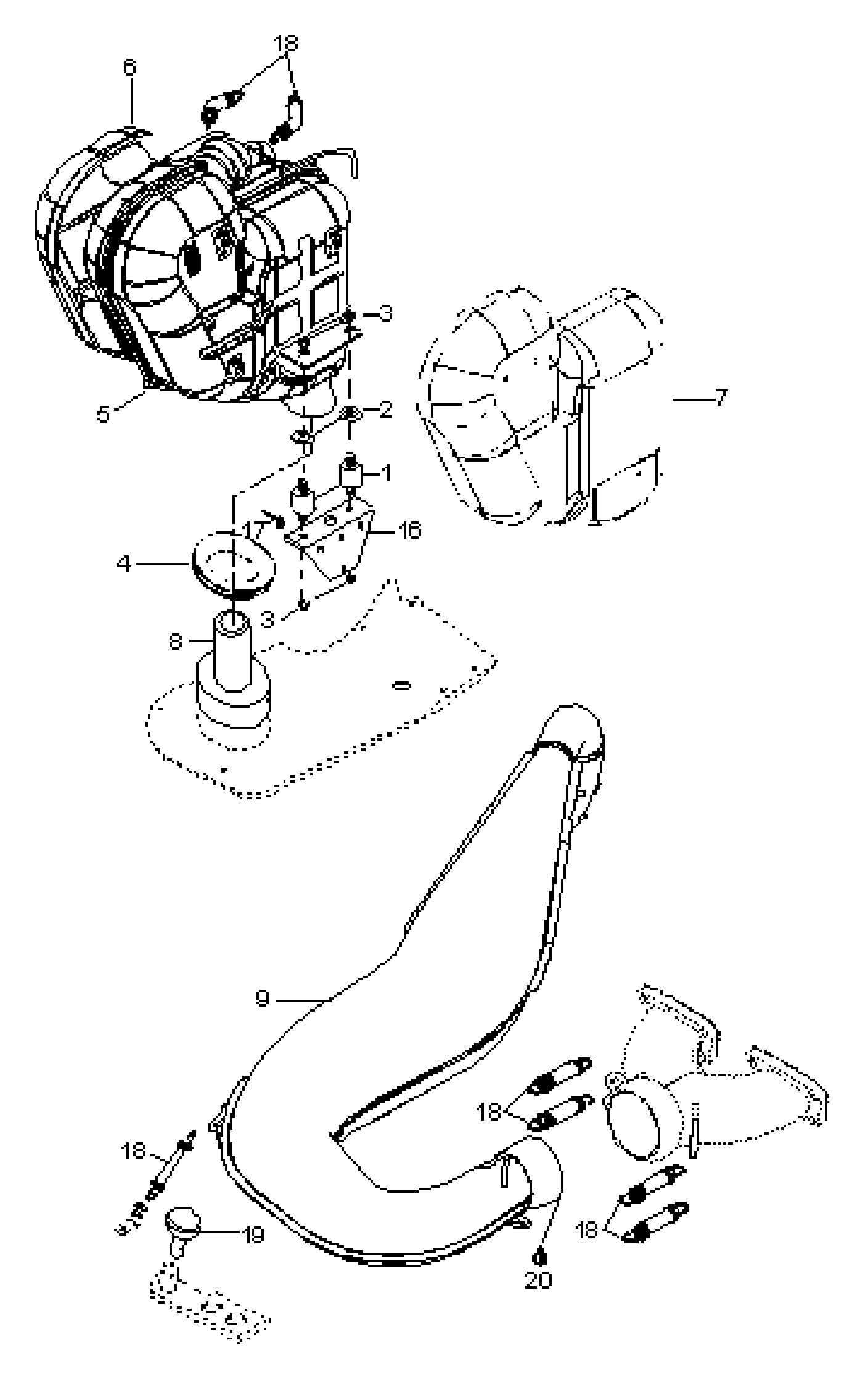

01- Muffler для BRP Lynx G-Touring 600 - 2000
-
№АртикулНазвание
-
1514052889 Rubber mountRubber mount
-
220087 WasherWasher
-
333201 Nut elastic M8Nut elastic M8
-
4570027300 Rubber for grommetRubber for grommet
-
5514052724 After muffler. Includes items 5 thru 7After muffler. Includes items 5 thru 7
-
6514052732 R.H. heat shieldR.H. heat shield
-
7514052733 R.H. heat shieldR.H. heat shield
-
85345778 Extension Pipe of Silenc.Extension Pipe of Silenc.
-
95145519 Tunepipe with coverTunepipe with cover
-
10514052984 Tunep. cover, lowerTunep. cover, lower
-
11514052714 Tunep. cover, upperTunep. cover, upper
-
12514053074 ClampClamp
-
13514052962 ClampClamp
-
14514052735 ClampClamp
-
15414893700 ClampClamp
-
165345581 Exhaust pipe supportExhaust pipe support
-
1736489 RivetRivet
-
18415107100 SpringSpring
-
19570048700 Rubber bumperRubber bumper
-
20413710300 Loctite 17914Loctite 17914
