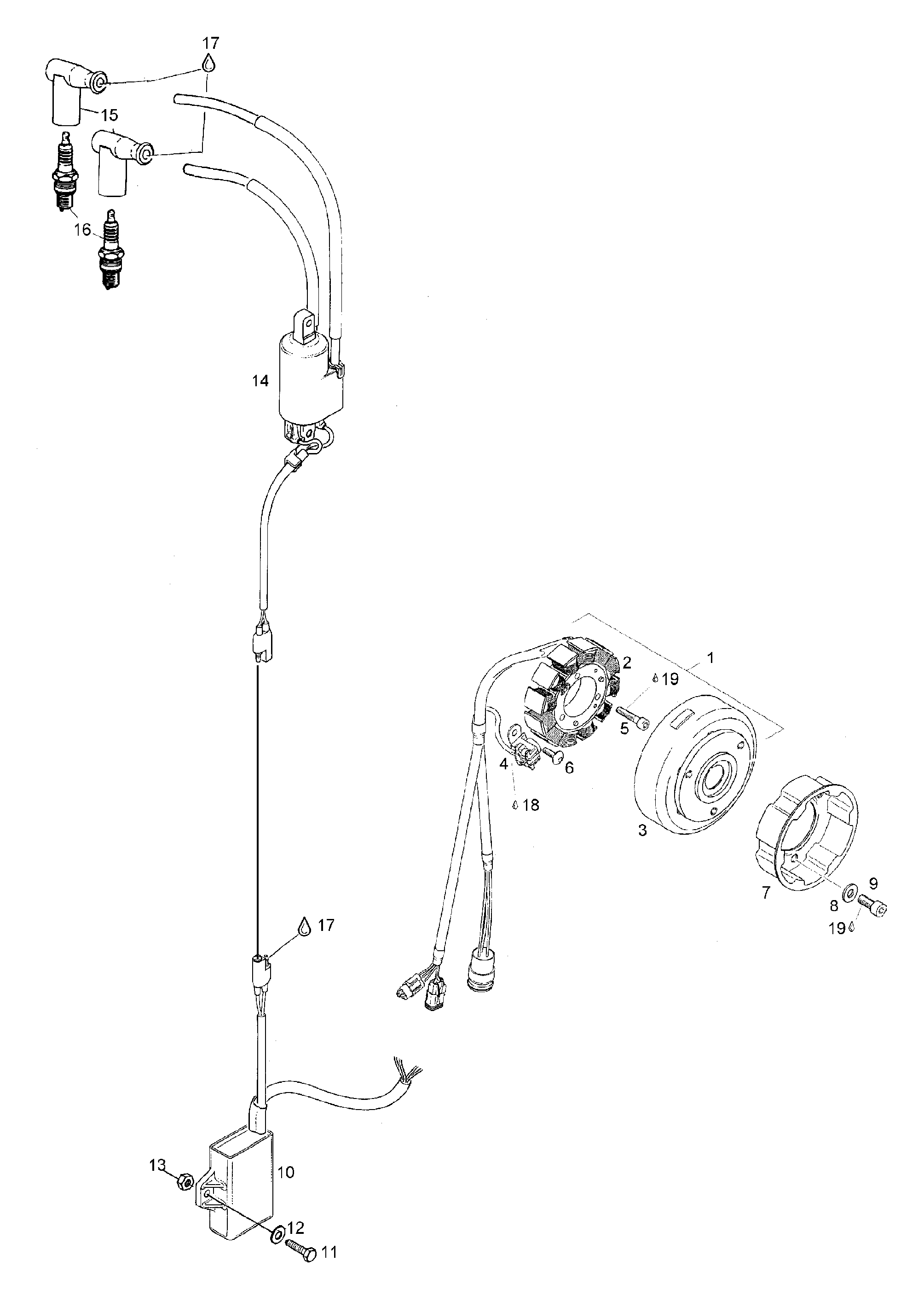

03- Fly Wheel для BRP Lynx G-Touring 600 - 2000
![](/wa-data/public/shop/sheme/bombardier/lynx/011bf37d-054f-401d-a0b4-dca8e1cd6c4f.png)
-
№АртикулНазвание
-
1420810262 Magn.-generator 12V/29. Includes items 1 thru 4Magn.-generator 12V/29. Includes items 1 thru 4
-
2420888612 Stator assyStator assy
-
3420888624 Magneto flywheelMagneto flywheel
-
4420966830 Pick up assy. Parts marked with > are not available as spare partsPick up assy. Parts marked with > are not available as spare parts
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852419 Starting pulleyStarting pulley
-
8420945752 WasherWasher
-
9420841520 Allen screw M8x12Allen screw M8x12
-
105345520 CDI-boxCDI-box
-
1140030 Screw M6x20Screw M6x20
-
1220003 WasherWasher
-
1333200 Nut M6Nut M6
-
14512059073 Ignition coilIgnition coil
-
15278000237 Spark plug protectorSpark plug protector
-
16414961100 Spark plug BR9Spark plug BR9
-
17420897330 Lithium-greaseLithium-grease
-
18420297710 PU-gluePU-glue
-
19420899785 Loctite 221/viol.Loctite 221/viol.
