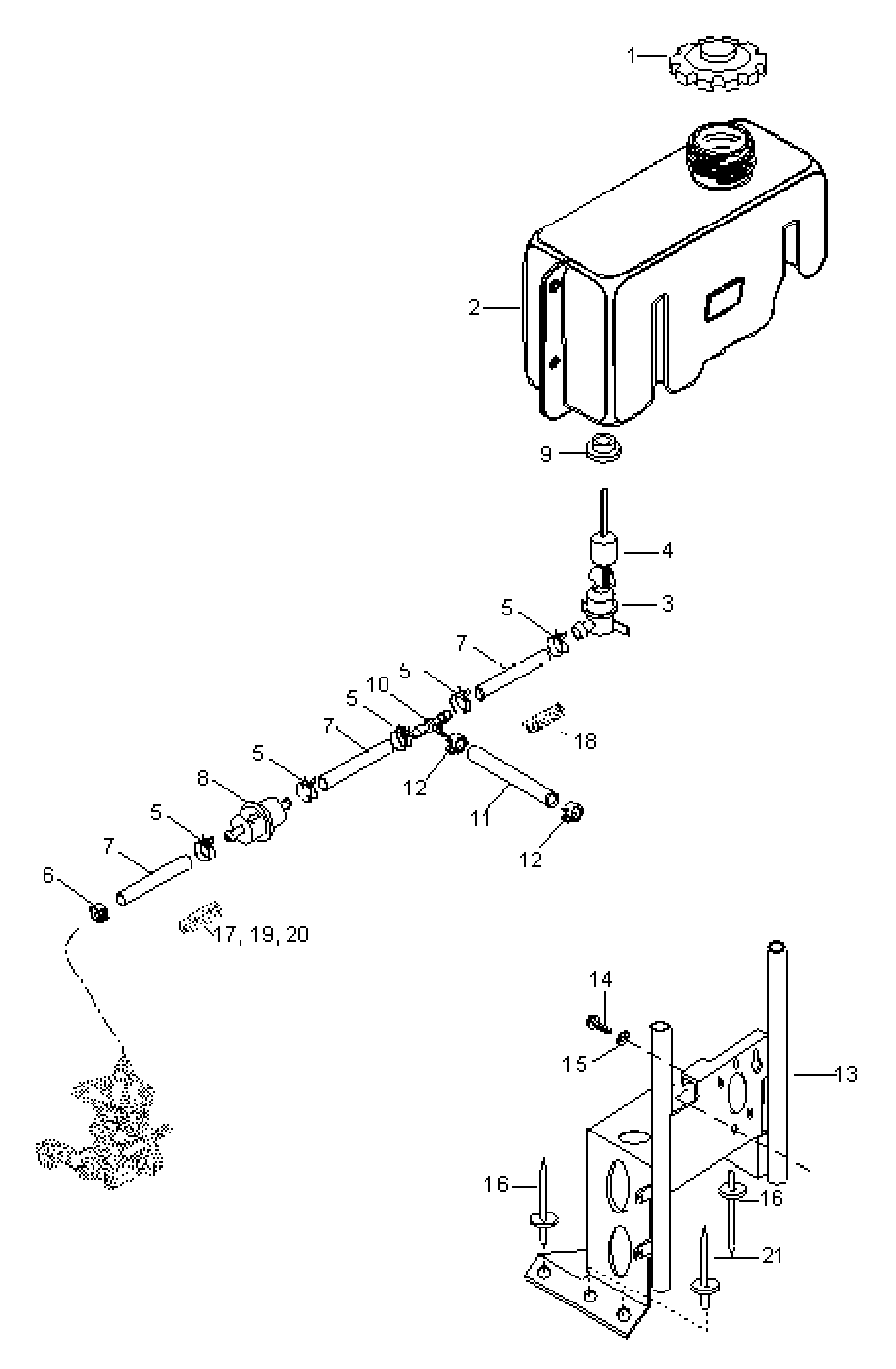

01- Oil Tank для BRP Lynx G-Touring 600 - 2000
-
№АртикулНазвание
-
1572071000 Oil tank capOil tank cap
-
25142700 Oil tankOil tank
-
3414681800 Switch-levelSwitch-level
-
4414681900 FloatFloat
-
5414655700 ClampClamp
-
6414420700 ClampClamp
-
739046 Hose 11/8Hose 11/8
-
8414536500 Oil filterOil filter
-
9570023000 Seal for sensorSeal for sensor
-
1028316 T-fittingT-fitting
-
1139004 Hose 8/5Hose 8/5
-
1227119F ClampClamp
-
135145755 Support weld.Support weld.
-
1440184 ScrewScrew
-
1520002 WasherWasher
-
1636070 RivetRivet
-
175444054 Spring l=55mmSpring l=55mm
-
1828015 TubingTubing
-
195444058 Spring l=135mmSpring l=135mm
-
205444057 Spring l=35mmSpring l=35mm
-
2136087 RivetRivet
