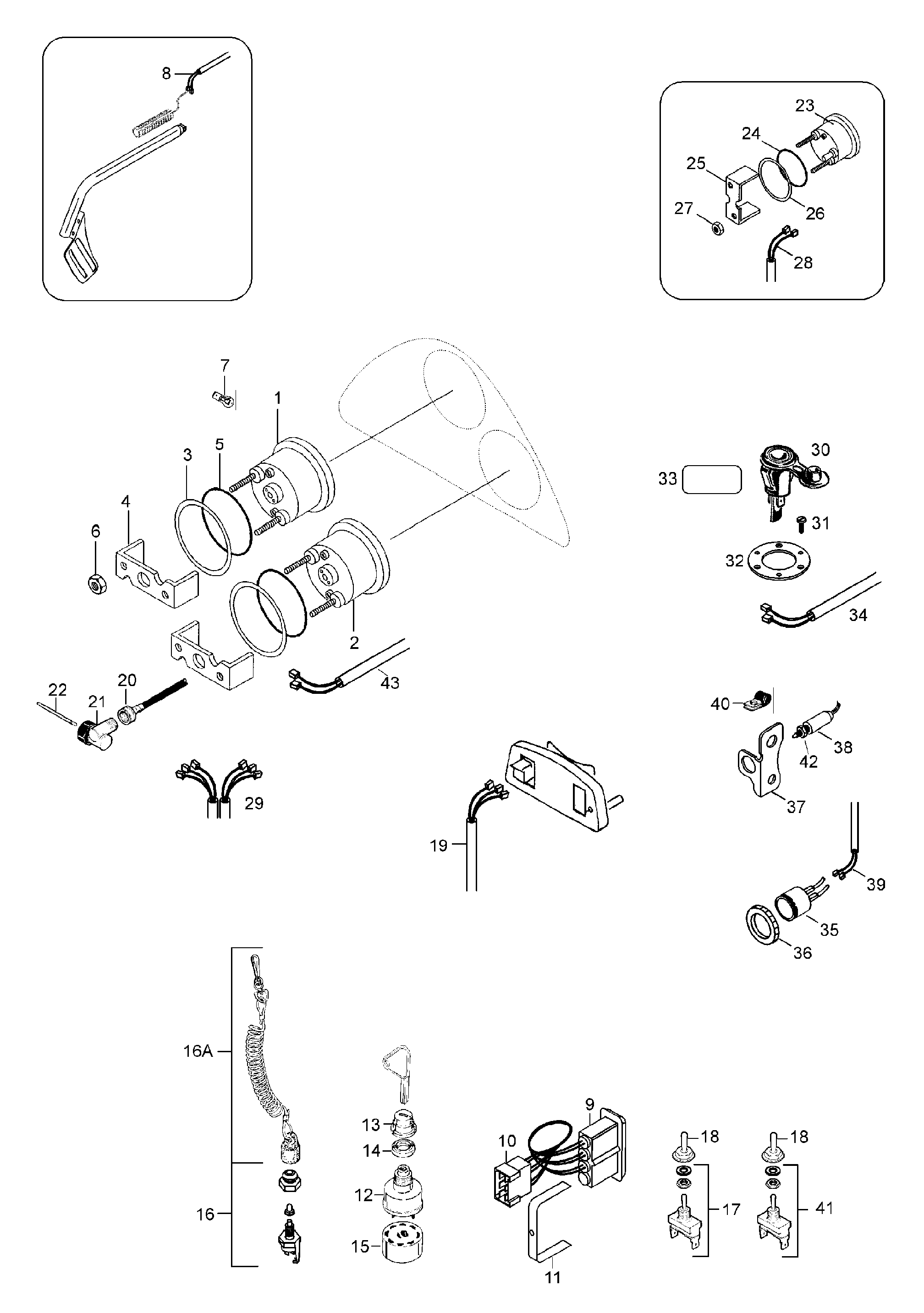

10- Electric для BRP Lynx G-Touring 600 - 2000
-
№АртикулНазвание
-
1515175335 Speedometer whiteSpeedometer white
-
2515175340 Tachometer whiteTachometer white
-
3517258500 WasherWasher
-
4414806500 HolderHolder
-
5414807100 O-ringO-ring
-
633062 Nut elastic M6Nut elastic M6
-
7410504200 Instrumentation bulbInstrumentation bulb
-
85445605 Rear heaters harnessRear heaters harness
-
95441998 Signal lamp assy. Includes items 9 thru 11Signal lamp assy. Includes items 9 thru 11
-
932025 PanelPanel
-
1042036 Connector HousingConnector Housing
-
115442157 Fit plateFit plate
-
1242019 Ignition SwitchIgnition Switch
-
13570013700 Boot switchBoot switch
-
14410112100 Face nutFace nut
-
15572150700 Ignition switch blockIgnition switch block
-
16a4299163 Switch cap assySwitch cap assy
-
16544957 Emercency switch assy. Includes items 16 thru 16Emercency switch assy. Includes items 16 thru 16
-
17410110700 SwitchSwitch
-
18570013900 Rubber cover for switchRubber cover for switch
-
195440053 Wire for rear lampWire for rear lamp
-
205343391 Speedometer cableSpeedometer cable
-
2135113 Drive angle 1:1.2Drive angle 1:1.2
-
2245075 Square pin l=75mmSquare pin l=75mm
-
23515175343 Fuel meterFuel meter
-
24414807200 O-ringO-ring
-
25414806600 HolderHolder
-
26517258600 WasherWasher
-
2733035 Nut M4Nut M4
-
285444739 WireWire
-
295244859 Wire assyWire assy
-
35414792102 Back up alarmBack up alarm
-
36414805101 NutNut
-
375445053 SupportSupport
-
385440643 SwitchSwitch
-
395440056 Wire for alarmWire for alarm
-
405443134 ClampClamp
-
41410107300 SwitchSwitch
-
42732610075 NutNut
-
43549147 Harness assy, speedomHarness assy, speedom
