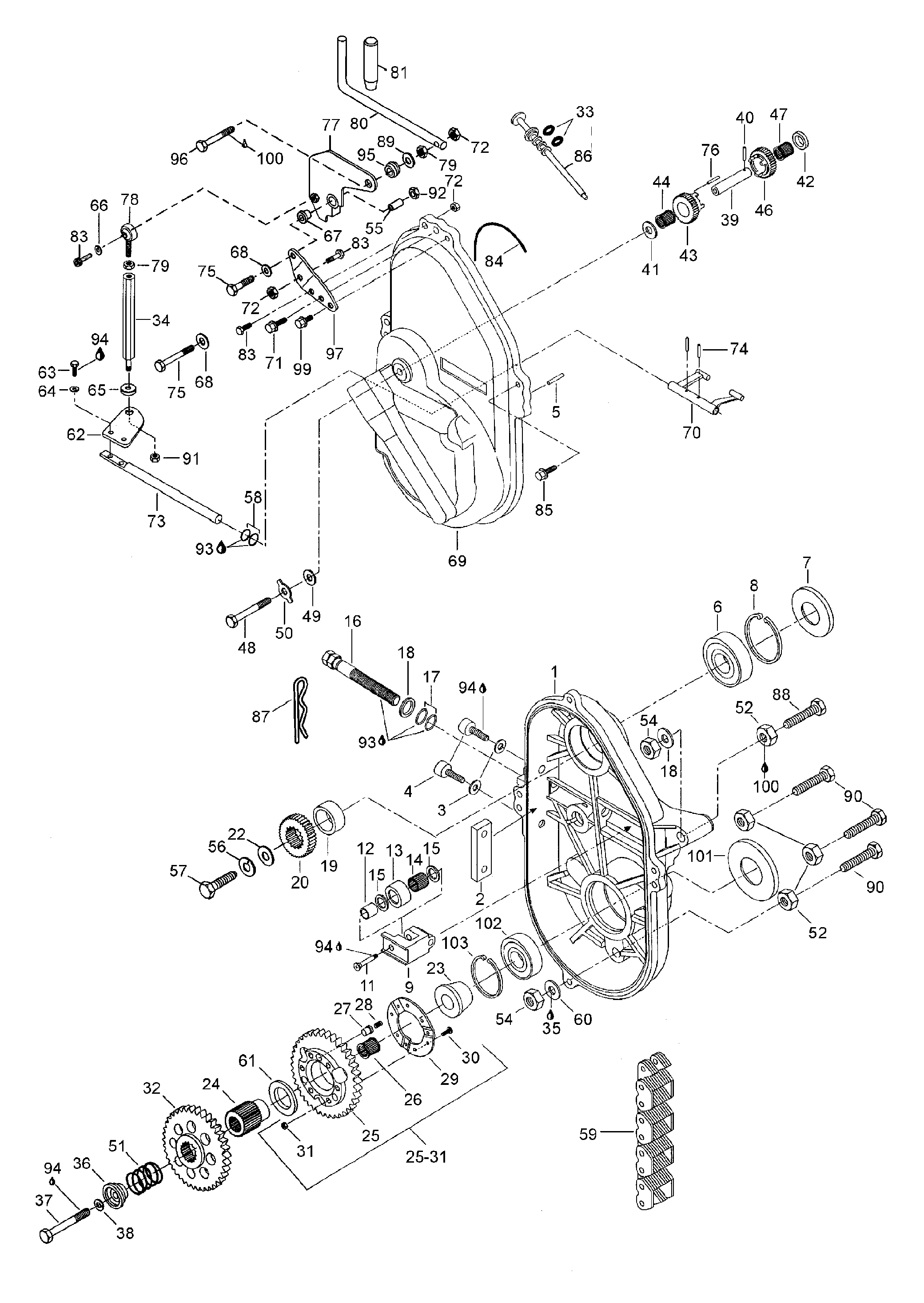

05- Chaincase для BRP Lynx G-Touring 600 - 2000
-
№АртикулНазвание
-
1504151777 ChaincaseChaincase
-
2504082400 Chain sliderChain slider
-
3399904900 Cu-washerCu-washer
-
440029 Screw M6x16Screw M6x16
-
5732620001 Cylinder pinCylinder pin
-
6405404400 Ball bearing 6205Ball bearing 6205
-
7414531200 Oil sealOil seal
-
8371901700 CirclipCirclip
-
9504081000 Chain tensionerChain tensioner
-
11732601144 ScrewScrew
-
12504080200 BushingBushing
-
13414531300 RollerRoller
-
1431050 Needle bearingNeedle bearing
-
15504080300 WasherWasher
-
16732601311 Adjustment screwAdjustment screw
-
17414484400 O-ringO-ring
-
1820005 WasherWasher
-
19504093400 ShimShim
-
20504091000 Sprocket, 23 toothSprocket, 23 tooth
-
2220076 WasherWasher
-
23504076300 Trust bushingTrust bushing
-
24504097700 Coupling shaftCoupling shaft
-
25581096800 Sprocket, 44 tooth. Includes items 25 thru 31Sprocket, 44 tooth. Includes items 25 thru 31
-
26414772600 Needle bearingNeedle bearing
-
27504076800 Drive pinDrive pin
-
28414772700 SpringSpring
-
29504076300 Retaining ringRetaining ring
-
30222052065 Screw M5x20Screw M5x20
-
31228451046 Nut M5Nut M5
-
32504096800 Gear, 56 toothGear, 56 tooth
-
3328402 O-ringO-ring
-
34504098100 Tie rodTie rod
-
35413702700 Loctite 515, 50mlLoctite 515, 50ml
-
36504077100 CapCap
-
3740196 Screw M10x50Screw M10x50
-
3820068 Lock washerLock washer
-
39580590600 Reverse shaft assy. Includes items 39 thru 40Reverse shaft assy. Includes items 39 thru 40
-
39504083100 Reverse shaftReverse shaft
-
40732804003 Spring pinSpring pin
-
41504077300 Trust washerTrust washer
-
42504078700 Trust ringTrust ring
-
43581122200 Sprocket assy. Includes items 43 thru 44Sprocket assy. Includes items 43 thru 44
-
44414805000 Needle bearingNeedle bearing
-
46581096900 Sprocket assy. Includes items 46 thru 47Sprocket assy. Includes items 46 thru 47
-
47414773100 Needle bearingNeedle bearing
-
4840264 Screw M8x90Screw M8x90
-
4920022 WasherWasher
-
50504087700 Lock tabLock tab
-
51504096600 SpringSpring
-
52504083800 SpacerSpacer
-
5433012 Nut elastic M10Nut elastic M10
-
55549964 SleeveSleeve
-
5620072 Lock washerLock washer
-
5740036 Screw M8x20Screw M8x20
-
58414773200 O-ringO-ring
-
59504151830 Drive chain, 72 linksDrive chain, 72 links
-
6020073 Gasket-ringGasket-ring
-
61504094300 WasherWasher
-
62504094602 PlatePlate
-
6340026 Screw M5x12Screw M5x12
-
6420013 Washer lockWasher lock
-
65570045700 Rubber washerRubber washer
-
6620052 SpringwasherSpringwasher
-
6731062 BearingBearing
-
6820004 WasherWasher
-
69504098500 Cover chaincaseCover chaincase
-
70504075800 ForkFork
-
7140364 S.T.screwS.T.screw
-
7233010 Nut elastic M6Nut elastic M6
-
73504142900 ShaftShaft
-
7441007 Spring pinSpring pin
-
7540007 Screw M8x40Screw M8x40
-
76570048600 Alignment rodAlignment rod
-
775343192 PlatePlate
-
78414773400 Ball jointBall joint
-
7933002 Nut M6Nut M6
-
805345093 Reverse Shift BarReverse Shift Bar
-
8128247 KnobKnob
-
8340052 Screw M6x20Screw M6x20
-
84414362300 SealSeal
-
8540340 S. T. screw M6x16S. T. screw M6x16
-
86572092700 Filler capFiller cap
-
87414575600 Hair pinHair pin
-
8840189 Screw M10x65Screw M10x65
-
8920009 WasherWasher
-
9040201 Screw M10x40Screw M10x40
-
9133009 Nut elastic M5Nut elastic M5
-
9233011 Nut elastic M8Nut elastic M8
-
93413706100 Lithium greaseLithium grease
-
94413707400 Loctite 271Loctite 271
-
9528351 GrommetGrommet
-
9640110 Screw M6x35Screw M6x35
-
975444045 Support-pivotSupport-pivot
-
9940332 Screw M6x16Screw M6x16
-
100413703000 Loctite 242Loctite 242
-
101504151925 SealSeal
-
102405403900 BearingBearing
-
103414784900 CirclipCirclip
