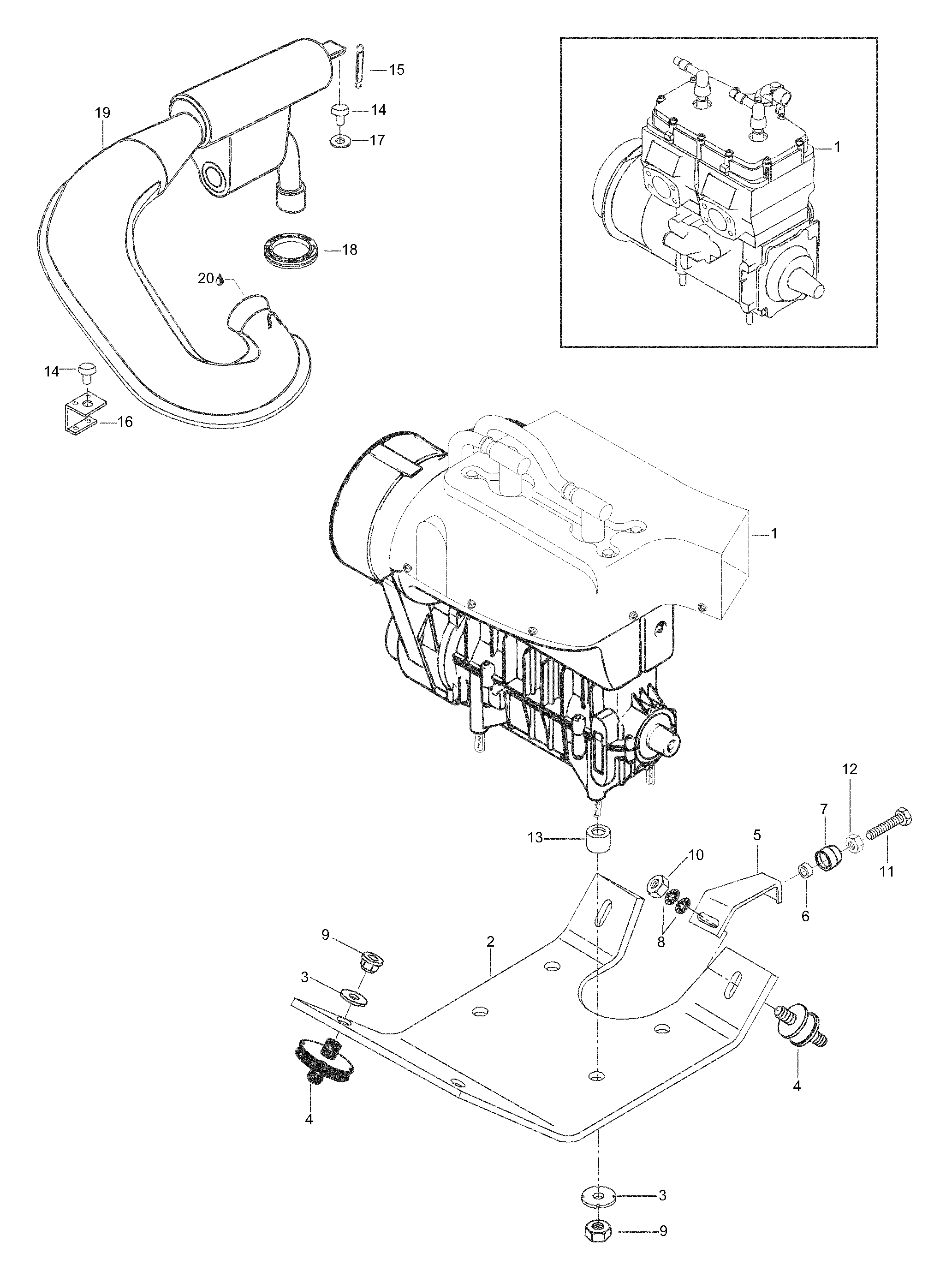

01- Engine Mount Plate/Muffler для BRP Lynx 5900 ST - 2001
-
№АртикулНазвание
-
111000070 > Engine> Engine
-
25345739 Engine supportEngine support
-
3512056700 Lock washerLock washer
-
4570127700 Rubber mountRubber mount
-
5539902 SupportSupport
-
62846014 Rubber washerRubber washer
-
75440091 SleeveSleeve
-
820068 Lock washerLock washer
-
933012 Nut elastic M10Nut elastic M10
-
1033004 Nut M10Nut M10
-
1140121 Screw M8x40Screw M8x40
-
1233003 Nut M8Nut M8
-
135446347 SleeveSleeve
-
14570048700 Rubber-bumberRubber-bumber
-
15420938795 SpringSpring
-
165345893 SuportSuport
-
1720087 ShimShim
-
18570039000 Exhaust washerExhaust washer
-
195145129 Tuned pipeTuned pipe
-
20420297434 Loctite 76710Loctite 76710
